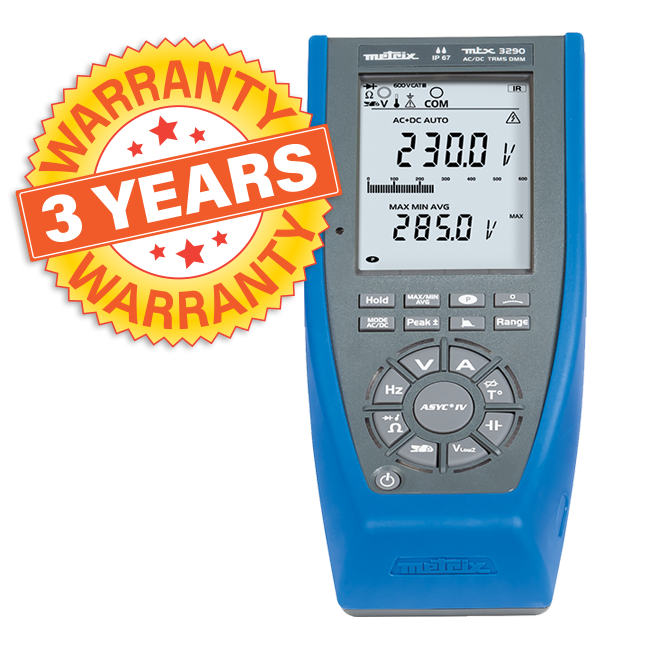

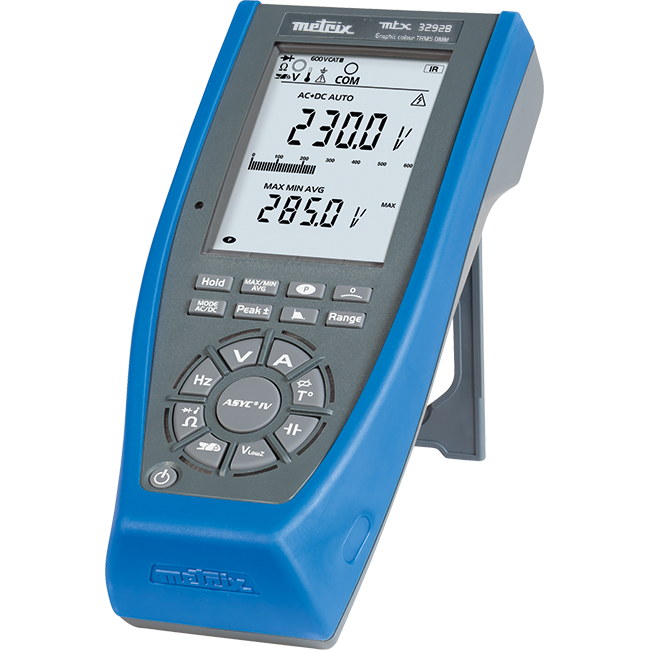

AEMC 2154.01 Digital Multimeter Model MTX 3290
SKU 2154.01
Model Number: AEM215401
Original price
$541.50
-
Original price
$541.50
Original price
$541.50
$541.50
-
$541.50
Current price
$541.50
The Model MTX 3290 is a portable multimeter that measures voltage (AC and DC), resistance, capacitance, temperature, and frequency. The meter performs continuity checks and diode testing (including forward bias voltage), and includes an AC voltmeter function with low input impedance for finding ghost voltages. Other features include monitoring Min, Max, Avg, and Peak measurements. Includes Auto Range mode and Data HOLD function.
The meter is compact, rugged, comfortable to grip, and waterproof to the IP67 standard; and is rated for safety (EN 61010-1, NF EN 61010-2-30 600V CAT III, 300V CAT IV).
| Counts | 6000 |
| Voltage AC/DC/AC+DC | 1000VAC/DC/AC+DC |
| Current AC/DC/AC+DC | 10AAC/DC/AC+DC (15A for 30s max) |
| Bandwidth AC/AC+DC | 20kHz |
| Resistance | 60MΩ |
| Frequency | 60Hz to 600kHz |
| Capacitance | 60mF |
| Continuity | <30Ω±5Ω |
| Temperature (PT100/1000) | -328° to 1472°F (164° to 800°C) |
| Diode Test | Yes |
| VLowZ | Yes |
| ∆REL | Yes |
| MIN/MAX/AVG/PEAK | Yes all functions |
| Clamp Function | Current measurement with pre-set ratios |
| Display | Digital LCD |
| Dimensions (HxWxD) | 7.72 x 3.54 x 1.85" (196 x 90 x 47.1mm) |
| Weight | 1.26 lbs (570g) |
| Power Source | 4 x AA Batteries or NiMH batteries (included) |
| Battery Life | AA:100 hrs, NiMH:80 hrs |
| Operating Temperature | -4° to 158°F (-20° to 70°C) |
| Storage Temperature | -32° to 104°F (-35° to 40°C) |
| Pollution degree | 2 |
| Ingress Protection (IP) | IP67 |
| EMC | NF EN 61326-1 |
| Safety Compliance |
NF EN 61010-1, NF EN 61010-2-30 600V CAT III, 300V CAT IV
|
