AEMC 2153.05 AC Current Probe Model LM103
SKU 2153.05
Model Number: AEM215305
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.

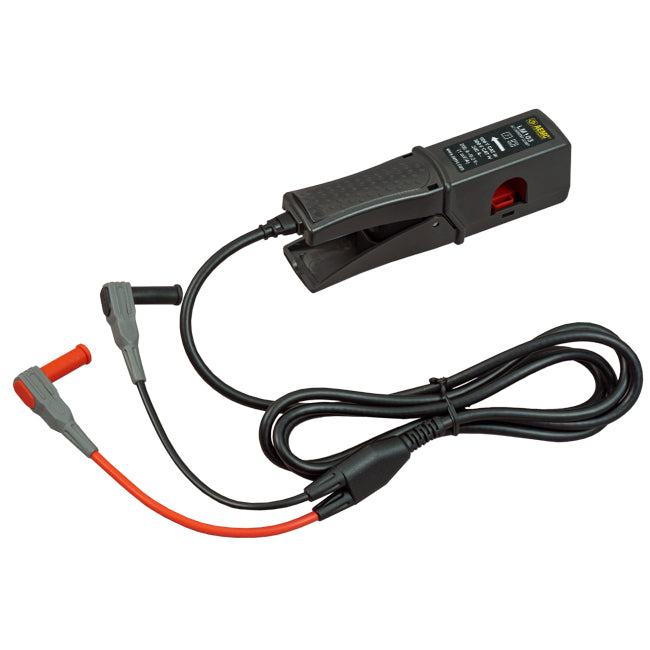

The LM103 is a general-purpose AC current probe designed for Power analyzer, DMM and other measuring instruments with voltage input. It has an output of 1mV per Amp. The LM103 has integral 5 ft (1.5m) leads terminated by safety 4mm banana plugs.
| Maximum Conductor Size | .63" (16mm) |
| Current Range | 200Arms AC |
| Measurement Range | 0.01 to 350A |
| Output Signal | 1mV/A AC (200mV @ 200A) |
| Transformation Ratio | 1000:1 |
| Output | 5 ft (1.5m) lead with 4mm safety banana plug |
| Accuracy 50/60Hz | 1.5% ± 0.02A |
| Frequency Range | 48Hz to 10kHz |
| Phase Shift at 50Hz | 3° max |
| Load Impedance | ≥10KΩ |
| Overload | 350A continuously up to 1kHz |
| Dimensions (HxWxD) | 5.12 x 1.81 x 1.34” (130.4 x 46 x 34mm) |
| Weight | 8.8 oz (250g) |
| Operating Temperature | 14° to +122°F (-10° to +50°C) |
| Storage Temperature | -40° to +176°F (-40° to +80°C) |
| Operating Humidity | 85% RH |
| Pollution Degree | 2 |
| Ingress Protection (lP) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | EN/IEC 61010-2-32, 600V CAT III |
