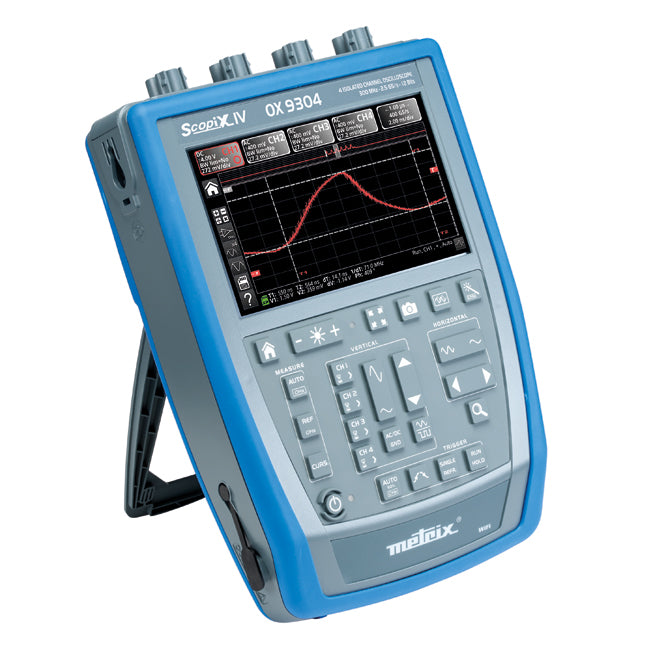

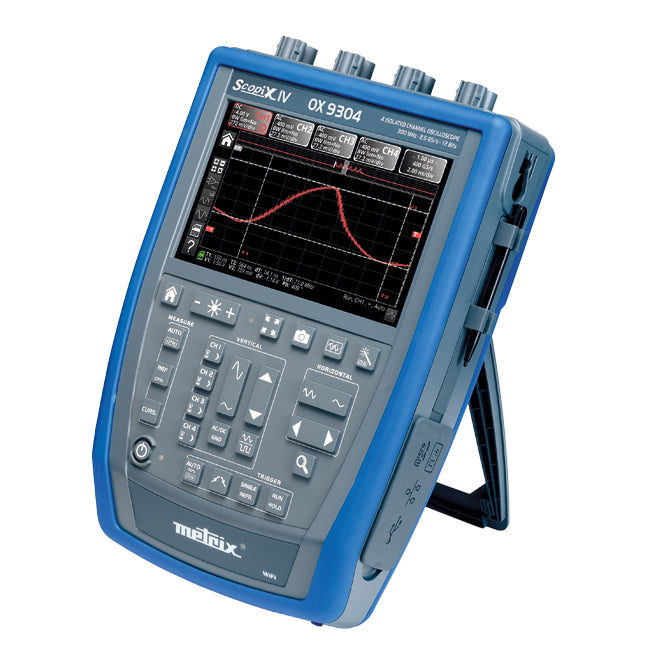

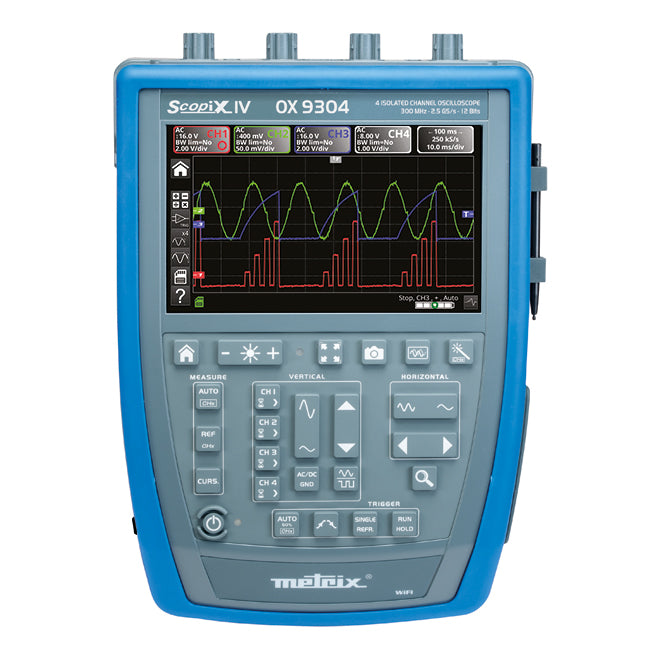

AEMC 2150.34 Hand-held Oscilloscope Model OX 9304 IV
SKU 2150.34
Model Number: AEM215034
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The Model OX 9304 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 300 MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement.
Large touch screen 7-inch color LCD display
Ideal for both laboratory and field use, the Model OX 9304 utilizes the patented system of plug-and-play accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store.
| CHANNELS | |
| Inputs / Bandwidth | Isolated channels |
| Input Impedance | 1 MΩ ± 0.5 %, approx. 12 pF |
| INTERFACE | |
| Screen Specifications | Color 7-inch WVGA TFT LCD touch screen, 800 x 480 pixels |
| Display Mode | Vectors with interpolation - 2500 real acquisition points on screen |
| Traces On Screen | 4 Traces + 4 References (split screen and full screen modes) |
| Front Panel Control | 32 keys |
| Screen Control | Touch screen - ANDROID type icons and graphical commands |
| VERTICAL | |
| Vertical Sensitivity | 16 ranges from 2.5 mV - 200 V/div and up to 156 µV/div om vertical zoom mode (12-bit converter) - Accuracy ± 2 % |
| Max Input Voltage | 600 V CAT III (1000 V per Probix) from (50 to 400) Hz - Probix connectors |
| Vertical Zoom | One click Winzoom system (direct graphical zoom onscreen) x 16 max |
| HORIZONTAL | |
| Time Base Speed | 35 ranges from 1 ns/div. to 200 s/div Accuracy ± (50 ppm + 500 ps) Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | One click Winzoom system (direct graphical zoom onscreen) x 100 max |
| TRIGGER | |
| Mode | Auto, Triggered, One-shot, Auto-level 50 % on all channels |
| Type | Edge, Pulse width (16 ns to 20 s), delay (48 ns to 20s), counting (3 to 16,384 events) Continuous adjustment of Trigger position |
| Coupling | AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64 ns to 15 s |
| Autoset | Complete < 5 s with recognition of channels - Frequency > 30 Hz |
| Cursors | Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph |
| DIGITAL MEMORY | |
| Max. Sampling Rate | 2.5 GS/s in one-shot mode on each channel (100 GS/s max. in ETS mode) 12 bits resolution |
| Memory Depth | 100 kpts per channel and file viewer in the manager |
| Memory Capacity | Internal = 1 GB to store the files Trace, text, configuration, math functions System memory: .pdf print files, .png image files + high-capacity removable microSD-Card: SD 2 GB, SDHC (4 to 32) GB and SDXC > 32 GB |
| GLITCH Mode | Duration ≤ 2 ns – 500,000 Min/Max pairs |
| Display Modes | Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT |
| OTHER FUNCTIONS | |
| FFT Analyzer & Math Functions | FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor |
| Automatic Measurement | Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll |
| Multimeter Mode | 4 channels, 8000 counts + Min/Max/Frequency/relative – TRMS – Time stamp graphic recording in logger mode |
| AC, DC, AC+DC Voltages | 600 mV to 600 VRMS 800 mV to 800 VDC Accuracy 0.5 % Bandwidth 200 kHz |
| Power and PF | Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements |
| Resistance, Temperature, Capacitance, Frequency, and Diode Test on channel 1 only | |
| Acquisition | Duration: 20,000 s Interval: 0.2 s Files: 100,000 measurements |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2, up to 61st, fundamental from (40 to 450) Hz in auto or manual mode |
| Simultaneous measurement | Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
| GENERAL FEATURES | |
| Interface | Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements |
| Batteries | Rechargeable LI-ION 5.8 A•h battery, External charger |
| Charging Time | (98 to 264) VAC (50/60 Hz) 2 hours when OFF |
| Battery life | Approx. 8 hours |
| Dimensions (L x W x H) | (11.5 x 8.29 x 2.6) in (292.5 x 210.6 x 66.2) mm |
| Weight | 4.7 lbs. (2.1 kg) |
| Altitude Operating | 2000 m (6560 ft) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C ≤ 80 % RH |
| Storage Temperature | (-4° to 140)°F (-20 to 60) °C |
| IP Rating | IP54 per IEC 60529 |
| Safety |
IEC/EN 61010-2-30 (1000 V CAT II; 600 V CAT III), IEC 1326-1
|
