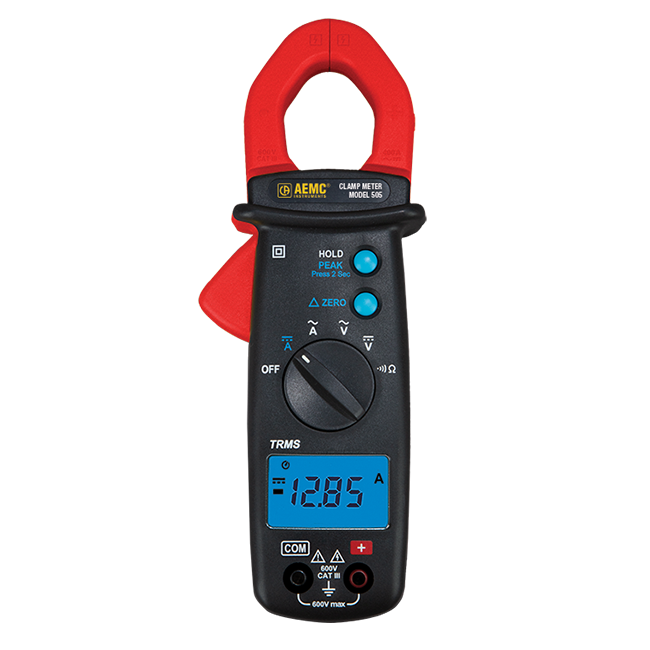

AEMC 2139.82 Clamp-on Meter Model 505
SKU 2139.82
Model Number: AEM213982
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The Clamp-on Meter Model 505 is a general-purpose professional instrument. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 505 is auto-ranging, and measures AC and DC voltage, AC and DC current, resistance, and continuity.
The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 505 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening is 1.1" (28mm).
| ELECTRICAL | |||
| AC Current (Auto-Ranging) | 0.05 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| AC Voltage(Auto-Ranging) | 0.5 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| DC Current (Auto-Ranging) | 0.10 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| DC Voltage(Auto-Ranging) | 0.2 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| Resistance | 0.2 to 600Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Continuity | <35Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Zero Mode / Delta Function | Yes | ||
| Peak Function | Yes | ||
| MECHANICAL | |||
| Dimensions | 7.83 x 2.95 x 1.42" (199 x 75 x 36mm) | ||
| Weight | 8.57 oz. (243g) with batteries | ||
| Jaw Opening | 1.18" (30mm) | ||
| Power Source | 2 x AAA, IEC LR3 (included) | ||
| Battery Life | 40 hours | ||
| ENVIRONMENTAL | |||
| Operating Temperature | +32° to 104°F (0° to +40°C) | ||
| Storage Temperature | +14° to 140°F (-10° to +60°C) | ||
| Operating Humidity | <70% | ||
| Pollution Degeree | 2 | ||
| SAFETY | |||
| Safety Ratings | EN/IEC 61010 to 600V CAT III | ||
