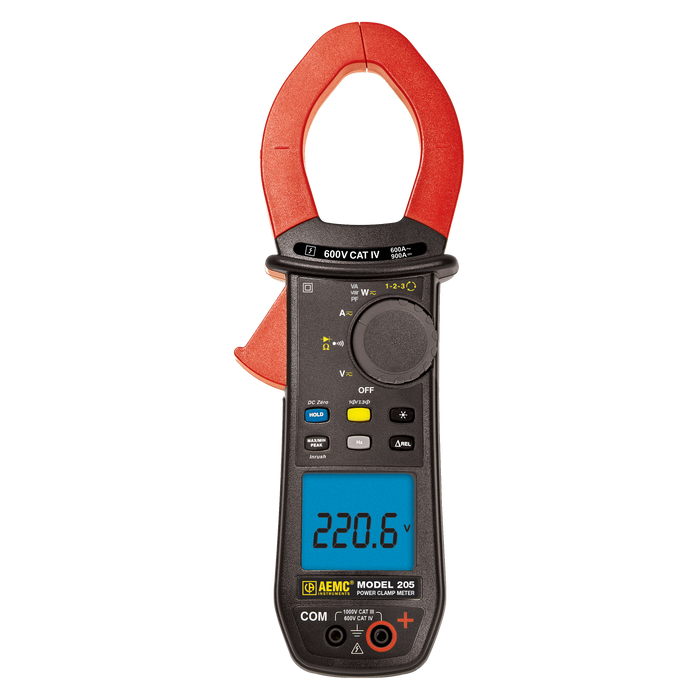

AEMC 2139.40 Power Clamp-on Meter Model 205
SKU 2139.40
Model Number: AEM213940
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The True RMS Clamp-On Meter Model 205 is safety rated at 600 V CAT IV. It measures AC+DC volts and amps, frequency, continuity, resistance, power and Power Factor and phase rotation. It can also perform diode checks. The Delta relative function compares new measurements to a reference value, and the MIN/MAX function tracks high and low values. The Model 205 also tracks peak+ and peak– values. This compact and rugged meter can operate in demanding work environments.
| Voltage Range: | 1000 Vrms AC/DC/AC+DC Auto-ranging |
| Resolution Max: | 0.01 V |
| Current Range: | 600 Arms AC, 900 ADC |
| Resolution Max: | 0.01 A |
| Accuracy V Typical: | 1 % ± 3 cts |
| Accuracy A Typical: | 1 % ± 3 cts |
| InRush: | (6 to 600) AAC, (6 to 900) ADC |
| Power Measurement Max: | 600 kW AC, 900 kW DC |
| Continuity: | Selectable from (0 to 599.9) Ω |
| Resistance: | 60 kΩ |
| Diode Test: | (0 to 3.2) VDC |
| Frequency: | 20 kHz in V, 3 kHz in A |
| Power Factor: | Yes |
| Phase Order: | Yes |
| MIN/MAX/PEAK-/PEAK+ | Yes |
| ∆REL: | Yes |
| Power Source: | 1 x 9 V, IEC LF22 |
| Battery Life: | > 120 hours |
| Dimensions: | (8.7 x 3.0 x 1.65) in (222 x 78 x 42) mm |
| Weight: | 12.0 oz. (340 g) with battery |
| Jaw Opening: | 1.34 in (34 mm) |
| Operating Temperature: | (-4 to +131) °F (-20 to +55) °C |
| Storage Temperature: | (-40 to +158) °F (-40 to +70) °C |
| Operating Humidity: | 90 % up to 131° F (55 °C) |
| Pollution Degree: | 2 |
| Ingress Protection: | IP40 |
| EMC: | EN61326-1 |
| Safety Compliance: | EN/IEC 61010-1: 1000 V CAT III, 600 V CAT IV EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002 |
