AEMC 2137.64 Power & Energy Logger Model PEL 113 (w/LCD, No Sensors) {ETL}
Model Number: AEM213764
Power & Energy Logging Made Simple
Track. Analyze. Optimize.
Uncover Hidden Energy Waste & Take Control of Your Power Usage
The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance. With long-term recording capabilities, seamless installation, multiple connectivity options, built-in alarms and reporting, and advanced DataView® software, the PEL 113 provides accurate, actionable data for smarter energy management. Its compact, magnetic design makes it easy to mount in most electrical panels, making it a powerful solution for a wide range of applications.
- Power generation – Renewable energy, thermal plants
- Industrial facilities – Metallurgy, glass manufacturing, food processing
- Commercial and residential buildings
- Infrastructure and transportation
- Data centers
Applications
- Energy audits
- Electrical diagnostics
- Industrial maintenance
User-Friendly Design

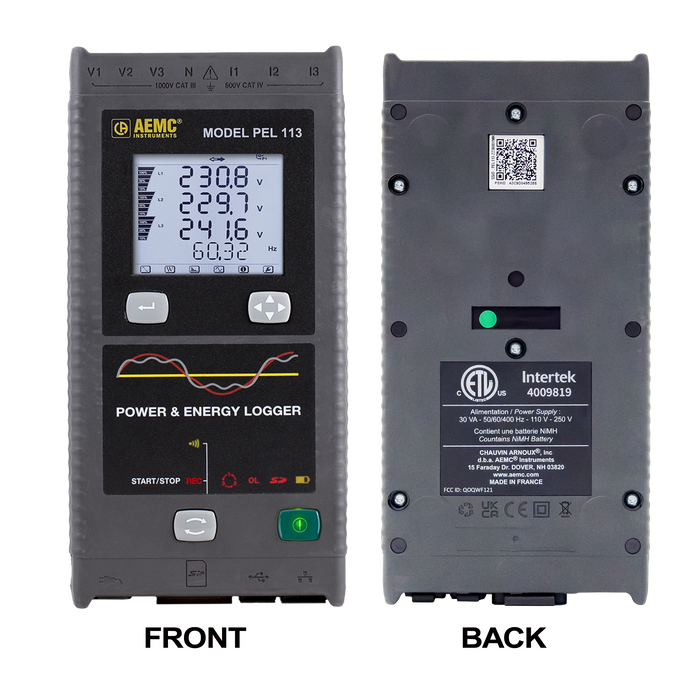

- Compact, magnetic casing for easy placement
- Three voltage inputs and three current inputs

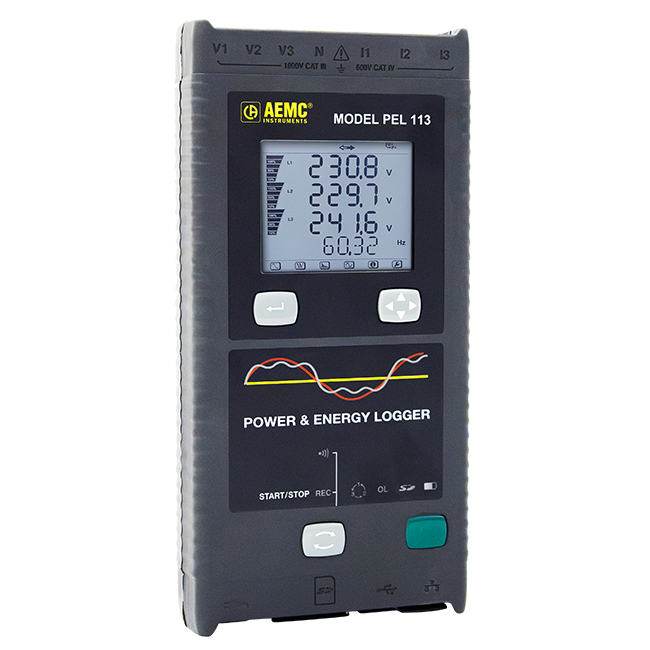

- Quadruple backlit digital display
- Self-powered via the measured circuit
Comprehensive Power Measurements
- AC and DC voltage up to 1000 V
- Current up to 10 kA AC / 5 kA DC (sensor-dependent)
- Active, reactive, and apparent power and energy analysis
- Fundamental, balanced, and unbalanced power measurements
- Motor diagnostics via the Android app
Advanced Analysis Features
- NEW: Real-Time Monitoring & Alerts – Stay informed with instant email reports and configurable alarms (up to 32).
- Breakdown of energy losses
- Phase analysis: Power factor (PF), cos φ, tan Φ
- Crest factor calculation
- Total Harmonic Distortion (THD) for current and voltage
- DC, 50 Hz, 60 Hz, and 400 Hz measurements (ideal for naval and marine applications)
DataView® Software
The DataView® software simplifies setup, monitoring, and analysis:
✔ Configure your PEL device
✔ Verify connections before recording
✔ Download and analyze recorded data
✔ Convert energy consumption into cost estimates in up to 8 pricing tiers
Flexible Network Connectivity
- NEW: Wi-Fi Direct DataViewSync™ – Create a direct wireless connection to a computer (supports up to 5 devices)
- NEW: Ethernet LAN/Wi-Fi (server mode) – Enables remote access from any networked device with DataView® software
- USB – Quick and direct connection
- The PEL Family of Loggers Android Application
Introducing the NEW PEL 110 Series: Power & Energy Loggers
In this introductory video, we walk you through some of the features, capabilities, and key advantages of the PEL 110 Series, and show you how AEMC’s latest innovations can help streamline your energy audits, load studies, and efficiency upgrades.
| TECHNICAL SPECIFICATIONS 1 | ||

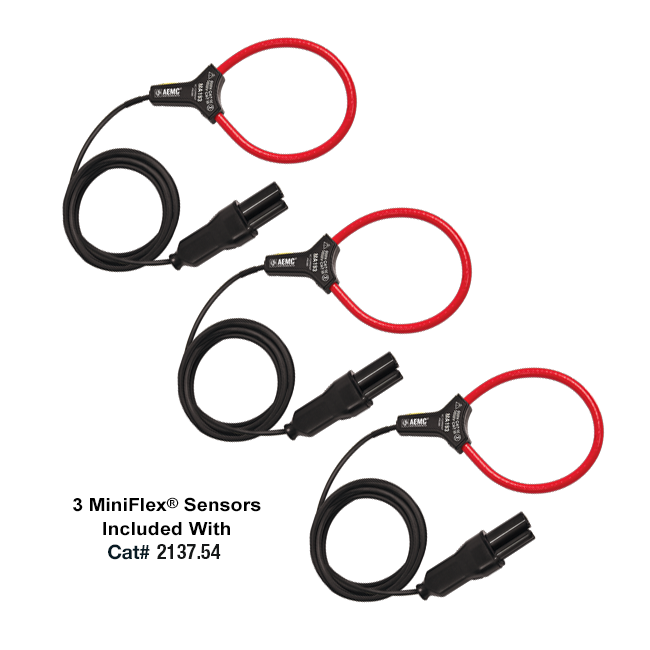

| Catalog # | 2137.64 (No Current Probes/Sensors) | 2137.54 (w/ 196A-24-BK Sensors) |
| GENERAL | ||
| Number of Voltage Inputs | 3 (V1, V2, V3) | |
| Number of Current Inputs | 3 (L1, L2, L3) | |
| Distribution Systems | Single-/Split-/3-phase, DC, etc. (17 choices) | |
| MEASUREMENTS | ||
| Voltage Range - Phase-Neutral (V) | (10 to 1000) V AC/DC 2 | |
| Voltage Range - Phase-Phase (U) | (10 to 1000) V AC 2 | |
| Typical Accuracy - Voltage | ± 0.2% R ± 0.2 V | |
| Current Range AC | 5 mA to 12 kAAC 3 | 200 mA to 12 kAAC |
| Current Range DC | 50 mA to 1300 ADC 3 | |
| Typical Accuracy - Current -(Meter Only) 4 | ± 0.4 % R ± 0.04 % Inom | |
| Network Frequencies | DC/50/60/400 Hz (VFD/PWM not available) | |
| CALCULATED MEASUREMENTS | ||
| Voltage Ratios | up to 650 kV | |
| Current Ratios | up to 25 kA (MN193 probe, 5 A range) | Not available with AmpFlex®/MiniFlex® sensors |
| Power (P, P+ , Punb, Qf, N, D, S) | up to 10 GW/Gvar/GVA 5 | |
| Energy | up to 4 EWh/EVAh/Evarh 5 | |
| Phase | cos φ, tan Φ, PF | |
| Phase Order / Phasor Diagram | Yes / Yes (with DataView® or App for Android) | |
| Harmonics | THD for V, A and harmonics to 50th order for V, A | |
| RECORDING | ||
| Aggregations (Fixed) | 200 ms/1 s trends | |
| Aggregations (Selectable) | (1 to 60) min (12 choices) | |
| Min/Max Values | Yes | |
| Alarms | Up to 32 separate alarms | |
| Emailed Reports | Yes, Alarms and Periodical Min/Max data through DataViewSync™ | |
| Storage Media | SD Card (32 GB Max) | |
| Recording Length | Several weeks to years (Configuration dependent) | |
| OTHER FEATURES | ||

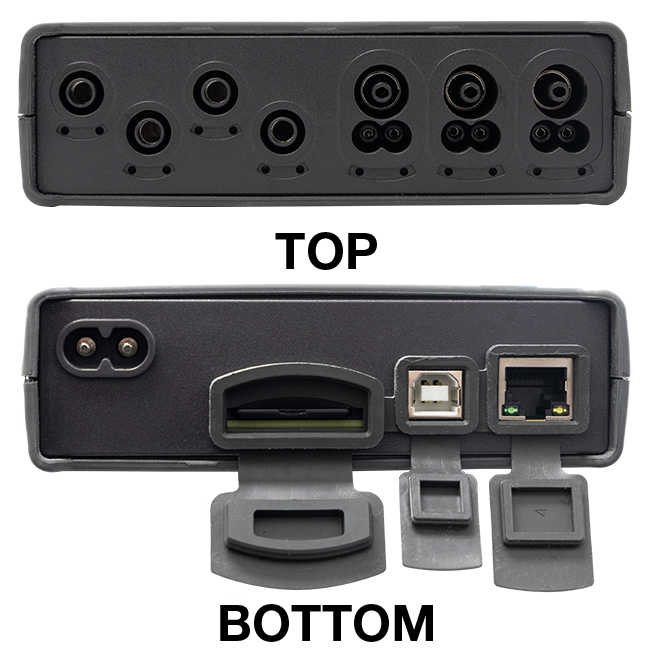

| Communication | USB, Ethernet/Wi-Fi LAN, Ethernet/Wi-Fi Direct, DataViewSync™ | |
| Software | DataView® included, free App for Android™ | |
| NEC Article 220.87 - Load Study Compliant | Yes, DataView® configuration button and report templates | |
| Mounting | Embedded magnets in case | |
| Powered from phase voltage | Phase Power Adapter (Cat. #2137.90) | |
| External Power Supply | 120 / 240 V Line Power Cord | |
| Altitude Operating | Operating: 6560 ft (0 to 2000) m Non-Operating: 32,800 ft (0 to 10,000) m |
|
| Operating Temperature | (32 to 108.5) °F (0 to 42.5) °C from (10 to 85) % RH (32 to 122) °F (0 to 50) °C from (10 to 75) % RH |
|
| Storage Temperature (with battery) |
(-4 to 95) °F (-20 to 35) °C from (0 to 95) % RH (-4 to 158) °F (-20 to 70) °C from (0 to 75) % RH |
|
| SAFETY AND MECHANICAL | ||
| Electrical Safety | 600 V CAT IV / 1000 V CAT III | |
| Ingress Protection | IP54 / IP20 | |
| Dimensions | (10.08 x 4.92 x 1.46) in; (256 x 125 x 37) mm | |
| Weight | < 2.2 lbs (1 kg) | |
| Drop Test | 3.28 ft (1 m) in the most severe position without permanent mechanical damage and functional deterioration |
|
Note 1: Refer to the user manual for complete technical specifications
Note 2: 400 Hz - Phase-Neutral-V (5 to 600) V ; Phase-Phase-U (10 to 600) V
Note 3: Probe dependent
Note 4: Accuracy of connected current probe must be added to this value
Note 5: (G = Giga = 109), (E = Exa = 1018)
Note 6: (PEL 115) IP 67 with included waterproof accessories; (PEL 112/113) IP 54 instrument disconnected (de-energized) / IP 20 instrument connected (energized and operating)
