AEMC 2135.56 Ground Resistance Tester Model 6422 Kit-150ft (Digital, 3-Point) (Cat #2135.55 & Cat #2135.35)
SKU 2135.56
Model Number: AEM213556
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.

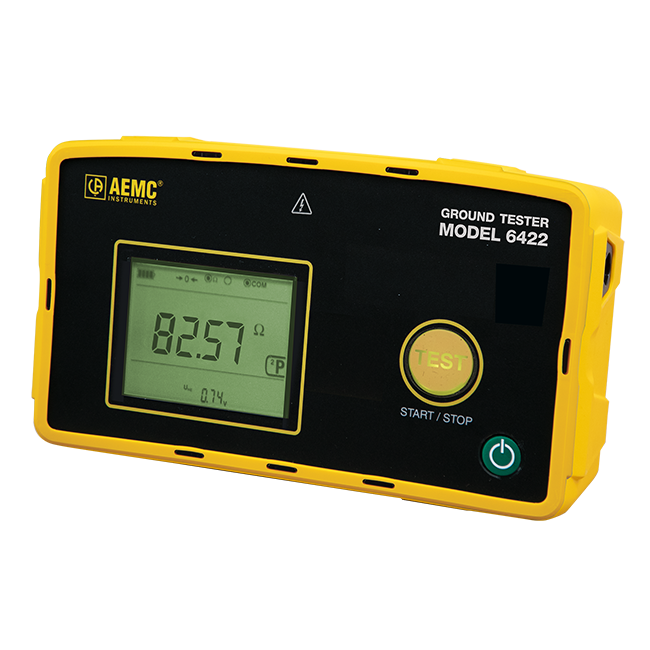

The Digital Ground Resistance Tester Model 6422 performs resistance and 3-pole ground resistance measurements. This direct reading tester is auto-ranging, so it automatically seeks out the optimum measurement range. The Model 6422 is easy to use - simply connect the leads, press to measure, and read. The large LCD also indicates low battery status and overrange.

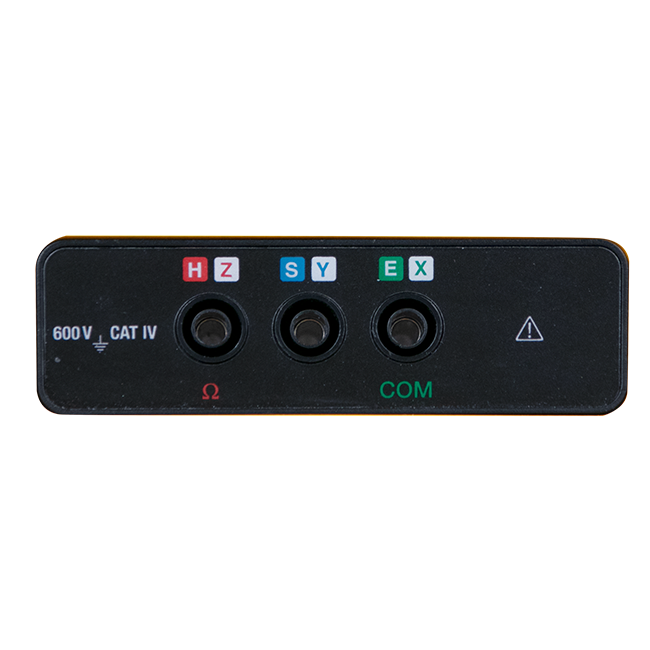

Model 6422 comes with (3) safety color-coded terminals to aid in easy hookup and it is powered by (6) x AA alkaline batteries. The Ground Resistance Tester Model 6422 is also available in a complete Kit (150 ft).
Ground Tester | Ground Rod Tester | Earth Ground Tester | Ground Continuity Tester | Ground Wire Tester
| Ground Resistance (2P Mode) | ||||
| Measurement Range | (0.05-99.99) Ω | (80.0-999.9) Ω | (0.800-9.999) kΩ | (8.00-50.00) kΩ |
| Resolution | 0.01 Ω | 0.1 Ω | 1 Ω | 0 Ω |
| Intrinsic Uncertainty | ± (2 % R + 10 ct) | ± (2 % R + 2 ct) | ±(2 % R + 1 ct) | ±(2 % R + 1 ct) |
| Ground Resistance (3P Mode) | ||||
| Measurement Range | (0.50-99.99) Ω | (80.00-999.99) Ω | (0.800-2.000) kΩ | – |
| Resolution | 0.01 Ω | 0.1 Ω | 1 Ω | – |
| Intrinsic Uncertainty | ± (1 % R + 10 ct) | ± (1 % R + 2 ct) | ± (1 % R + 1 ct) | – |
| Measurement Frequency | 128 Hz or 256 Hz (automatically selected) | |||
| No-load Voltage | ±10 V peak | |||
| Maximum Test Current | 20 mA | |||
| Measurement Mode | One shot or continuous | |||
| GENERAL | ||||
| Display | Backlit LCD | |||
| Measurement Mode | 2P (Ω), 3P (Ω) | |||
| Power Supply | (6) AA Alkaline batteries | |||
| Battery Life | > 2,000 x 3P earth measurements at 100 Ω | |||
| Dimensions | (8.78 x 4.96 x 2.75) in (223 x 126 x 70) mm | |||
| SAFETY | ||||
| Safety Ratings | EMC: IEC 61326-1; IEC 61010-2-030 / 600 V CAT IV | |||
