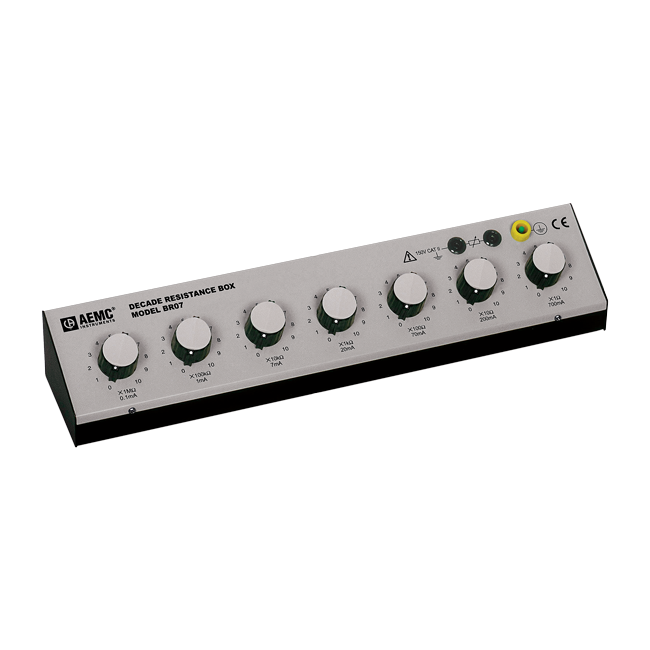

AEMC 2131.25 Resistance Decade Box Model BR07
SKU 2131.25
Model Number: AEM213125
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The Resistance Decade Box Model BR07 is built into a metal bench top box. It is used for testing and calibration of test equipment. The main function of the Model BR07 is to create a resistance with a specific value by using a combination of the rotary decade switches. The Model BR07 has seven decade ranges from 1 to 10MΩ.
The Model BR07 is equipped with Ø 4mm safety terminals for connections. It is designed to EN 61010-1 safety standards. Includes ground jumper lead.
| Decade | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| Resistance | 1 to 10Ω | 10 to 100Ω | 100Ω to 1kΩ | 1 to 10kΩ | 10 to 100kΩ | 100kΩ to 1MΩ | 1 to 10MΩ | |
| Max. Current | 700mA | 200mA | 70mA | 20mA | 7mA | 1mA | 0.1mA | |
| Accuracy | 1% ±10mΩ | |||||||
| Dimensions | 16 x 3.4 x 3” (410 x 86 x 76mm) | |||||||
| Weight | 3 lbs (1.4kg) | |||||||
| Operation Temperature | 14° to 131°F (-10° to 55°C) | |||||||
| Storage Temperature | -40° to 158°F (-40° to 70°C) | |||||||
| Pollution Degree | 2 | |||||||
| Ingress Protection (IP) | IP40 | |||||||
| Safety Compliance | EN 61010-2-03 | |||||||
| Safety Rating | 150V CAT II, 50V CAT III
|
|||||||
