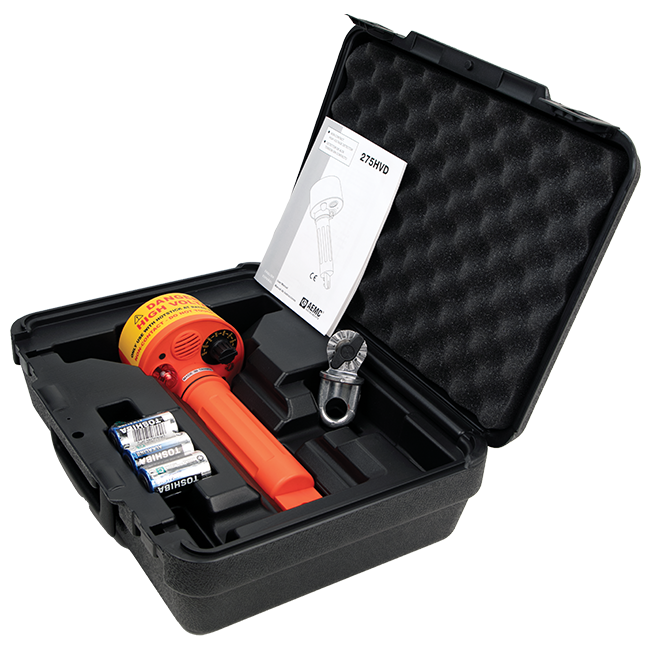

AEMC 2131.12 Non-Contact High Voltage Detector Model 275HVD
SKU 2131.12
Model Number: AEM213112
Original price
$331.55
-
Original price
$331.55
Original price
$331.55
$331.55
-
$331.55
Current price
$331.55

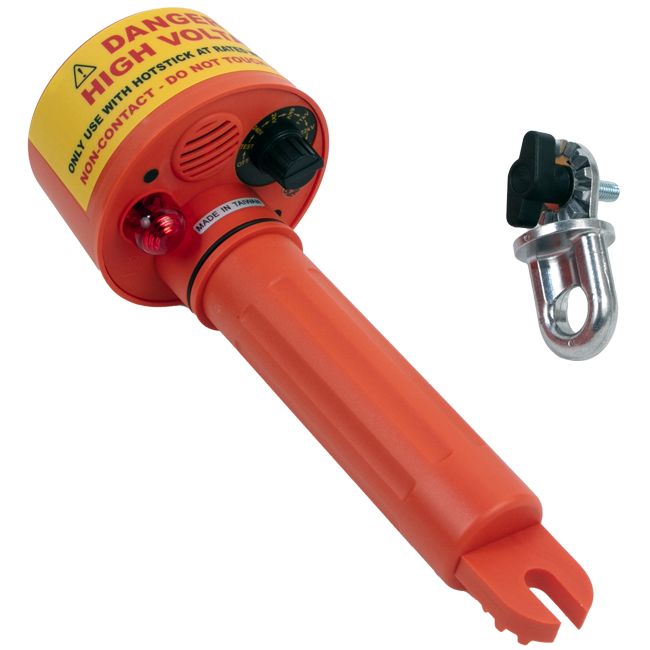

The Model 275HVD is designed to detect the presence of high voltage without physical contact. An 8 position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor, its sensor head picks up the radiated electric field. Once the threshold is reached, the buzzer sounds and a bright red warning light alerts the operator of live conductors.
The Model 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-of-doors. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and annunciators are working properly before use.
| Detection Frequency | (45 to 70) Hz |
| Ranges | 240 V, 2 kV, 6 kV, 11 kV, 22 kV, 33 kV, 132 kV, 275 kV |
| Indicator | Bright red LED and audible buzzer |
| Detection | Non-contact. Selection range is detected at approximately 10 in (25 cm) from the voltage. Greater detection distances can be obtained at lower voltage positions. |
| Self-Test | User selectable |
| Power Source | (3) 1.5 V C cell batteries (included) |
| Weight | 1.3 lbs (590 g) with battery |
| Operation Temperature | (5 to 130) °F (-15 to 55) °C |
| Storage Temperature | (-4 to 150) °F (-20 to 65) °C |
| Relative Humidity | (0 to 93) % at 104 °F (40 °C) |
| Shock Test | IEC 60068-2-29 |
| Vibration Test | EN 61010 clause 8.3 |
| Drop Test | EN 61010 clause 8.4 |
| Impact Test | EN 61010 clause 8.2 |
| Safety Compliance | CE Approved, EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 55011 |
| Ingress Protection | IP65 |
