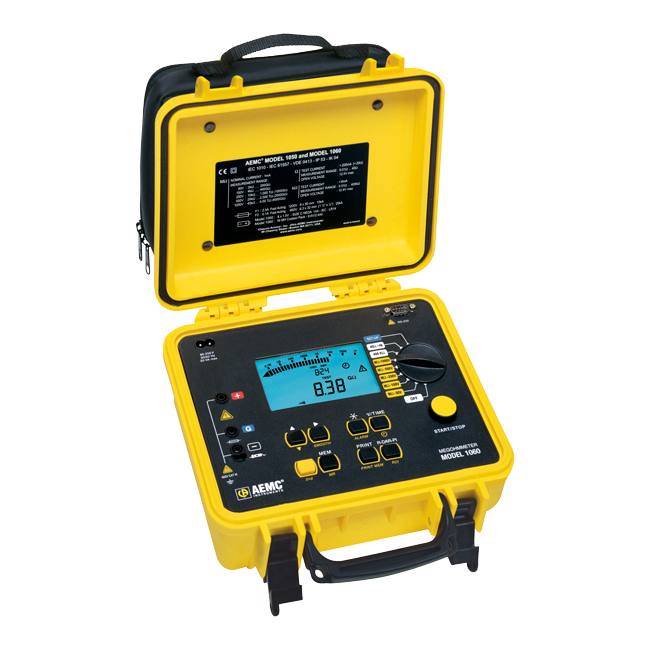

AEMC 2130.03 Megohmmeter Model 1060
SKU 2130.03
Model Number: AEM213003
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The Digital/Analog Megohmmeter Model 1060 is a fully automated 1000V insulation tester. It provides insulation measurements to 4000 GΩ (4 TΩ). Test results include DAR, PI, capacitance, voltage measurement and duration of test.
The True Megohmmeter® Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs. The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.
| AC/DC Voltage Measurement | |
| Range | (1 to 1000) V |
| Accuracy | ±(1 % R + 3 V) |
| Resolution | (1 to 99.9) V: 0.1 V (100 to 1000) V: 1 V |
| Frequency Range | DC and (16 to 65) Hz |
| Input Impedance | 750 kΩ approx |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 50 V: 2 kΩ to 200 GΩ 100 V: 4 kΩ to 400 GΩ 250 V: 10 kΩ to 1 TΩ 500 V: 20 kΩ to 2 TΩ 1000 V: 40 kΩ to 4 TΩ |
| Measurement Accuracy | 2 kΩ to 40 GΩ: ±(5 % R + 3 ct) 40.0 GΩ (4 TΩ): ±(15 % R + 10 ct) |
| Auto Discharge | Discharge time < 2 s/µF from Vtest to 25 V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25 V prior to initialization of test |
| Resistance Measurement | |
| Range | 0.01 Ω to 399.9 kΩ |
| Accuracy | ± (3 % R + 3 ct) |
| Open Circuit Voltage | Approximately 12.4 V DC |
| Short Circuit Current | <6 mA DC |
| Continuity Measurement | |
| Range | (0.01 to 39.99) Ω |
| Accuracy | ± (3 % R + 4ct) with lead compensation |
| Open Circuit Voltage | 12.4 V DC |
| Short Circuit Current | ≥ 200 mA DC from (0.01 to 20.00) Ω |
| General Features | |
| Programmable Alarm | Yes |
| DAR – PI | Yes |
| Ramp Mode | No |
| Step Mode | No |
| Capacitance Measurement | 0.05 nf to 4.999 µf, Accuracy: ± (10 % R + 1 ct) |
| Memory | 128 kB Memory / Stores over 1500 test results |
| Communication | Serial port RS-232 with USB adapter (included) |
| Software | DataView Software (included) |
| Power Supply | Rechargeable NIMH battery pack; external (85 to 256) V, 50/60 Hz |
| Battery Life | ≥ 5000 IR tests at 1000 V into 1 MΩ with a duty cycle of 5 s on and 20 s off; ≥ 4000 R tests of 1 Ω with a duty cycle of 5 s on and 20 s off |
| Charging Time | 4.5 hours approximately |
| Dimensions | (9.45 x 7.28 x 4.33) in (240 x 185 x 110) mm |
| Weight | 7.5 lbs (3.4 kg) |
| Altitude Operating | 2000 m |
| Operating Temperature | (14 to 131)°F (-10 to 55) °C ≤ 80 % RH |
| Storage Temperature | (-40 to 158) °F (-40 to 70) °C ≤ 90 % RH |
| IP Rating | IP 54 |
| Safety Compliance | EN 61010-1, EN 61557, 600 V CAT III, Pollution Degree 2, CE |
