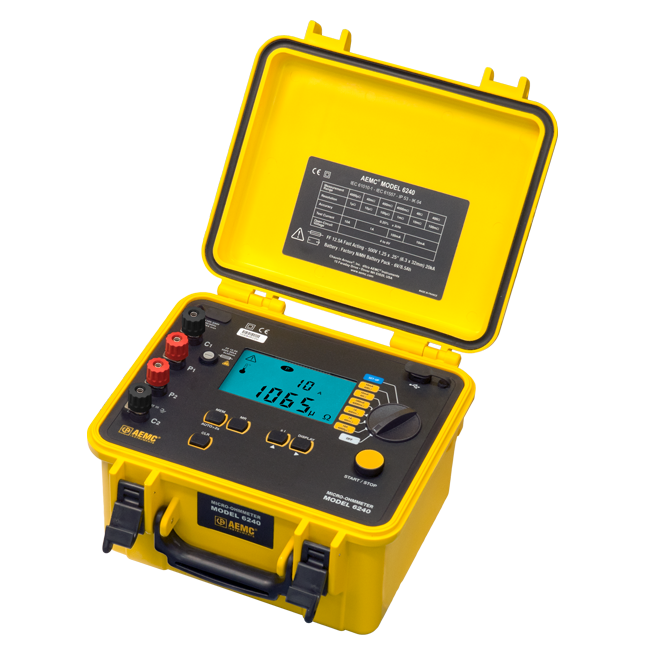

AEMC 2129.80 Micro-Ohmmeter Model 6240
Model Number: AEM212980
The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.
Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.
DataView® (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.
| Specifications | |||||||||||||
| Measurement Range | (5.0 to 3999 ) µΩ | (4.0 to 39.99 ) mΩ | (40.0 to 399.9) mΩ | (400 to 3999) mΩ | (4.0 to 39.99) Ω | (40.0 to 399.9) Ω | |||||||
| Resolution | 1 µΩ | 10 µΩ | 100 µΩ | 1 mΩ | 10 mΩ | 100 mΩ | |||||||
| Accuracy | ±(0.25%R + 2ct) | ||||||||||||
| Measurement Current | 10.2 A ±2% | 1.02 A ±2% | 102 mA ±2% | 10.2 mA ±2% | |||||||||
| Open Voltage | (4 to 6) V | ||||||||||||
| Inductance | 0.5 H Max | ||||||||||||
| Voltage Measurement Indication | |||||||||||||
| Measurement Range | (0.01 to 3.999) mV | (4 to 39.99) mV | (40 to 399.9) mV | (0.4 to 3.999) V | (4 to 4.70) V | ||||||||
| Resolution | 1 µV | 10 µV | 100 µV | 1 mV | 10 mV | ||||||||
| Current Measurement Indication | |||||||||||||
| Measurement Range | (5.0 to 39.99) mA | (40.0 to 399.9) mA | (0.4 to 3.999) A | (4 to 11.00) A | |||||||||
| Resolution | 10 µA | 100 µA | 1 mA | 10 mA | |||||||||
| General Specifications | |||||||||||||
| Storage Memory | 99 tests, supplied with DataView® software for download and reporting | ||||||||||||
| Automatic Storage of Test Results | Yes | ||||||||||||
| Battery | Rechargeable NIMH battery pack 6V, 8.5Ah. | ||||||||||||
| Battery Life | 10 A | ≥ 850 tests with a duty cycle of 5 seconds on and 25s off | |||||||||||
| 1 A | ≥ 3500 tests with a duty cycle of 5 seconds on and 25s off | ||||||||||||
| 100 mA | ≥ 4500 tests with a duty cycle of 5 seconds on and 25s off | ||||||||||||
| 10 mA | ≥ 5000 tests with a duty cycle of 5 seconds on and 25s off | ||||||||||||
| In standby mode | Battery life 4 to 6 months | ||||||||||||
| Dimensions (L x W x H) | (10.70 x 9.76 x 7.18) in (272 x 248 x 182) mm | ||||||||||||
| Weight | 10 lbs (4.5 kg) | ||||||||||||
| Operating Temperature | (14 to 131) °F (-10 to 55) °C & (10 to 85) % RH | ||||||||||||
| Storage Temperature (without battery) | (-40 to 158) °F (-40 to 70) °C & (10 to 90) % RH | ||||||||||||
| Altitude Operating | 2000 m | ||||||||||||
| IP Rating | IP 54 per IEC 60529 cover closed | ||||||||||||
| Safety |
IEC/EN 61010-1 category III 50V, Pollution Degree 2
|
||||||||||||
