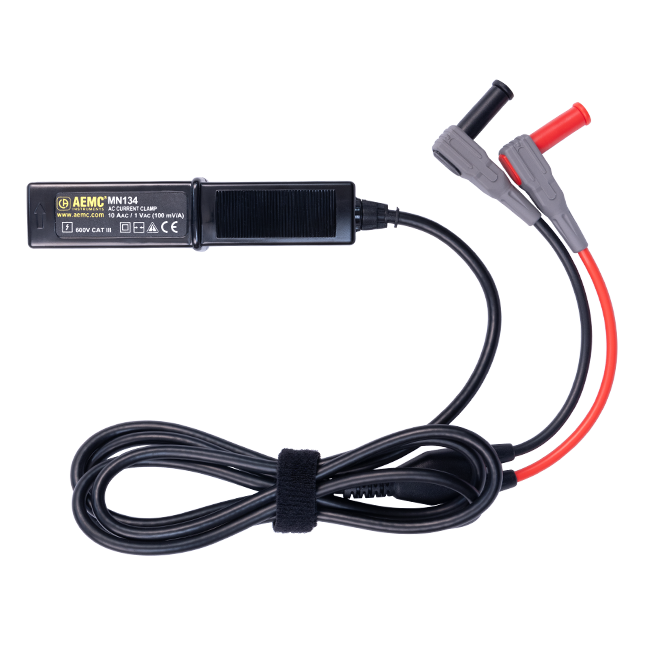

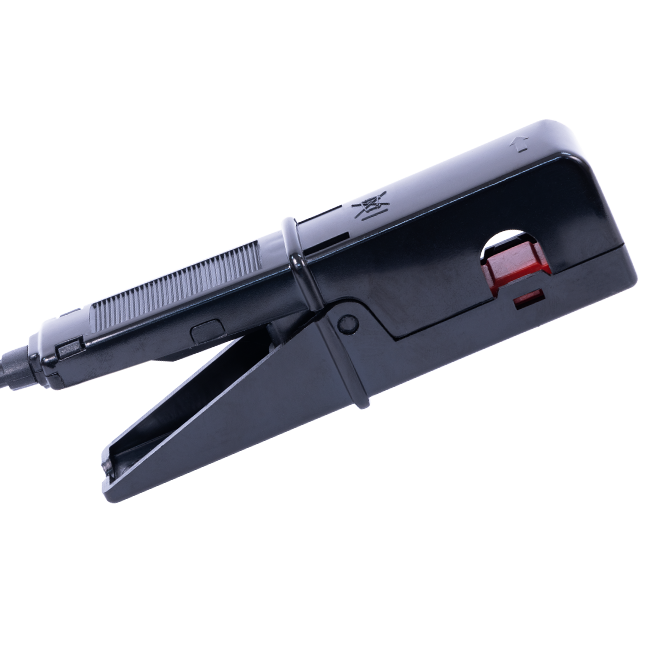

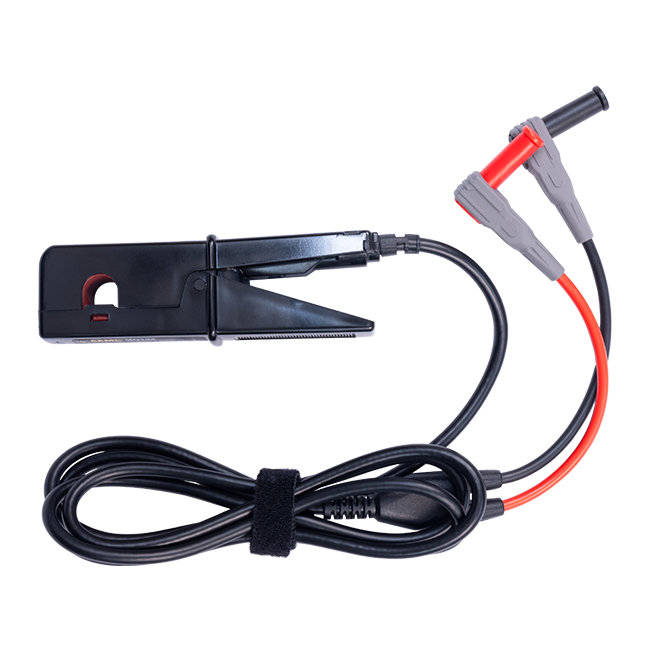

AEMC 2129.22 AC Current Probe Model MN134
Model Number: AEM212922
Replaces Cat #2110.71-Model MN114
The MN134 - your ultimate solution for precision in industry and electrical contracting. This compact AC current probe is meticulously crafted to not only meet but exceed the highest standards in safety and performance. Equipped with a generous measurement range of up to 10 Arms, it is the ideal companion for seamless measurements with DMMs and recorders. The Model MN134 is compatible with any AC multimeter or voltage measurement instrument with an input impedance greater than 1 MΩ. Elevate your accuracy game by pairing this probe with a voltmeter with an accuracy of 0.75% or better. Unleash the power of precision with the AEMC® Model MN134 – where cutting-edge meets compact convenience.
| Maximum Clamping Diameter | 0.39 in (10 mm) |
| Nominal Range | 10 AAC |
| Measurement Range | 1 mA to 10 AAC |
| Output Signal | 100 mVAC / AAC (1 V @ 10 A) |
| Output | Double/reinforced 5 ft (1.5m) lead with 4mm safety banana plug |
| Accuracy 50/60Hz | 1 MΩ load: 2% Reading ± 2 mA |
| Phase Shift at 50/60Hz | < 10° |
| Overload | 20 A continuous |
| Frequency Range | (48 to 500) Hz |
| Load Impedance | 1 MΩ min |
| Open Secondary Voltage | ≤ 30 V |
| Working Voltage | 600 Vrms |
| Common Mode Voltage | 600 Vrms |
| Dimensions (HxWxD) | (5.12 x 1.46 x 0.874) in (130 x 37 x 25) mm |
| Weight | 6.5 oz (180g) |
| Operating Temperature | (14 to 122) °F (-10° to 50) °C |
| Storage Temperature | (-40° to 176) °F (-40° to 80) °C |
| Case Protection | IP40 (IEC 60529) |
| Safety | Electrical: IEC 61010-2-32 600 V AT III, Electromagnetic Compatibility: EN 61326-1 |
