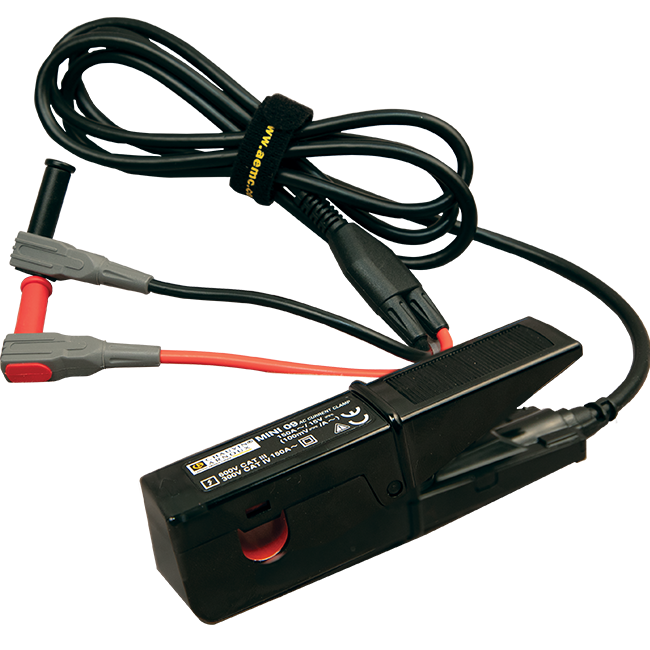

AEMC 2129.21 AC Current Probe Model MN09
SKU 2129.21
Model Number: AEM212921
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The small, compact MINI 09 current clamp is an ideal complement for any multimeter to measure AC currents in low-power tertiary or industrial applications.
Its DC voltage output enables you to overcome the low AC sensitivity of certain measuring instruments.
Main features of the MINI 09 model:
- Rated current: 150 AAC
- Output signal: DC voltage
- Output / input ratio: 100 mVDC / AAC
- Output via lead and isolated Ø 4 mm male plugs
| Maximum Conductor Size | 0.39 in (10 mm) |
| Current Range | 150 AAC |
| Measurement Range | (1 to 150) A |
| Output | 5 ft (1.5 m) lead with 4 mm safety banana plug |
| Transformation Ratio | N/A |
| Output Signal | 100 mVDC/AAC (150 AAC / 15 VDC) |
| Accuracy 50/60Hz | (1 to 5) A, 10 % ±0.6 A (5 to 15) A 6 % ±0.6 A (15 to 40) A 3 % ±0.6 A (40 to 150) A ±4 % |
| Frequency Range | (48 to 65) Hz |
| Phase Shift At 50Hz | N/A |
| Open Secondary Voltage | ≤ 30 V |
| Load Impedance | ≥ 50 KΩ |
| Overload | 170 A for 10 min ON, 30 min OFF |
| Dimensions (H x W x D) | (4.43 x 1.48 x 1.02) in (112.5 x 37.5 x 26) mm |
| Weight | 6.5 oz (180 g) |
| Operating Temperature | (14 to +122) °F (-10 to +50) °C |
| Storage Temperature | (-40 to +176) °F ( -40 to +80) °C |
| Operating Humidity | <85 % RH |
| Pollution Degree | 2 |
| Ingress Protection (Ip) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | EN/IEC 61010-032 600V CAT III, 300 V CAT IV Pollution Degree 2
|
