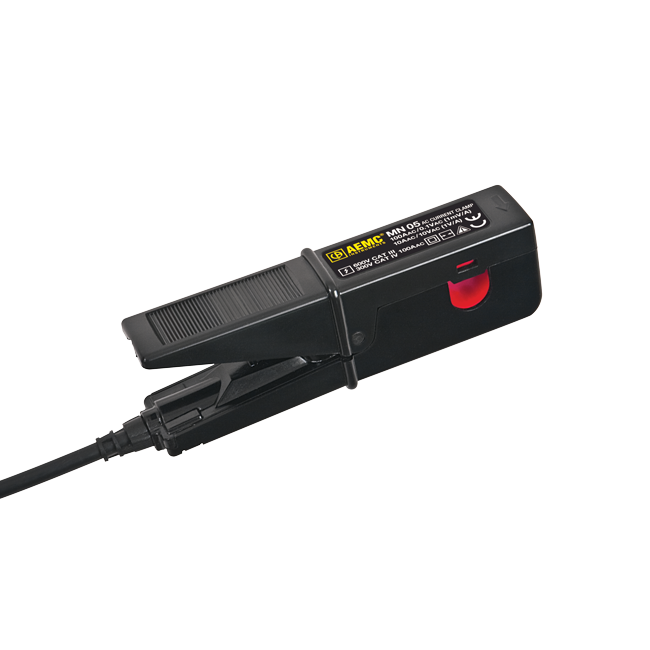

AEMC 2129.19 AC Current Probe Model MN05
SKU 2129.19
Model Number: AEM212919
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
Small and compact, the AC Current Probe Model MN05 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
With its two ranges, it offers excellent resolution for measuring AC intensities from 5mA to 100A.
(100A, 1mV/A & 10A, 1mV/mA, Lead)
| Maximum Conductor Size | 0.39" (10mm) |
| Current Range | 10A & 100Arms AC |
| Measurement Range | 5mA to 10A &1A to 100A |
| Output | 5ft (1.5m) lead with 4mm safety banana plug |
| Transformation Ratio | N/A |
| Output Signal | 100AAC/0.1VAC (1mV/A, 10AAC/10VAC (1V/A) |
| Accuracy 50/60Hz | 3% R ± 0.15mA & 2% R ± 50mA |
| Frequency Range | 48 to 500Hz |
| Phase Shift At 50Hz | N/A |
| Open Secondary Voltage | N/A |
| Load Impedance | 1MΩ |
| Overload | 150A Permanent |
| Dimensions (H x W x D) | 4.43 x 1.48 x 1.02” (112.5 x 37.5 x 26 mm) |
| Weight With 24” (610mm) Sensor | 6.5 oz (180g) |
| Operating Temperature | 14° to +122°F (-10° to +50°C) |
| Storage Temperature | -40° to +176°F (-40° to +80°C) |
| Operating Humidity | 90% RH |
| Pollution Degree | 2 |
| Ingress Protection (Ip) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance |
EN/IEC 61010-1 600V CAT III,
|
