AEMC 2126.52 Megohmmeter Model 6503
SKU 2126.52
Model Number: AEM212652
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
Replacement for Cat #2126.51

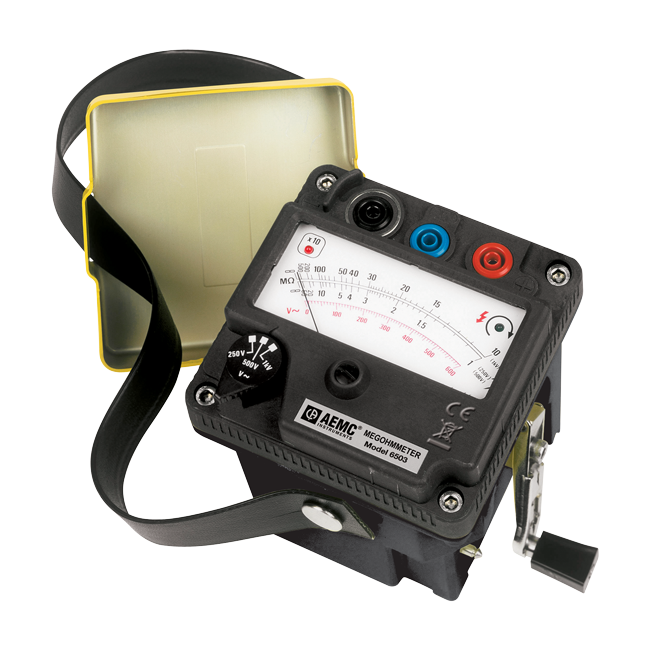

The Megohmmeter Model 6503 is a compact, self-contained, hand-cranked True Megohmmeter®. This practical and dependable instrument is designed for a broad range of plant and field service applications, such as acceptance testing and preventive maintenance of wiring, cables, switchgear and motors. The easy hand-cranked operation provides a steady, DC voltage output across the entire range for consistently reliable readings. The Model 6503 has three test voltages for insulation resistance testing: 250V, 500V and 1000V. Test voltages are generated in full across the entire measurement range.
| AC Voltage Measurement | |
| Range | 0 to 600VAC |
| Accuracy | ±3% of Scale |
| Frequency Range | 45 to 450Hz |
| Input Impedance | 100kΩ (approx) |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 250V: 1 to 11MΩ; 11 to 500MΩ 500V: 1 to 11MΩ; 11 to 500MΩ 1000V: 10 to 110MΩ; 110 to 5000MΩ |
| Measurement Accuracy | 2.5% of Scale Length |
| Short Circuit Current | 5mA (max) |
| Auto Discharge | 8s/µF |
| Features | |
| Power Supply | Hand-cranked, test voltage reached at approx 140rpm |
| Dimensions | 4.7 x 4.4 x 5.3” (120 x 111 x 135mm) with lid |
| Weight | 2.5 lb (1.1kg) |
| Operating Temperature | 14° to +113°F (-10° to +45°C); 75% RH |
| Storage Temperature | -4° to +176°F (-20° to +80°C); 90% |
| IP Rating | IP 54 with lid; IP 52 without lid |
| Safety Compliance | EN 61010-1, 600V CAT II, 300V CAT III, Pollution Degree 2
|
