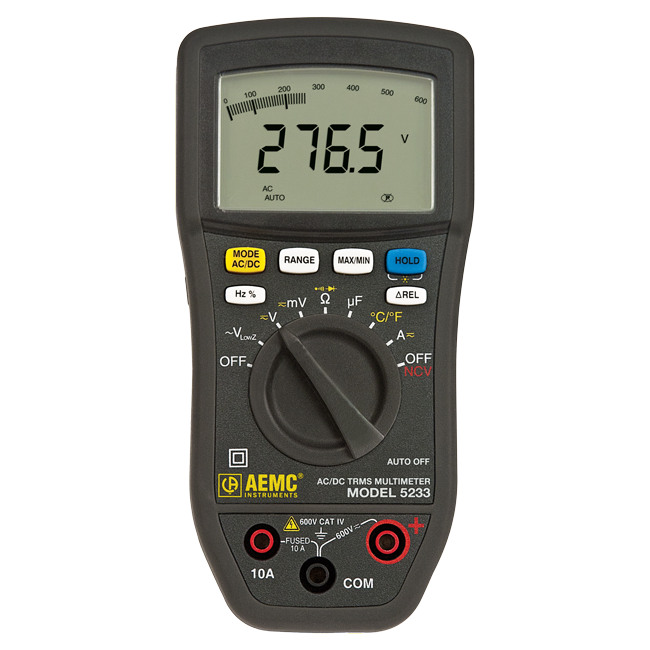

AEMC 2125.65 Digital Multimeter Model 5233 (TRMS, 6000-cts, V, A, AC/DC, Cap, Ohm, T, NCV)
Model Number: AEM212565
The Model 5233 is a rugged, economical TRMS digital multimeter with a function for non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010, 600V CAT IV. The Multimeter Model 5233 provides a Volt, Ohm, Continuity, Diode, Capacitance, Frequency, Duty Cycle and Ammeter function, as well as an AC voltmeter with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It can measure up to 10 Amps directly and can measure temperature in both °C or °F using K-type thermocouples.
The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.
The Model 5233 is ideal for electrical installers, electricians and heating or air-conditioning specialists.
| Counts | 6000 | |
| Voltage AC/DC | 1000VAC/600VDC | |
| Current AC/DC | 10AAC/DC (15A for 60s max) | |
| Bandwidth AC | 1kHz | |
| Resistance | 60MΩ | |
| Frequency | 3kHz | |
| Capacitance | 1mF | |
| Continuity | <20Ω+3Ω | |
| Non-Contact Voltage | >90V | |
| Temperature (K-type TC) | -4° to 1400°F (20° to 760°C) | |
| Diode Test | Yes | |
| VLowZ | Yes | |
| Duty Cycle | Yes | |
| ∆REL | Yes | |
| MIN/MAX/AVG/PEAK | MIN/MAX | |
| Display | Digital with 61-segment analog bargraph and backlighting | |
| Dimensions (HxWxD) | 6.1 x 2.95 x 2.17" (155 x 75 x 55mm) | |
| Weight | 11oz (320g) | |
| Power Source | 9V alkaline battery | |
| Battery Life | >100 hours | |
| Operating Temperature | -4° to 158°F (-20° to 70°C) | |
| Storage Temperature | -32° to 122°F (-35° to 50°C) | |
| Pollution Degree | 2 | |
| Ingress Protection (IP) | IP54 | |
| EMC | EN 61326/A2:2001 | |
| Safety Compliance |
IEC/EN 61010-1, 1000V CAT III, 600V CAT IV
|
|
