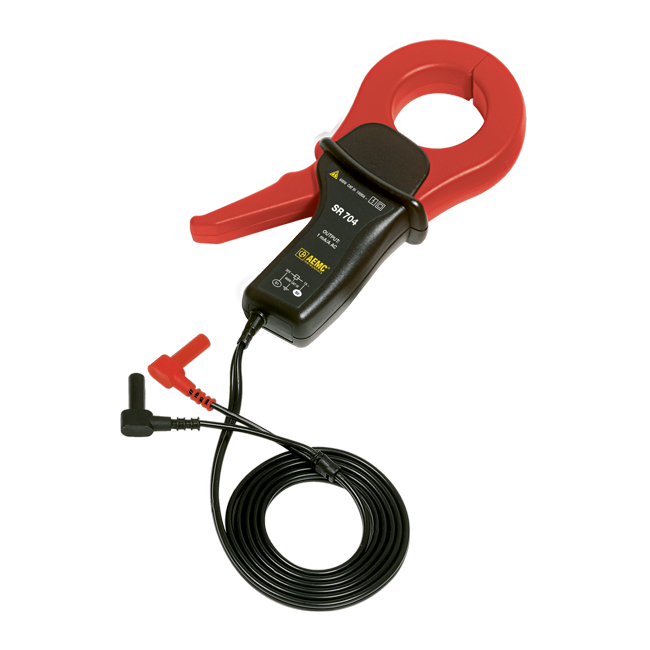

AEMC 2116.30 AC Current Probe Model SR704
SKU 2116.30
Model Number: AEM211630
Original price
$368.60
-
Original price
$368.60
Original price
$368.60
$368.60
-
$368.60
Current price
$368.60
The SR704 is a general purpose 1000 AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1 mA per amp measured in the jaw. The SR704 has an integral 5 ft (1.5 m) lead terminated by shrouded banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.
| Maximum Conductor Size | 2.05 in (52 mm) |
| Current Range | 1000 Arms AC |
| Measurement Range | 1 mA to 1200 AAC |
| Output | 5 ft (1.5 m) lead with safety 4 mm banana plug |
| Transformation Ratio | 1000:1 |
| Output Signal | 1 mA/A AC (1 A @ 1000 A) |
| Accuracy 50/60Hz | 0.3 % @ 1000 A |
| Frequency Range | 30 Hz to 5 kHz |
| Phase Shift at 50Hz | 0.7 ° @ 1000 A |
| Open Secondary Voltage | Limited to < 25 V |
| Load Impedance | 5 Ω max |
| Overload | 1200 A for 15 min ON, 30 min OFF |
| Dimensions (H x W x D) | (4.37 x 8.50 x 1.77) in (111 x 216 x 45) mm |
| Weight | 1.21 lbs (550 g) |
| Operating Temperature | (14 to 122) °F (-10 to 50) °C |
| Storage Temperature | (-4 to 158) °F (-20 to 70) °C |
| Operating Humidity | 90 % RH |
| Pollution Degree | 2 |
| Ingress Protection (IP) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance |
EN/IEC 61010-1 600 V CAT III,
|
