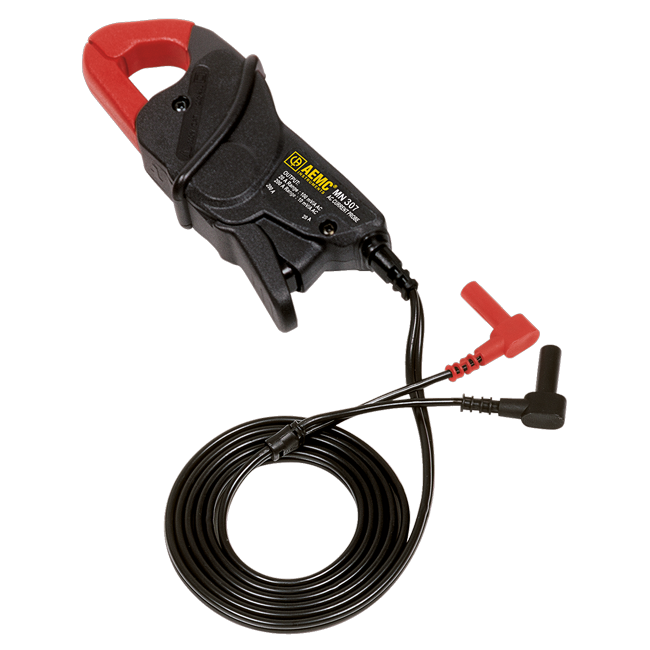

AEMC 2116.23 AC Current Probe Model MN307
SKU 2116.23
Model Number: AEM211623
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The MN307 is designed for low AC current measurements up to 10A, such as secondary of CTs or even small motors and appliances. It offers a higher voltage output of 100mV per Amp (1VAC @ 10AAC) for enhanced sensitivity at lower levels, while offering a high crest factor at full range. The MN307 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
| Maximum Conductor Size | 0.78" (20mm), bus bar 20x5mm |
| Current Range | 10Arms AC |
| Measurement Range | 0.1 to 12A |
| Output | 5 ft (1.5m) lead with 4mm safety banana plug |
| Transformation Ratio | N/A |
| Output Signal | 100mV/AAC (1V @ 10A) |
| Accuracy 50/60Hz | 1% @ 10A |
| Frequency Range | 40Hz to 10KHz |
| Phase Shift At 50Hz | 2.5° @ 10A |
| Open Secondary Voltage | N/A |
| Load Impedance | 1MΩ |
| Overload | 20A continuous |
| Dimensions (H x W x D) | 5.47 x 2.00 x 1.18” (139 x 51 x 30mm) |
| Weight | 6.3 oz (180g) |
| Operating Temperature | 14° to +131°F (-10 to +55°C) |
| Storage Temperature | -40° to +158°F (-40° to +70°C) |
| Operating Humidity | 90% RH |
| Ingress Protection (Ip) | IP40 |
| Pollution Degree | 2 |
| EMC | EN 61326-1 |
| Safety Compliance |
EN/IEC 61010-1 600V CAT III,
|
