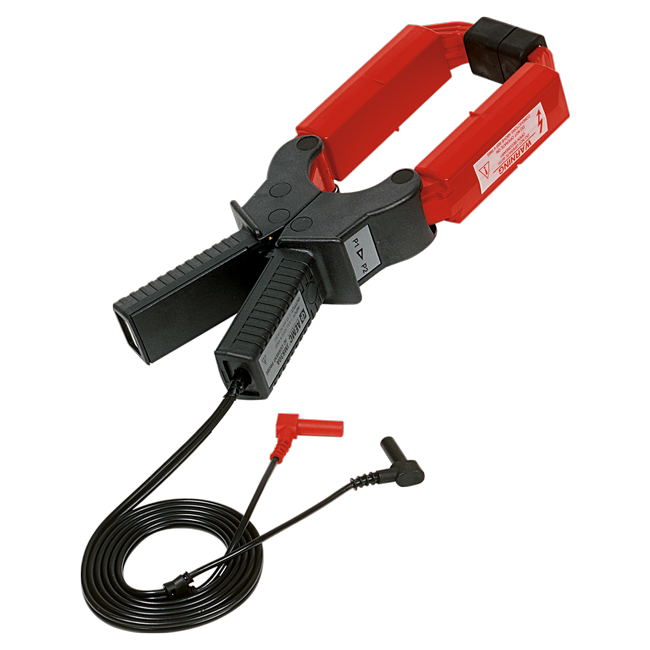

AEMC 2110.80 AC Current Probe Model JM810A
SKU 2110.80
Model Number: AEM211080
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The JM810A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC. The "squared" jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction.
| Maximum Conductor Size | Cable: 2.52" (64mm) Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm) |
| Current Range | 2000AAC |
| Measurement Range | 1 to 2000AAC |
| Output Signal | 1mAAC / AAC (2A @ 2000A) |
| Transformation Ratio | 2000:2 |
| Output | 5 ft (1.5m) lead with 4mm safety banana plug |
| Accuracy 50/60Hz | 0.5% @ 2000A |
| Frequency Range | 30Hz to 5kHz |
| Phase Shift | <0.5° (at maximum rating) |
| Load Impedance | ≤1Ω |
| Overload | 2400A for 10 min |
| Operating Temperature | +14° to +122°F (-10° to +55°C) |
| Storage Temperature | -40° to +158°F (-40° to +70°C) |
| Dimensions (HxWxD) | 4.72 x 12.40 x 1.89” (120 x 315 x 48mm) |
| Weight | 2.65 lbs (1200g) |
| Rating | UL 94 V0 (handles), ABS UL 94 V2 (jaws) |
| Ingress Protection | IP20 |
| Safety Compliance |
IEC 61010-2-32, 600V max
|
