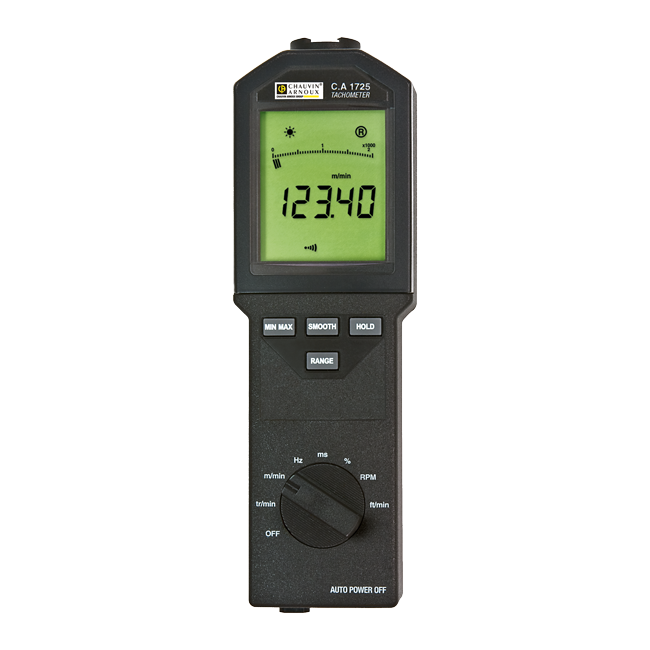

AEMC 1748.10 Tachometer Model CA1725
SKU 1748.10
Model Number: AEM174810
Original price
$560.50
-
Original price
$560.50
Original price
$560.50
$560.50
-
$560.50
Current price
$560.50

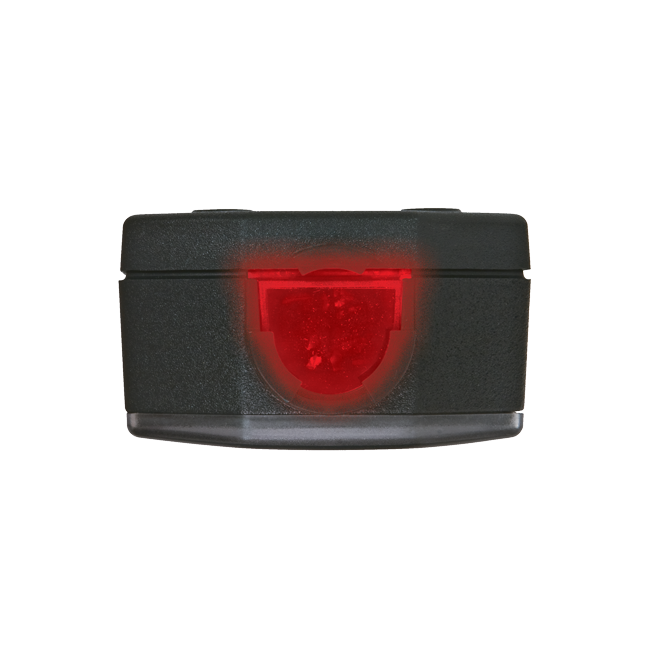

This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested. The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.
For traditional measurement with contact, a mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.
| Rotational Speed Function | |
| Range | (6 to 100,000) RPM |
| Resolution | (0.0006 to 6) RPM depending on range |
| Accuracy | 1 x 10-4 of reading ± 6 counts |
| Linear Speed Function | |
| Range | (0.1 to 10,000) m / min or ft / min depending on range |
| Resolution | (0.0006 to 6) m / min or ft / min depending on range |
| Accuracy | 1x10-4 of reading ± 1 increment |
| Frequency Function | |
| Range | (0.1 to 10,000) Hz |
| Resolution | (0.0004 to 0.4) Hz depending on range |
| Accuracy | 4x10-5 of reading ± 4 counts |
| Period Function | |
| Range | (0.1 to 10,000) ms |
| Resolution | (0.0003 to 0.03) ms depending on range |
| Accuracy | 1x10-4 of reading ± 5 counts |
| Duty Cycle Function | |
| Range | (10 to 10,000) % |
| Resolution | (0.1 to 1) % depending on range |
| Accuracy | 0.1 % of scale (0.2 to 50) Hz 0.2 % of scale (50 to 125) Hz 1 % of scale otherwise |
| Optical Sensor | |
| Measuring Distance | (0.4 to 19.7) in (1 to 50) cm |
| Measurement Angle | ±15 ° in relation to the perpendicular of reflective surface |
| General Features | |
| Accessories (Not Included) | Mechanical adapter, calibrated wheel, conical end fitting, cylindrical end fitting. |
| Power Supply | 9 V alkaline battery (included) |
| Battery Life | 250 x 5 min measurements with optical sensor; 600 x 5 min measurements with external sensor |
| Operating Temperature | (32 to 131) °F (0 to 55) °C @ 90 % RH |
| Storage Temperature | (-4 to 158) °F (-20 to 70) °C @ 95% RH |
| Dimensions | (8.5 x 2.83 x 1.85) in (216 x 72 x 47) mm |
| Weight | 8.8 oz (250 g) |
| Ingress Protection | IP51 |
| Safety Compliance |
IEC 61010-1
|
