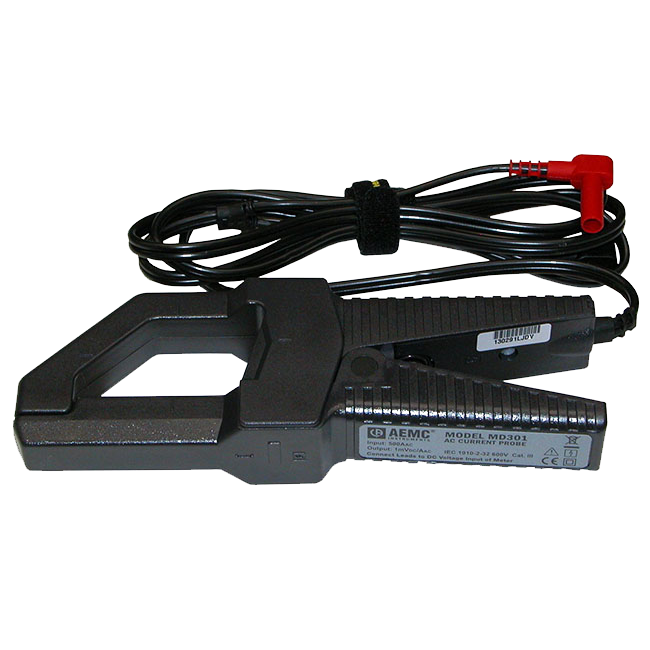

AEMC 1201.07 AC Current Probe Model MD301
SKU 1201.07
Model Number: AEM120107
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
The MD301 is built for ruggedness, versatility and ease of use. It is a general purpose 500A current probe, but with mVDC output for recorders, loggers and other instruments with mVDC inputs. Output termination is double insulated 5 ft lead with safety banana plugs.
| Maximum Conductor Size | Cable 1.18" (30mm), bus bar 2.48x0.19” (63 x 5mm), dual cable 0.98” (25mm) |
| Current Range | 500AAC |
| Measurement Range | 2 to 500AAC |
| Output Signal | 1mVDC / AAC (0.5VDC @ 500AAC) |
| Transformation Ratio | 1000:1 |
| Output | Double insulated 5ft (1.5m) lead with safety 4mm banana plug |
| Accuracy 50/60Hz | 1% @ 500A |
| Frequency Range | 48Hz to 1KHz |
| Phase Shift | N/A |
| Load Impedance | ≥100kΩ |
| Overload | 700A for 10 min |
| Operating Temperature | -5° to +122°F (-15° to +50°C) |
| Storage Temperature | -40° to +185°F (-40° to +85°C) |
| Dimensions | 2.6 x 7.68 x 1.34” (66 x 195 x 34mm) |
| Weight | 14.82 oz (420g) |
| Pollution Degree | 2 |
| Rating | UL 94 V0 |
| Ingress Protection | IP20 |
| EMC | EN 50081-1 Class B, EN 50082-2, IEC 61000-4-2 |
| Safety Compliance |
EN 61010-2-32, 600V CAT III, 300V CAT IV
|
