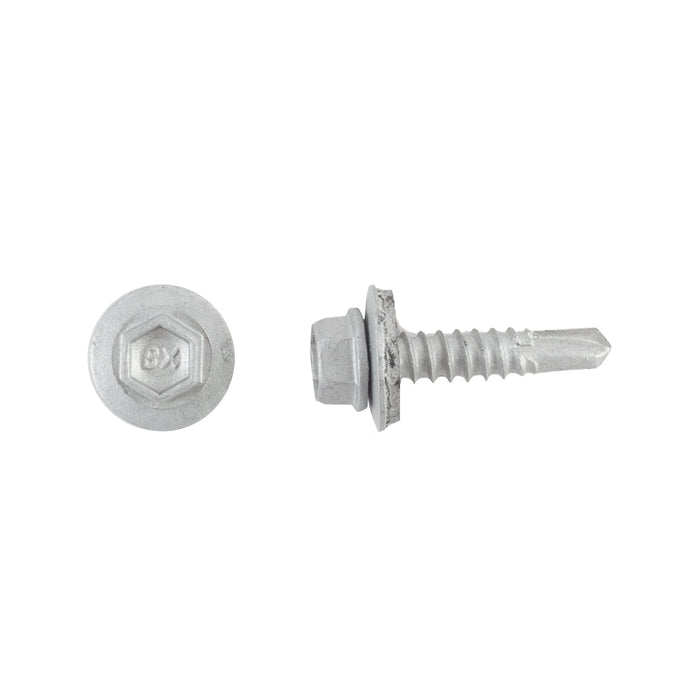

Teks® with Bonded Washer Steel-to-Steel Self-Drilling Screws - TEKS® 3 HWH/BD CL 12-14 X 1"
por ITW Buildex
SKU 1011000
Número de modelo: BUI1011000
Features
- Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
- Dual sealing bonded washer prevents leaks.
- Climaseal finish provides excellent corrosion resistance and lower tapping torque.
- Point has precise cutting edges to improve drill performance with less effort.
- Point-to-thread design maximizes pullout performance and minimizes backout.
| Product Name | Teks® 3 with Bonded Washer |
| Size | 12-14 x 1" |
| Drive Style | Hex-Unslotted |
| Head Style | 5/16" Hex Washer Head (HWH) |
| Material | Carbon Steel |
| Coating | Climaseal® |
| Finish Color | Clima Gray |
| Steel Grade | C1022 |
| Screw Diameter | #12 |
| Threads Per Inch | 14 |
| Length | 1" |
| Material Attachment Range | .036" - .400" |
| Drill & Tap Capacity | .036" - .210" |
| Maximum Material Thickness | 0.400" |
| Installation Tool | 5/16" Drive Socket |
| Tensile Strength | 2,778 lb |
| Shear Strength | 2,000 lb |
| Torque | 92 in-lb |
| Washer Size | 9/16" O.D. |
| Washer Style | Galvanized (G-90) |
| Country of Origin | Taiwan |
| Box Quantity | 3,000 |
| Carton Weight | 36.64 lb |
