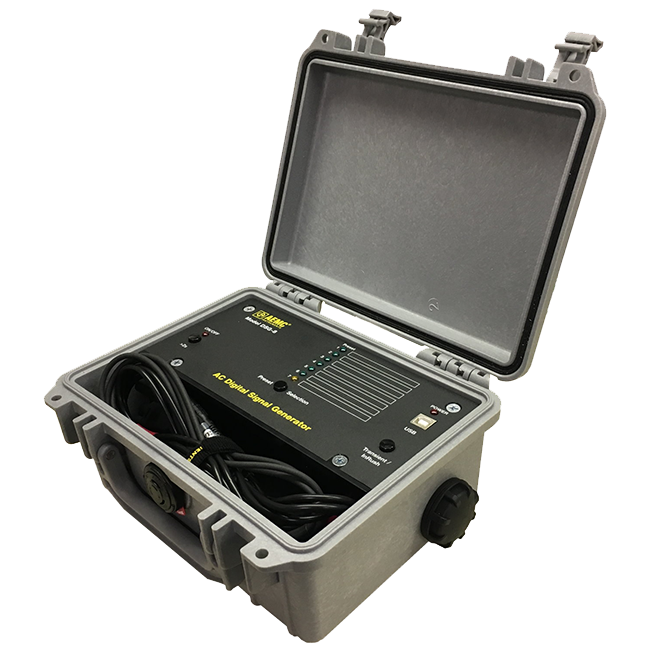

AEMC 6000.09 AC Digital Signal Generator Model DSG-8
por AEMC Instruments
SKU 6000.09
Número de modelo: AEM600009
Precio original
$755.25
-
Precio original
$755.25
Precio original
$755.25
$755.25
-
$755.25
Precio actual
$755.25
The AC Digital Signal Generator Model DSG-8 simulates waveforms for a variety of AEMC power analyzers, including the PowerPad, PowerPad III, and PEL 100 series. The DSG-8 can create simulations for any AC distribution system supported by these instruments, including capturing transients, inrush, and alarm events. The simulator ships with seven preset simulations. These can be modified through the Simulator Software (provided). You can also create, save, and load new waveform simulations with the Simulator Software. Presets can be selected from either a computer running the Simulator Software or through the DSG-8 front panel. In addition, custom simulations can be configured via the Simulator Software.
| Channels | Eight |
| Output Termination | Five 4mm safety banana connectors Four AEMC/C.A connector |
| Output Voltage | 0 to 55VRMS (Earth/Ground to phase 1, 2, 3 and neutral) 0 to 1VRMS AEMC/C.A connector |
| Accuracy | Unspecified (see graphs below) |
| Frequency Range | 45 to 65Hz |
| Sample Rate | 128 samples/cycle |
| Harmonics | Programmable harmonic content to the 50th harmonic |
| Inrush | 14 cycle inrush simulation |
| Presets | Seven preset waveforms (six normal/transient, one normal/inrush) |
| Communication | USB 2.0 |
| Power Consumption | 70mA at max output all eight channels |
| Power Source | USB 5V Three 1.5V C-cell alkaline batteries |
| Battery Life | 100 hours active mode (output ON) 60 days sleep mode (output OFF) |
