AEMC 2155.57 Electrostatic Discharge (ESD) Floor Test Kit
Número de modelo: AEM215557
Sparking is an obvious concern in areas where flammable gas or liquid is present and these areas require strict safety measures to prevent static electricity from build-up and discharge. ESD events can also frequently occur without a visible or audible spark and can severely damage sensitive electronic components and assemblies. Some components can be damaged by discharges as little as 30V. These invisible forms of ESD can cause labs and production manufacturing device failures and imperceptible forms of degradation that may affect reliability and performance of sensitive surface mounted electronics.
Test ESD Flooring to Protect Your Equipment and Devices from ESD
Detect, monitor, and measure static electricity and voltage generation in workplace environments to ensure compliance with leading ESD standards.
The AEMC® Megohmmeter Model 6536 ESD Floor Kit is designed for testing both point-to-ground and point-to-point electrostatic discharge on flooring systems. The kit supports compliance with major U.S., Canadian, international, and military standards, including:
- ANSI/ESD STM 7.1 – Flooring Systems Resistive Characterization
- ANSI/ESD STM 97.1 – Floor Materials and Footwear Resistance in Combination with a Person
- ANSI/ESD STM 11.11 – Surface Resistance Measurement of Static Dissipative Planar Materials
- ASTM F150 – Electrical Resistance of Conductive and Static Dissipative Resilient Flooring
- IEC 61340-4-1 – International Standard for Floor Resistance Testing
- MIL-STD-1686 – U.S. Military ESD Control Program
Simple testing procedure: place the two included 5-lb NFPA probes three feet apart on the flooring surface, apply a known voltage, and record the resistance value. The Model 6536 determines whether results fall within acceptable ranges for the applicable standards.

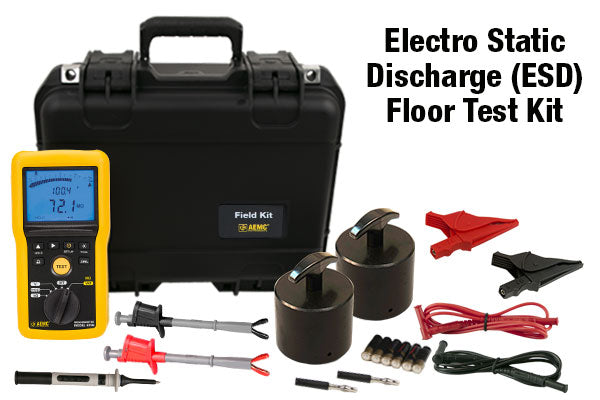

The complete field kit includes everything you need for professional ESD floor compliance testing:
- Rugged field case
- Megohmmeter Model 6536
- (2) 5-lb (2.3 kg) floor weights (NFPA probes) with conductive rubber bases, compliant with EOS/ESD 11.11
- (2) 5-ft color-coded (red/black) leads
- (2) color-coded (red/black) alligator clips
- Black test probe
- (2) color-coded (red/black) grip probes
- (2) 4-mm non-insulated adapters
- (6) AA batteries
- User manual
Megohmmeter Model 6536
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | Test Voltage: Variable 10 to 100V (1V steps) 10V: 2kΩ to 2GΩ 25V: (Vtest/5)kΩ to (Vtest/5) GΩ 100V: 20kΩ to 20GΩ |
| Measurement Accuracy |
2-999kΩ only: ±(4% + 20 ct) All other ranges: ±(3% + 2 ct)+(10%V) per 100MΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) 0.0 to 100Ω (20mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| Resistance Measurement | |
| Range | 1Ω to 1000kΩ |
| Accuracy | ± (3% R + 2ct) |
| Open Voltage | Approximately 4.5V |
| General Features | |
| Programmable Alarm | Yes |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥ 6000 IR tests at 100V into 100kΩ with a duty cycle of 5 seconds on and 1 min off. ≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lb (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance |
IEC/EN 61010-1, 600V CAT IV, IEC 61557
|
