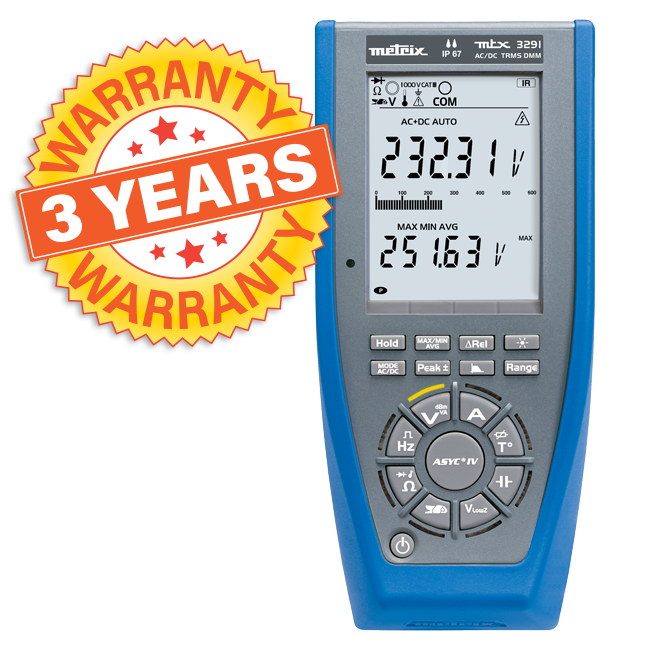

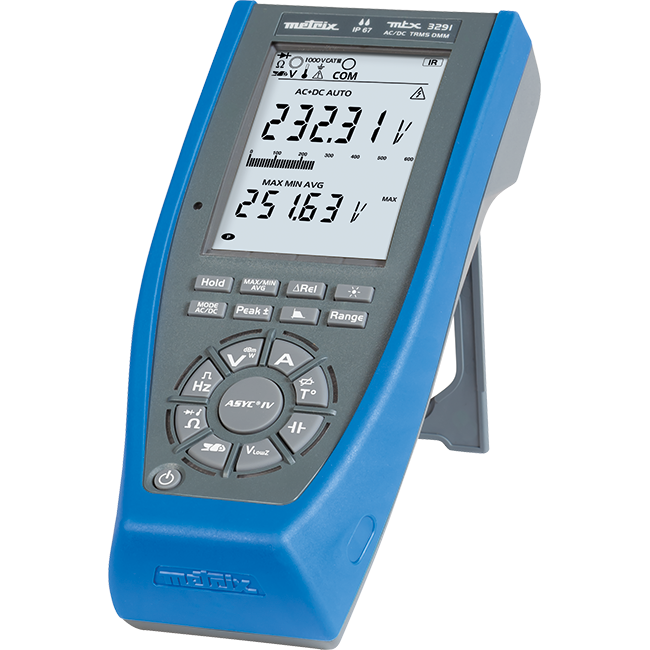

AEMC 2154.02 Digital Multimeter Model MTX 3291
por AEMC Instruments
SKU 2154.02
Número de modelo: AEM215402
Precio original
$641.25
-
Precio original
$641.25
Precio original
$641.25
$641.25
-
$641.25
Precio actual
$641.25
The Model MTX 3291 is a portable multimeter that measures voltage (AC and DC), resistance, capacitance, temperature, duty cycle, and frequency. The meter performs continuity checks and diode testing (including forward bias voltage), and includes an AC voltmeter function with low input impedance for finding ghost voltages. Other features include monitoring Min, Max, Avg, and Peak measurement; Auto Range mode, and Data HOLD.
The meter is compact, rugged, comfortable to grip, and waterproof to the IP67 standard; and is rated for safety (EN 61010-1, NF EN 61010-2-30 1000V CAT III, 600V CAT IV).
| Counts | 60,000 |
| Voltage AC/DC/AC+DC | 1000VAC/DC/AC+DC |
| Current AC/DC/AC+DC | 10AAC/DC/AC+DC (20A for 30s max) |
| Bandwidth AC/AC+DC | 100kHz |
| Resistance | 60MΩ |
| Frequency | 60Hz to 600kHz |
| Capacitance | 60mF |
| Continuity | <30Ω±5Ω |
| Temperature PT100/1000 | -328° to 1472°F (164° to 800°C) |
| Diode Test | Yes |
| VLowZ | Yes |
| Duty Cycle/Pulse Width/Pulse Counting | Duty Cycle and Pulse Width |
| ∆REL | Yes |
| MIN/MAX/AVG/PEAK | Yes all functions |
| Clamp Function | Current measurement with pre-set ratios |
| Display | Digital LCD with backlighting |
| Communication with PC | Through USB |
| Software | SX-DMM (included) |
| Dimensions (HxWxD) | 7.72 x 3.54 x 1.85" (196 x 90 x 47.1mm) |
| Weight | 1.26 lbs (570g) |
| Power Source | 4 x AA Batteries or NiMH batteries (included) |
| Battery Life | AA:100 hrs, NiMH:80 hrs |
| Operating Temperature | -4° to 158°F (-20° to 70°C) |
| Storage Temperature | -32° to 104°F (-35° to 40°C) |
| EMC | NF EN 61326-1 |
| Pollution degree | 2 |
| Ingress Protection (IP) | IP67 |
| Safety Compliance |
NF EN 61010-1, NF EN 61010-2-30 1000V CAT III, 600V CAT IV
|
