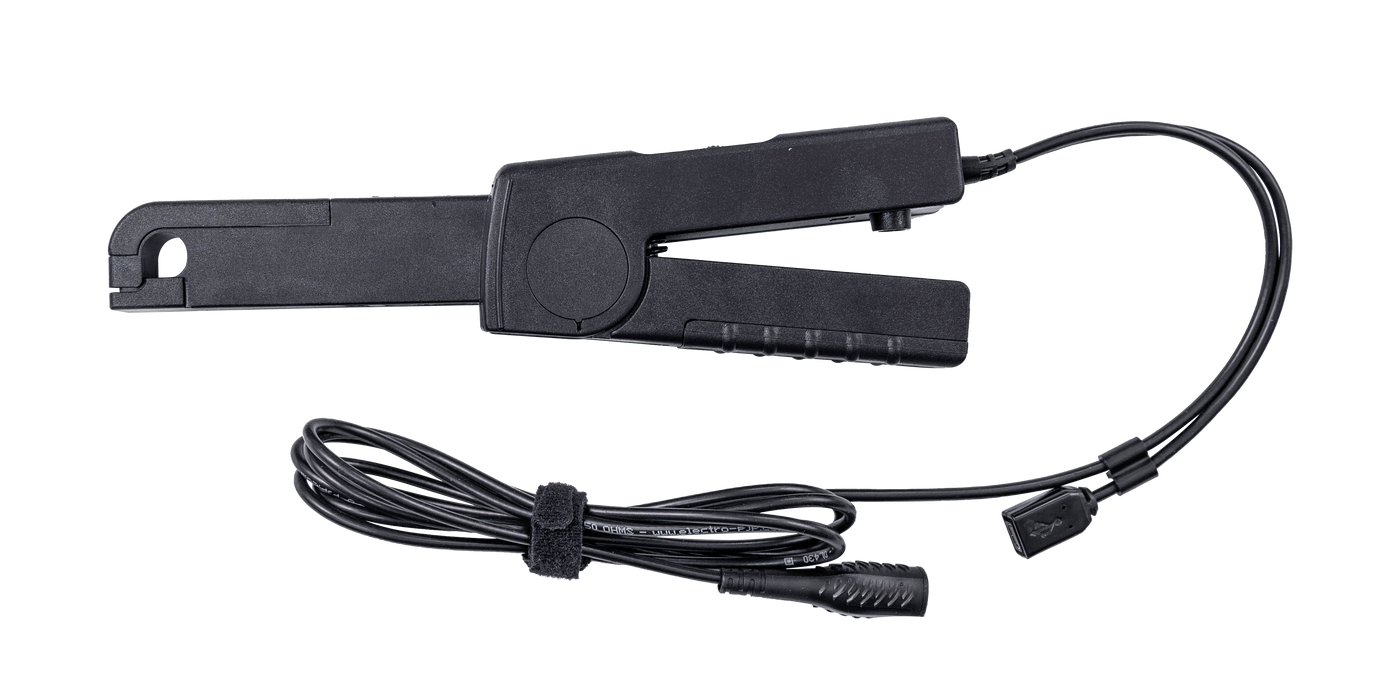

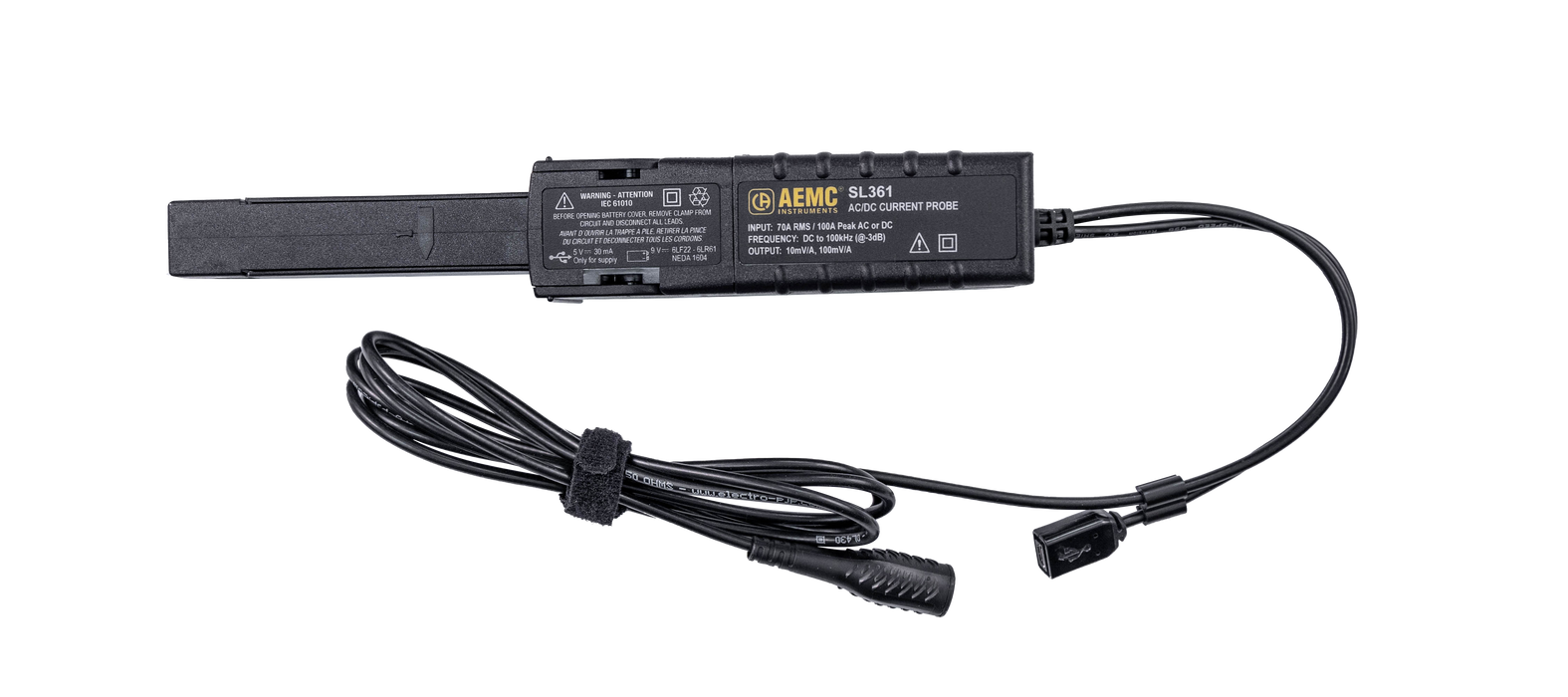

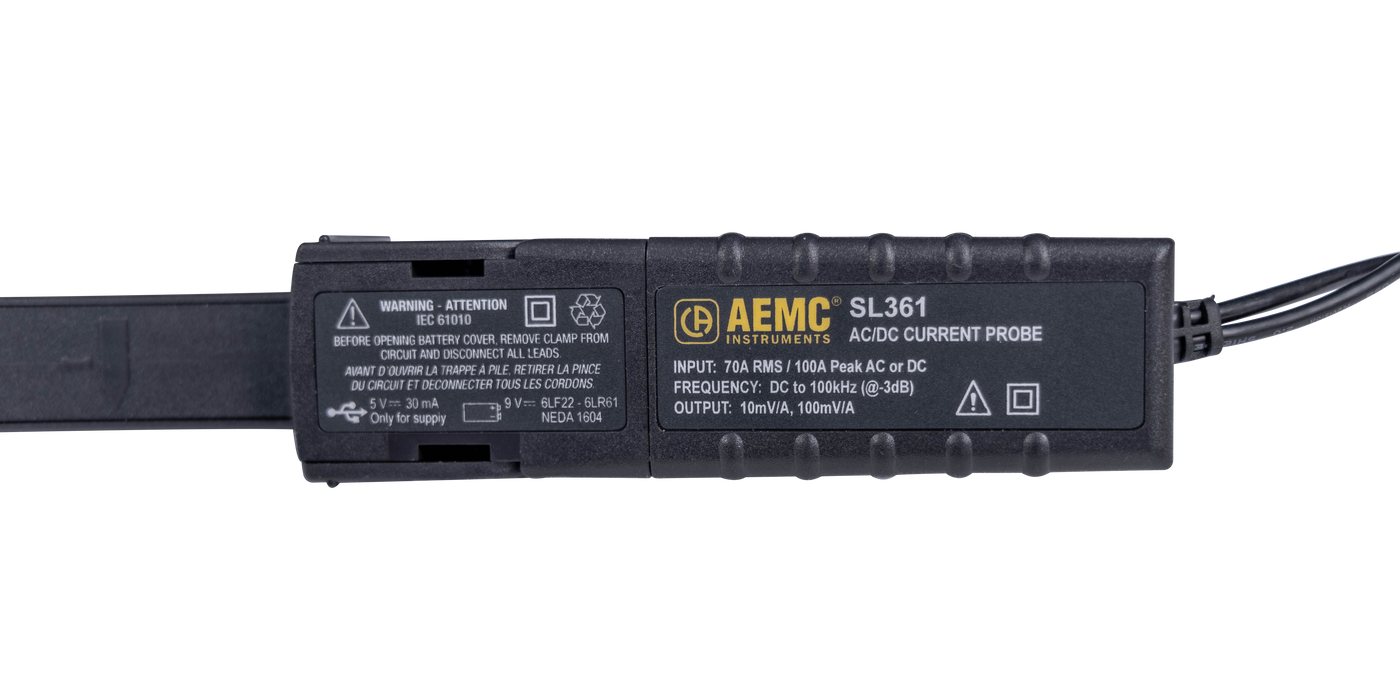

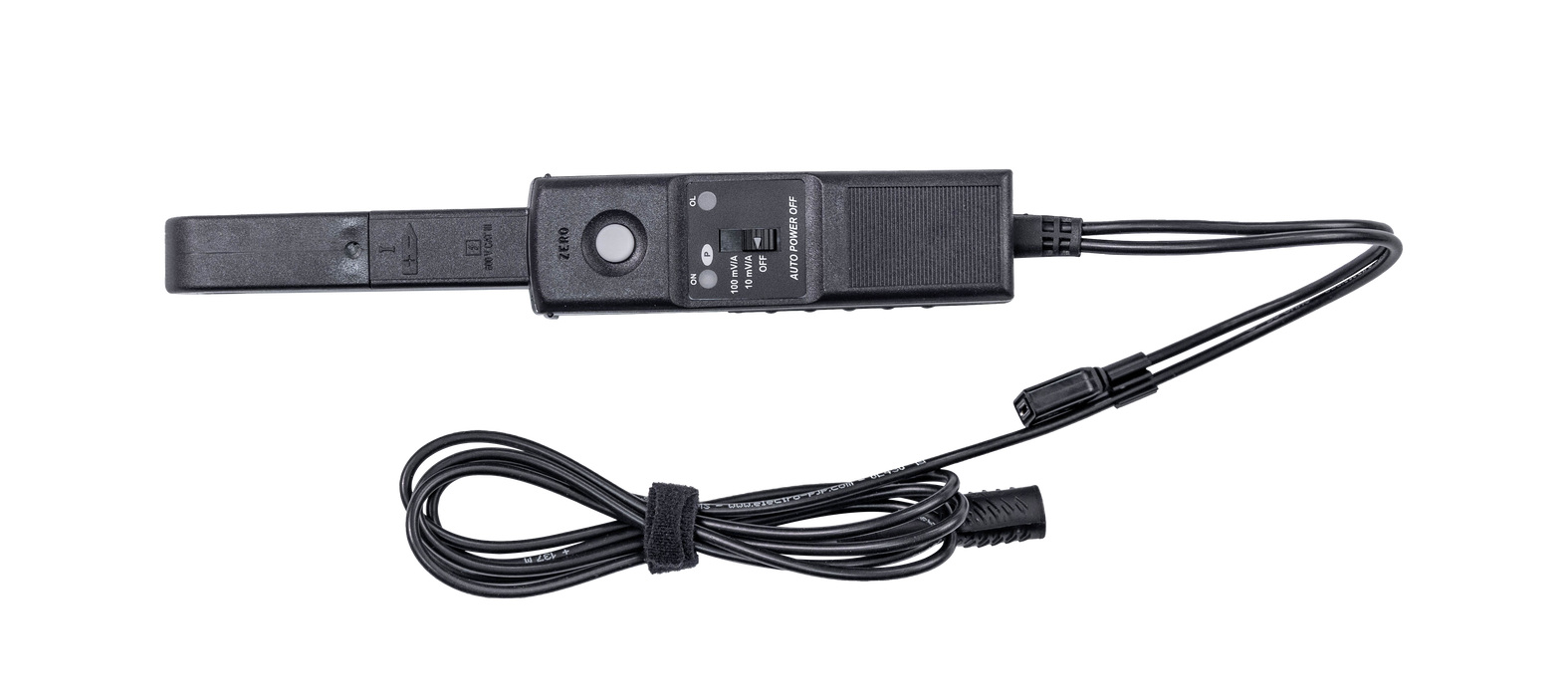

AEMC 2153.09 AC/DC Current Probe Model SL361
Número de modelo: AEM215309
The Model SL361 is a high-performance, Hall-effect current probe designed to accurately capture both AC and DC waveforms up to 100 A. With dual sensitivity settings and a wide 100 kHz (-3 dB) bandwidth, it’s ideal for precise signal visualization.
KEY FEATURES
- Easy Reset: Quickly reset the probe with the push of a button.
- Range Overload Indicator: Visual warning for overload conditions to ensure safe operation.
- Power Supply Indicator: Stay aware of the probe’s power status at a glance.
- Automatic DC Zero Adjustment: Provides accurate measurements without manual calibration.
- Automatic Standby Mode: Prolongs battery life, enhancing efficiency in the field.
- Jaw Capacity: Accommodates up to a single 4/0 AWG 0.46 in (11.8 mm) diameter conductor, providing flexibility for various applications.
- Category Ratings: Suitable for installations rated up to 600 V CAT III and 300 V CAT IV.
Versatile Power Options
Powered by an internal battery or a standard 5V DC power adapter via its micro-USB port, the SL361 features automatic DC DC zeroing and an energy-saving standby mode to extend battery life. The SL361 adapts to your power preferences, ensuring it’s ready whenever you are.
Universal Compatibility
The AC/DC Current Probe Model SL361 is universally compatible. Its six foot coaxial cable with an insulated male BNC connector ensures reliable connectivity it to be compatible to any AEMC® and non-AEMC® analog or digital oscilloscope or voltage-measuring devices with standard inputs.
Introducing the NEW SL361 & SL306 AC/DC Current Probes
Meet the next generation of our clamp-on AC/DC current probes, designed for reliable performance in demanding environments. The SL361 offers precision measurement capabilities with a small, streamlined design that fits easily in tight spaces. This durable current probe is ideal for electricians, engineers, and technicians working with oscilloscopes and voltage-measuring instruments. This probe gives you flexibility, accuracy, and safety- all in one tool.
| ELECTRICAL | |||
|---|---|---|---|
| Nominal Range | 10 APEAK; 100 APEAK | ||
| Measurement Range | 100 mA to 100 APEAK | ||
| Bandwidth | 100 kHz (-3 dB) (depending on current value) | ||
| Output Signal | 100 mV/A (10 A range) 10 mV/A (100 A range) |
||
|
Phase Shift (DC to 65 Hz) 1 mV/mA Range |
– |
||
| Load Impedance | ≥ 1 MΩ and ≤ 100 pF | ||
| Common Mode Voltage (600 V max) with AC measurement (max) |
600 V at 50/60 Hz: ≤ 1 mA/100 V at 400 Hz: ≤ 7 mA/100 V |
||
| MECHANICAL | |||
| Power Supply | 9 V alkaline battery or 5 Vdc via micro-USB (up to 80 hours with alkaline battery) |
||
| Output Termination | 6.5 ft (2 m) coaxial cable terminated by (1) insulated BNC plug | ||
| Maximum Conductor Size | 0.46 in (11.8 mm) | ||
| Dimensions | (9.09 x 1.42 x 2.64) in (231 x 36 x 67) mm | ||
| Weight | 11.6 oz (330 g) with battery | ||
| ENVIRONMENTAL | |||
| Operating Relative Humidity | (0 to 85) % RH with a linear decrease above 95 °F (35 °C) | ||
| Operating Temperature | (14 to 122) °F (-10 to 50) °C | ||
| Storage Temperature | (-22 to 176) °F (-30 to 80) °C | ||
| SAFETY | |||
| Electrical |
IEC 61010-1, IEC 61010-2-032, |
||
| Ingress Protection | IP20 per IEC 60529 | ||
| UL Approval | Yes | ||
