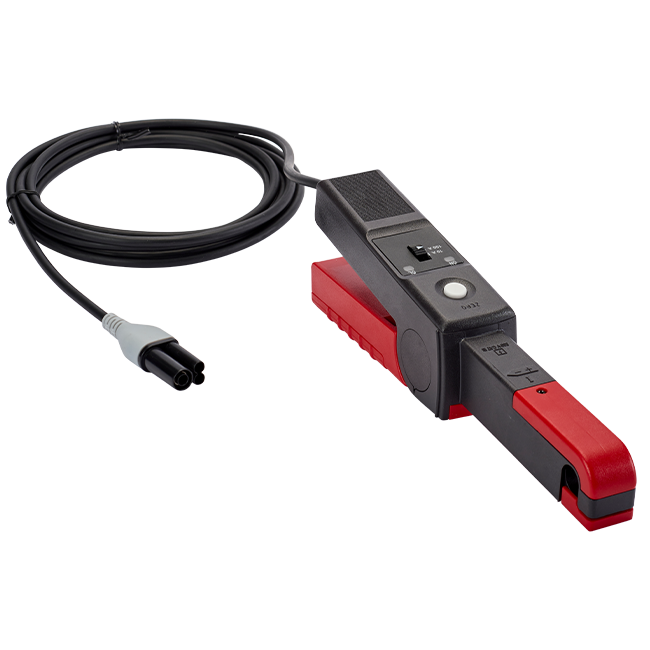

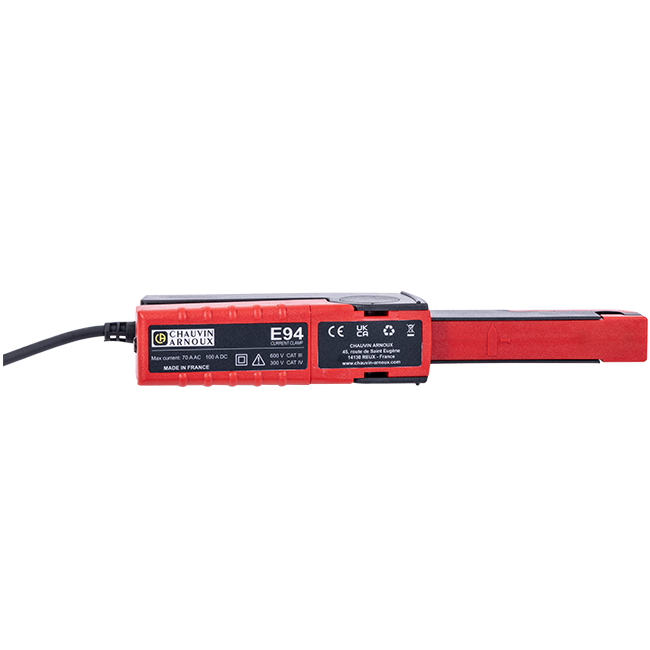

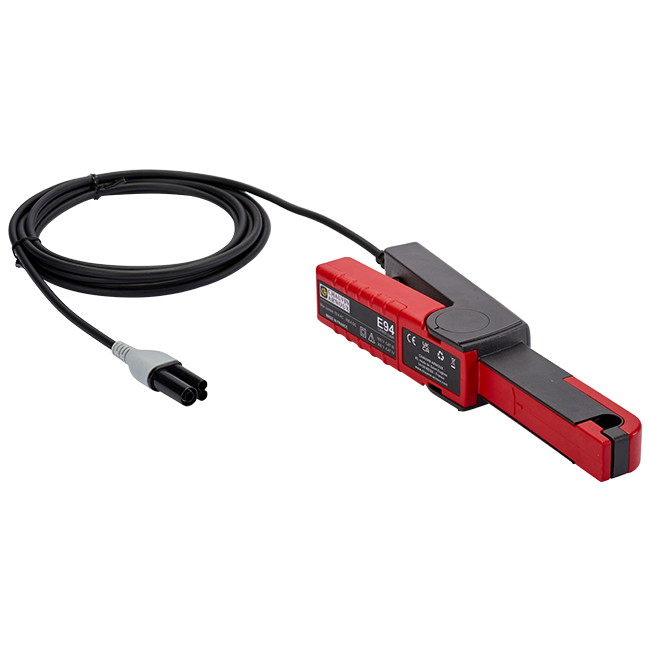

AEMC 2140.82 AC/DC Current Probe Model E94 for use only with Models 8345, PEL 112, PEL 113, & PEL 115

With cutting-edge Hall-effect technology, the E94 Current Clamp defines the way you measure alternating or direct currents. No interruptions to your installations — no need to cut off the current being measured.

Why Choose the E94?

• Compact and Ergonomic Design: We understand that some spaces can be a tight squeeze. That's why the E94 boasts a compact design and ergonomic shape, making it the perfect companion for those hard-to-reach places.
• Precision Sensitivity: Accuracy is key when it comes to current measurements. The E94 offers unrivaled measurement sensitivity, ensuring you get precise readings every time.
• User-Friendly: Simplicity meets safety with the E94. It's designed for ease of use, so you can confidently measure currents without any hassle.

Performance at a Glance

The E94 Current Clamp delivers outstanding performance too:

• Current Measurement Range: From 100 mA to 100 A peak, with two selectable ranges: 10 A and 100 A.
• Wide Bandwidth: Covering a range from DC to 100 kHz (3 dB), the E94 is ready for a variety of applications.

The E94 Current Clamp is equipped with a molded 4-pin connector compatible with the latest-generation PowerPad^® IV Class A model 8345. When connected, the clamp draws power directly from the instrument, and the specific connector even allows automatic recognition by the instrument itself.

• "Zero DC" Pushbutton: Easily reset your measurements with the "Zero DC" function, and rest assured that your parameters are saved for future use.
• Range Overshoot Indicator: Stay informed with the range overshoot indication, ensuring you're always in control.
• DC Zero Confirmation: The DC Zero confirmation status provides an extra layer of reliability to your measurements.

Clamping Diameter	0.464 in (11.8 mm)
Current Range	100 mA 100 A
Selectable Frequency Ranges	10 A (0.1 to 10) A peak and 100 A (0.5 to 100) A peak)
Dimensions (H x W x D)	(9.09 x 1.41 x 2.65) in (231 x 36 x 67) mm
Weight	11.64 oz (330 g)
Lead length	10 ft (3 m)
Type of current sensor	Type A
Operating Temperature	(14 to 131) °F  (-10 to 55) °C
Storage Temperature	(-40 to 158) °F  ( -40 to 70) °C
Operating Humidity	(10 to 85) % RH
Storage Humidity	(10 to 90) % RH
Double Insulated	Yes
Ingress Protection (Ip)	IP20
Pollution Degree	2
Electromagnetic Compatibility (EMC)	EN/IEC 61326-1
Safety Compliance	EN/IEC 61010-2-032 600 V CAT III, 300 V CAT IV
Warranty	2 Years
