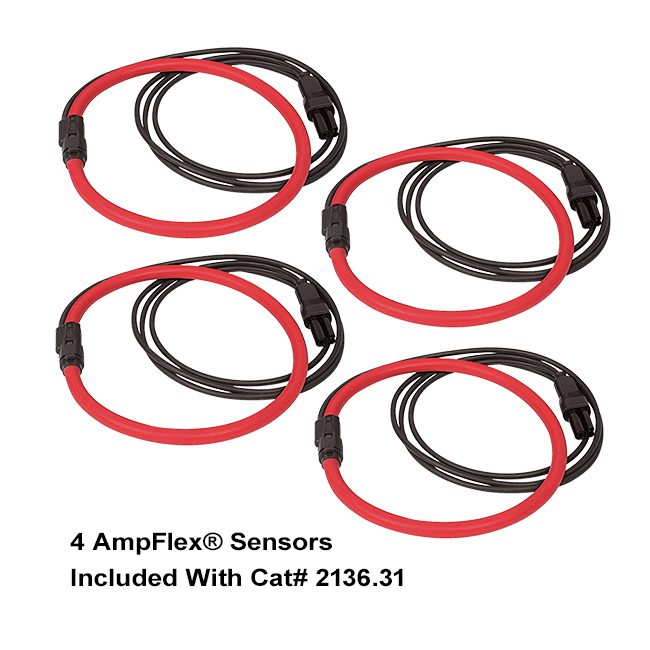

AEMC 2136.31 PowerPad® III Model 8336 w/4 193-24-BK AmpFlex® Sensors
Número de modelo: AEM213631
Replacement for Model 8335 Series
The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600 V CAT IV.
The Model 8336 has 2 GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.
IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years.
| Inputs | 4 Voltage / 4 Current | ||||
| Sample Rate | 256 per Cycle | 12.8 kHz at 50 Hz | 15.36 kHz at 60 Hz | ||
| Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
| Volt | |||||
| Vrms (AC + DC) | 1000 V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.5 % Rdg + 200 mV | |
| Vpk | 1414 V | (2 to 1000) V | 0.1 V | ±3 % Rdg + 2 V | |
| Vrms Half Cycle | 1000 V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.8 % Rdg + 1 V | |
| Amps (accuracy excluding clamp accuracy) | |||||

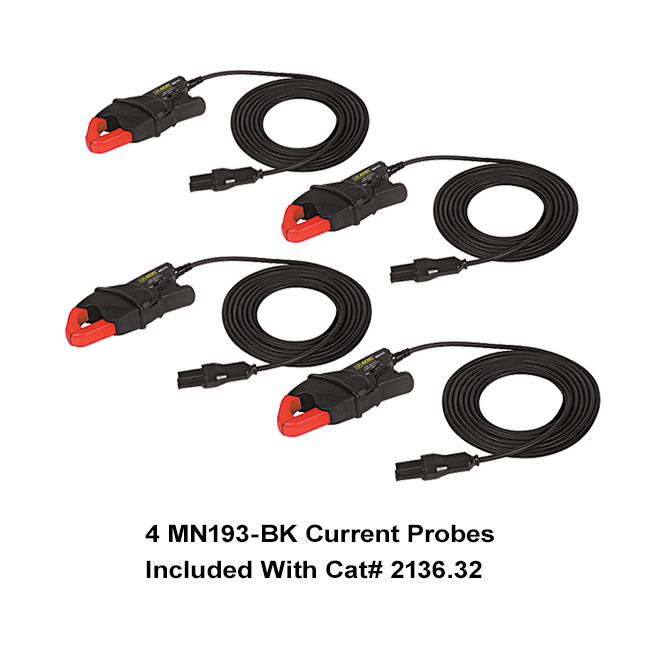

| Amps (AC + DC) | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1000) A 5 mA to 5 A 100 mA to 100 A |
0.1 A 1 mA 10 mA |
±0.5 % Rdg + 200 mA ±0.5 % Rdg + 2 mA ±0.5 % Rdg + 20 mA |
|
| AmpFlex & MiniFlex | Range 100A Range 6500A Range 10kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 mA 0.1 A & 1 A 1 A |
±0.5 % Rdg + 30 mA ±0.5 % Rdg + 3 A ±0.5 % Rdg + 3 A |
|
| Apk | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1,414) A 5 mA to 7.017 A 100 mA to 141.4 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 2 A ±1 % Rdg + 20 mA ±1 % Rdg + 200 mA |
|
|
Apk AmpFlex & MiniFlex |
Range 100 A Range 6500 A Range 10 kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 A 0.1 A & 1 A 1 A |
±3 % Rdg + 600 mA ±3 % Rdg + 5 A ±3 % Rdg + 5 A |
|
| A Half Cycle | SR193 &MR193 MN193 5A MN193 100A |
(1 to 1200) A 5 mA to 6 A 100 mA to 120 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 1 A ±1 % Rdg + 10 mA ±1 % Rdg + 100 mA |
|
| Frequency | (40 to 70) Hz | 0.01 | ±0.01 Hz | ||
| Power | |||||
| Watts (VA, var) P-Q-S |
Probes: AmpFlex MiniFlex |
10 mW to 10 MW 10 mW to 10 MW |
4 digits min 4 digits min |
±1 % Rdg ±1.5 % Rdg |
|
| Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±1 ° for Φ, +5 cts for cos Φ |
||
| Energy | |||||
| kWh (kVAh, kvarh) P-Q-S | (1 to 9,999,999Wh (MVAh, Mvarh) | ±1 % Rdg | |||
| Harmonics | DC, 1 to 50 | ||||
| Volts & Amp % | f r Absolute V Absolute A THD |
(0.0 to 1500) % (0.0 to 100) % (0.0 to 1000) V (0.0 to 1000) A (0.0 to 999.9) % |
0.1 % 0.1 % 0.1 V 0.1 A 0.1 % |
±2.5 % Rdg + 5 cts ±2.5 % Rdg + 5 cts ±2.5 % Rdg + 1 V ±2 % Rdg + 1 A ±2.5 % Rdg + 5 cts |
|
| Phase Angle | (-179 to 180) °) | 1 ° | ±1.5 ° +1 °x (n/12.5) | ||
| Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A% | |||||
| General Features | |||||
| Programmable Alarm | Up to 40 types: 16,000 recorded max. | ||||
| Transient capture | Up to 210 | ||||
| Snapshot | Up to 50 (screen BMP + all channels data) | ||||
| Interface | Isolated USB, SD card slot accessible under instrument battery for direct transfer to PC, Dataview® software for real time data, configuration and reporting included | ||||
| Memory | SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms | ||||
| Display | Color TFT 320 x 240 (1/4 VGA) with graphic representation of system parameters and measurements | ||||
| Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | ||||
| Power Supply | Rechargeable 9.6 V NiMH battery pack, External charger | ||||
| Charging Time | (90 to 264) VAC (50/60) Hz | 6 h approx. | |||
| Battery Life | > 13 h when display ON, 25 h when recording with display OFF | ||||
| Dimensions (L x W x H) | (9.8 x 7.9 x 2.6) in (250 x 200 x 67) mm | ||||
| Weight | 4.3 lbs (1.95 kg) | ||||
| Altitude Operating | 2000 m (6560 ft) | ||||
| Operating Temperature | (32 to 108.5) °F (0 to 42.5) °C ≤ 85 % RH | ||||
| Storage Temperature | (-4 to 158) °F (-20 to 70) °C ≤ 75 % RH without battery | ||||
| IP Rating | IP53 per IEC 60529 | ||||
| Safety |
IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1
|
||||
