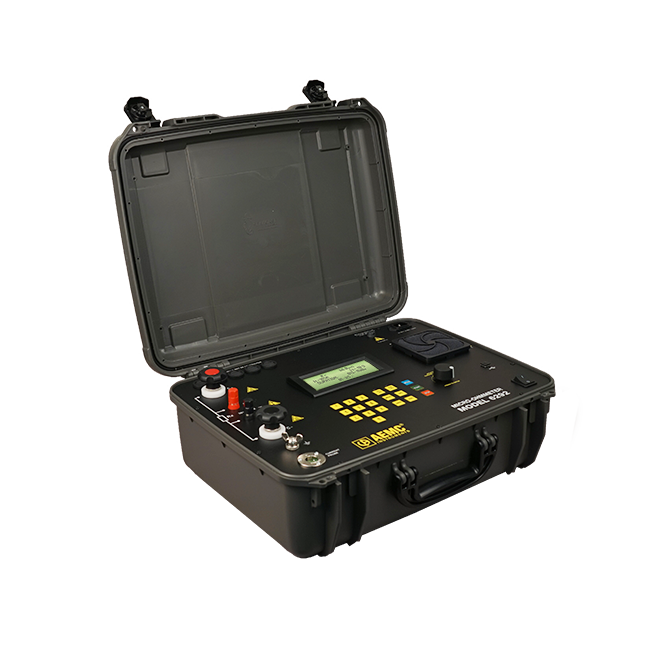

AEMC 2129.83 Micro-Ohmmeter Model 6292
por AEMC Instruments
SKU 2129.83
Número de modelo: AEM212983
Precio original
$7,875.50
-
Precio original
$7,875.50
Precio original
$7,875.50
$7,875.50
-
$7,875.50
Precio actual
$7,875.50
The high-current Micro-Ohmmeter Model 6292 is a portable, microprocessor-controlled instrument. It has optimized filters and protection for measurements in electrical substations. The Model 6292 can be used to accurately measure very low contact resistances of high voltage circuit breakers, switches, busbars, etc., with test currents up to 200A.
Measurement accuracy is guaranteed through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½-digit resolution. It allows measurement resistances up to 1Ω, and resolution of 0.1µΩ.
| ELECTRICAL | ||
| Test Current Range | 5 to 200A (True DC) | |
| Resistance Range | 0.1µΩ to 2mΩ 2 to 200mΩ 200mΩ to 1Ω |
|
| Accuracy | ± 1% of reading from 50µΩ to 1Ω | |
| Resolution | 0.1µΩ to 2mΩ 2 to 200mΩ 200mΩ to 1Ω |
0.1µΩ (50 to 200A) 10µΩ (25A at 200mΩ) 1mΩ (5A at 1Ω) |
| Output Voltage | 100VAC: 4.2V @ 200A 220VAC: 8.6V @ 200A |
|
| Max. Load Resistance | 100VAC: 20mΩ @ 200A 220VAC: 42mΩ @ 200A |
|
| Measurement Method | Four-terminal, Kelvin-type | |
| Test Mode | Normal or both sides grounded (BSG)* | |
| Adjustable Test Time | Unlimited for test currents of 100A or less; 5 to 120 seconds for test currents above 100A |
|
| Memory | Stores up to 8000 measurements | |
| Automatic Storage Of Test Results | Yes | |
| Interface | USB 2.0, supplied with DataView® software for download and reporting | |
| Power Supply | 100 to 240VAC, 50/60Hz | |
| MECHANICAL | ||
| Dimensions | 19.8 x 15.5 x 7.5" (502 x 394 x 190mm) | |
| Weight | 24.25 lbs (11 kg) approx | |
| ENVIRONMENTAL | ||
| Operating Temperature | 32° to 122°F (0° to 50°C) | |
| Storage Temperature | 14° to 158°F (-10° to 70°C) | |
| Humidity | 95% RH (non-condensing) | |
| SAFETY | ||
| Environmental Protection | IP54 with cover closed | |
| Safety Rating |
IEC61010-1
|
|
