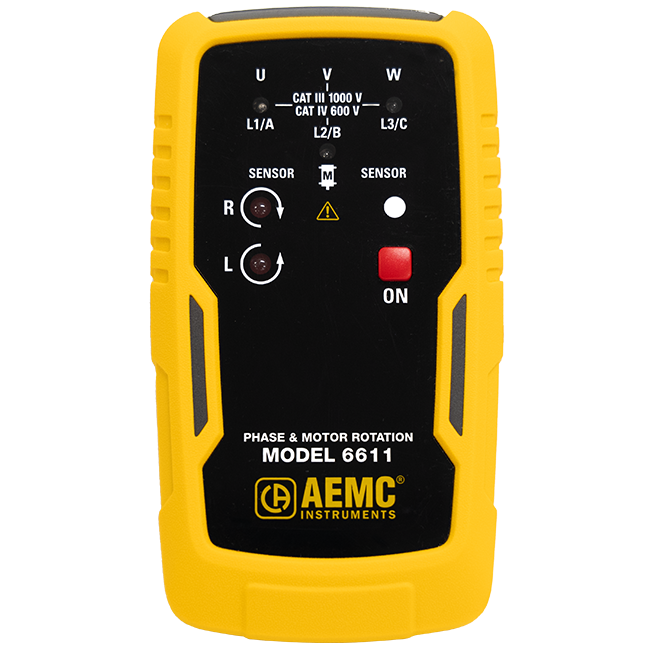

AEMC 2121.90 Phase & Motor Rotation Meter Model 6611
por AEMC Instruments
SKU 2121.90
Número de modelo: AEM212190
Precio original
$103.55
-
Precio original
$103.55
Precio original
$103.55
$103.55
-
$103.55
Precio actual
$103.55
The Phase Rotation Meter Model 6611 is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.
The Model 6611 is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation where direction of rotation is dependent on proper phase hook-up.
| Phase Rotation Connection Method | Direct Connection with Color-coded Leads |
| Rotating Field Connection Method | Non-Contact Static Induction |
| Operating Voltage | (1 to 440) VAC between phases Leads Connected: (40 to 600) VAC between phases |
| Voltage Indication (L1, L2, and L3 indicator lights) |
(120-440) VAC between phases |
| Operating Frequency | (2 to 400) Hz |
| Test Current (per phase) | < 3.5 mA |
| Phase Rotation Indicator (L1, L2, and L3 indicator lights) |
LEDs for Left or Right Rotation light up from 100 V (phase0neutral voltage) |
| Power Supply | (1) 9 V Alkaline Battery (Included) |
| Dimensions | (5.1 x 2.7 x 1.3) in (130 x 69 x 32) mm |
| Weight | 6 oz (170 g) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C |
| Storage Temperature | (-4° to 122) °F (-20 to 50) °C |
| Relative Humidity | < 80 % |
| Safety Compliance | IEC 61010-1; 600V CAT III |
| Ingress Protection | IP40 |
| CE Approved | Yes |
