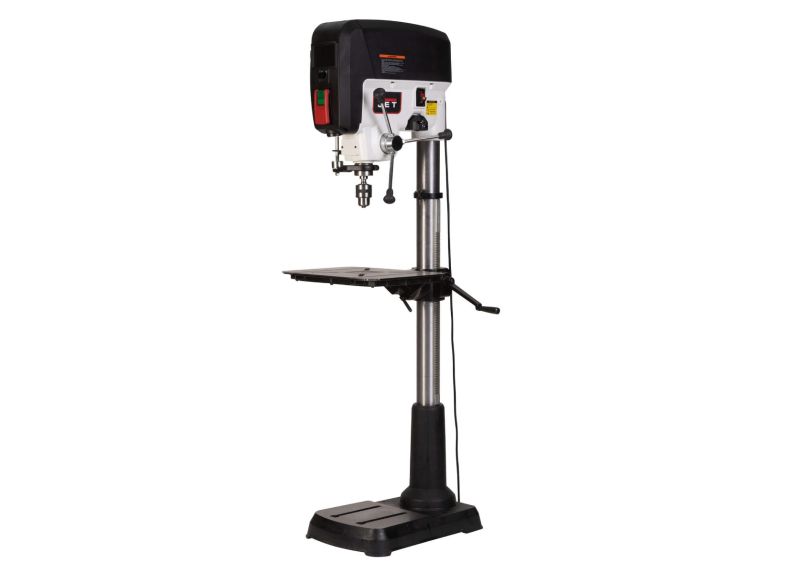

JET 20" Smart Drill Press (JDP-20S)
Número de modelo: JETJT12060
Effortless Setup. Flawless Results.
Meet the first true Smart Drill Press in the JET lineup—the JDP-20S. Designed for pros, schools, and serious woodworkers, it combines advanced digital control with the rock-solid performance you expect from JET.
The vibrant 5" touchscreen puts the entire machine at your command—select your tool type, size, and material to get instant RPM recommendations. Save up to 15 user presets for repeat jobs, lock settings with password protection, and track real-time motor load for perfect results every time.
Powered by a 1.5 HP brushless motor and anchored by a cast iron base, the JDP-20S delivers a massive 20" swing, 6" spindle travel, and a tilting cast iron table for drilling at any angle. With integrated LED lighting, crosshair lasers, and an industry-leading 5-year warranty, this drill press is built to outthink, outpower, and outlast the competition.
Features
-

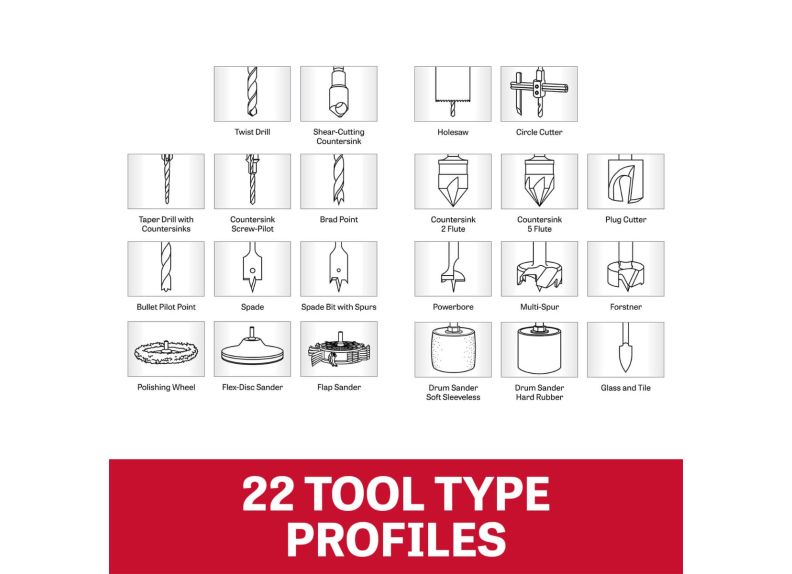

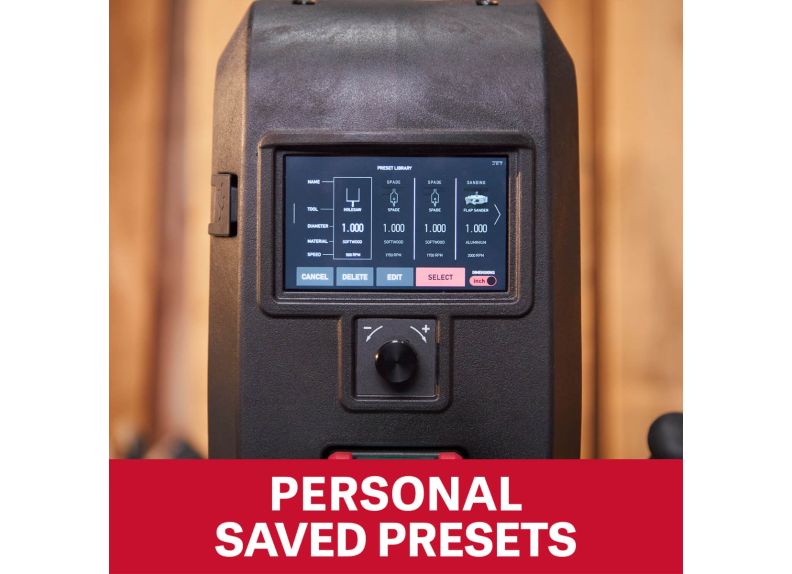

Smart Touchscreen Control: 5" intuitive interface with guided RPM setup, 22 tool profiles, and up to 15 user presets
-

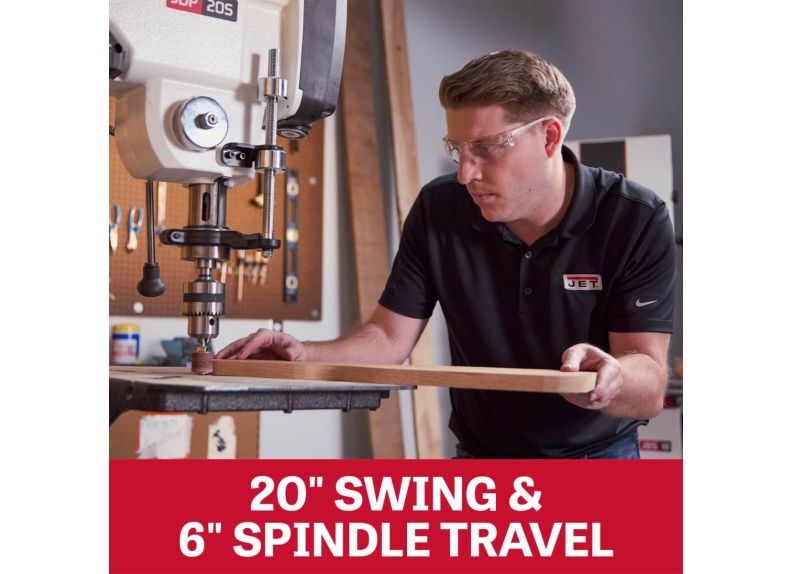

Bigger Capacity, More Possibilities: 20" swing, 6" spindle travel
-

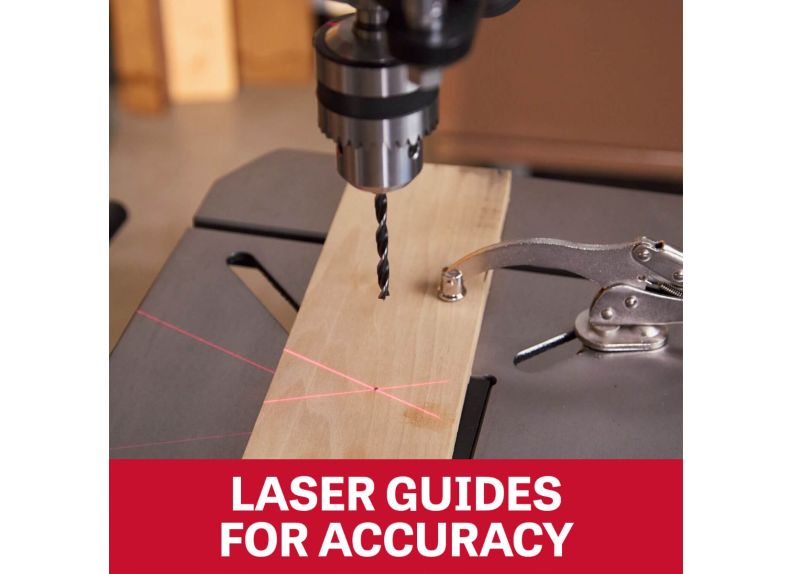

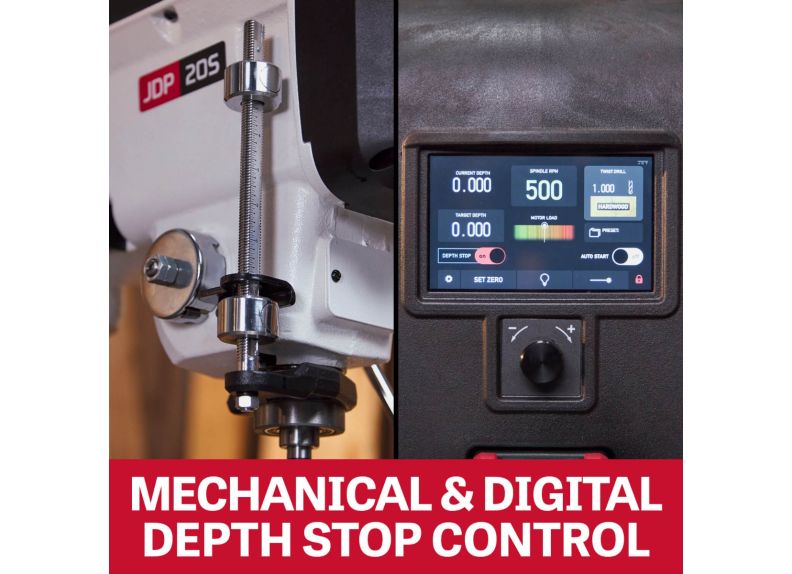

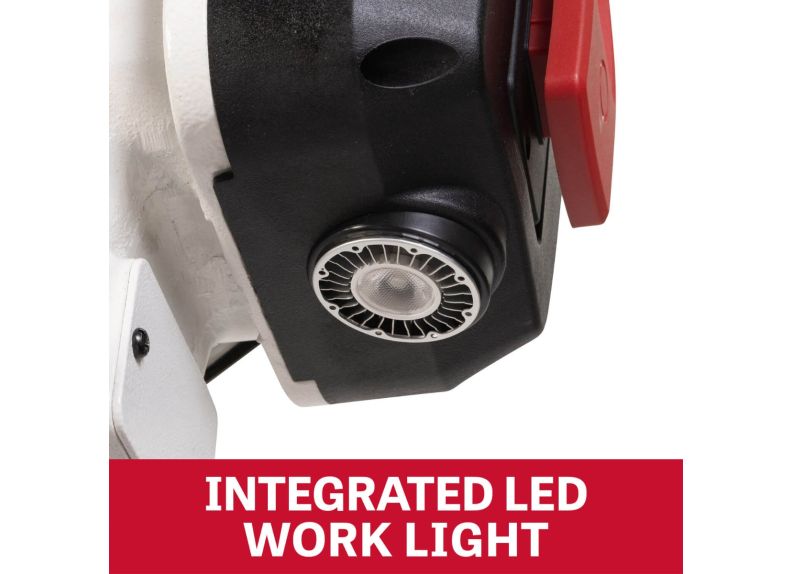

Precision at Every Step: Electronic/manual depth stops, crosshair lasers, and LED lighting for flawless alignment
-

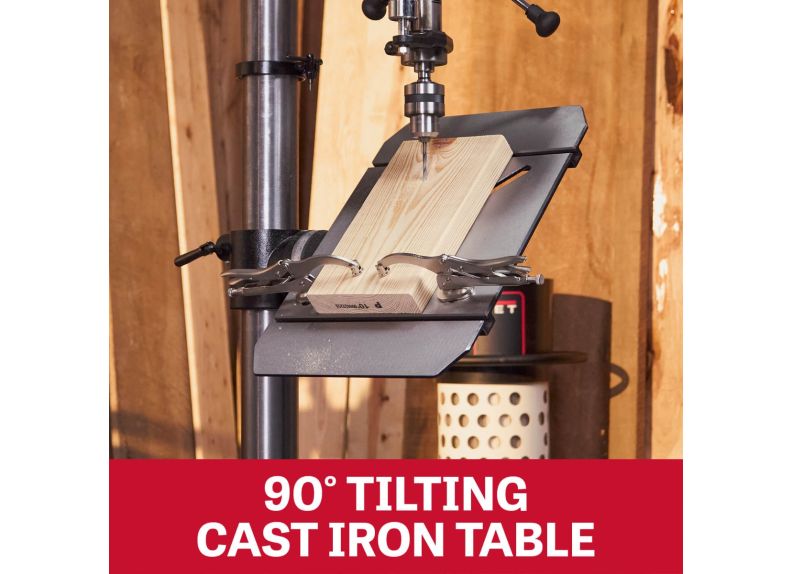

Versatile Work Surface: 20" x 14" cast iron table tilts 90° left/right for angled drilling
-
Flexible Speed Control: Continuously variable from 150–3000 RPM via touchscreen or manual dial.
-
Smarter Workflow: Auto-start, reverse spindle rotation, and multi-format measurement options (decimals, fractions, metric)
-

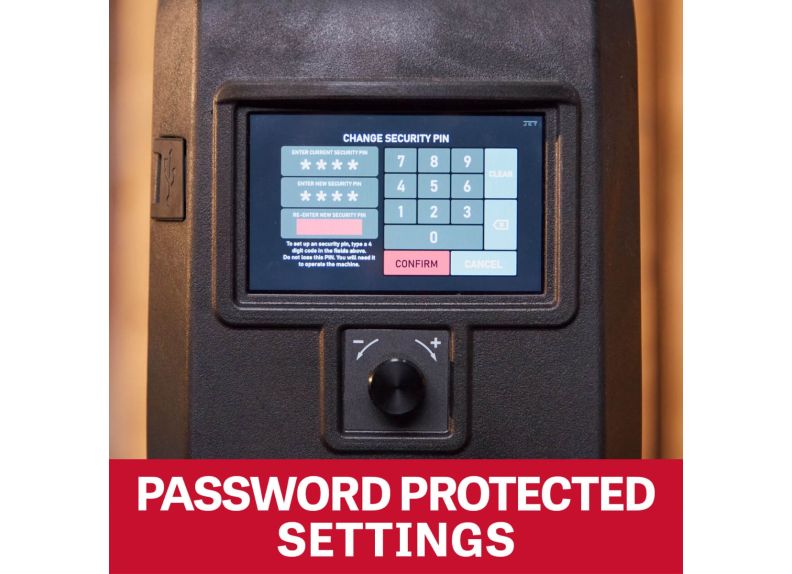

Password Protection: Restrict access with a built-in password lock for added security
-
JET Reliability: Heavy-duty cast iron construction backed by JET’s industry-leading 5-year warranty
| Stock Number | JT1-2060 |
|---|---|
| Chuck Distance to Base (In.) | 42.9 |
| Chuck Distance to Table (In.) | 24 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3.35 |
| Motor Amps | 13/6.5 |
| Motor (HP) | 1-1/2 |
| Motor Phase | Single |
| Motor Voltage (V.) | 120/24 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | Variable |
| Recommended Circuit Size (Amps.) | 20 |
| Spindle Distance to Base (In.) | 46.45 |
| Spindle Distance to Table (Max.) (In.) | 27.6 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Floor |
| Swing (In.) | 20 |
| Table Size (L x W) (In.) | 20 in. x 14 in. |
| Warranty | 5 Year |
| Gross Weight | 275 |
| Net Weight | 220 |
