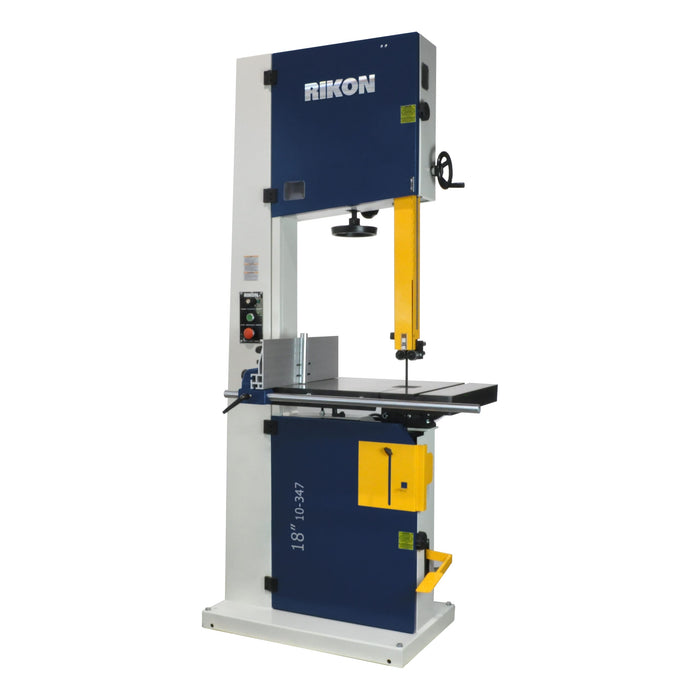

RIKON 18″ Professional Band Saw

RIKON 18″ Professional Band Saw

By Rikon
SKU 10-347

Model Number: RIK10347

$2,849.99 - $2,849.99
$2,849.99
$2,849.99 - $2,849.99
$2,849.99

The 18” Bandsaw #10-347 has one of the most powerful motors in the line, 4HP with 19″ of re-saw capacity, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include patent pending spring loaded tool-less guide system, massive cast iron table with quick adjust trunnion system, substantial quick adjust 6” tall rip fence system, key activated safety on/off switch, micro safety on/off switch activated door & foot brake. Under the top door blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.

  • Patented Spring Loaded Tool-less Guide System.
  • Patented Quick Adjust 6″ Tall Rip Fence System.
  • Cast Iron Wheels.
  • Quick Adjust Trunnion System.
  • oot Brake With Micro-switch.



SPECIFICATIONS

Motor Horsepower 4 HP
Motor Amps 16
Motor Volts 220V, 60Hz, 1Ph
Blade Speed 4,920 FT/MIN
Cutting Capacity Height 19”
Cutting Capacity Width 17-1/2”
Blade Width 1/4” – 1-3/8”
Blade Length 162”
Table Size 25” x 19”
Table Left Tilt -5°
Table Right Tilt 45°
Table Miter Gauge “T” Slot (1) 3/4” x 3/8”
Table Height to Floor 33-1/2”
Table Fence Size 18-3/4” x 1-3/4” x 6”
Wheel Material Cast Iron
Blade Guide Type Tool-less
Table Trunnion Cast Iron
Overall Height 84”
Overall Width 39”
Overall Depth 30”
Overall Base Size 29-15/16” x 18-1/8” x 2-7/16”
Dust Port 2@4”
Overall Net Weight 498 lbs.
Warranty 5 Years
