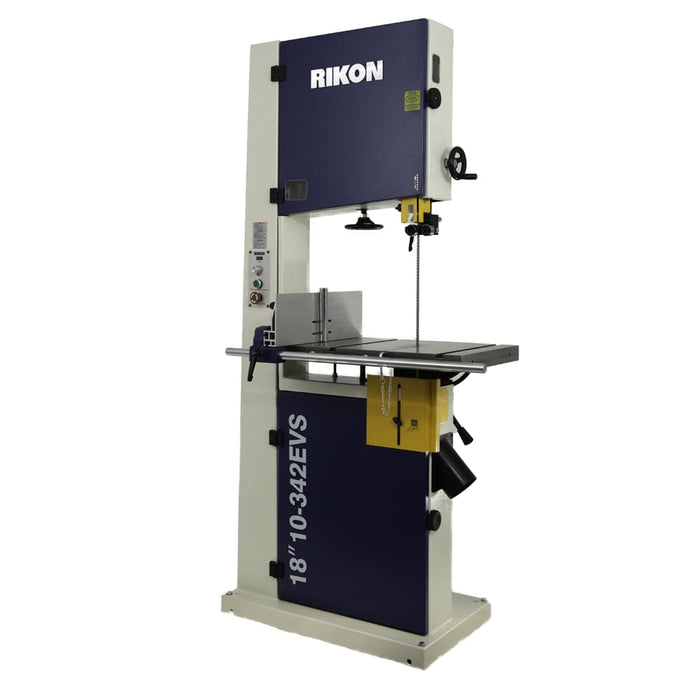

RIKON 18″ Deluxe Band Saw w/ Electronic Variable Speed

RIKON 18″ Deluxe Band Saw w/ Electronic Variable Speed

By Rikon
SKU 10-342EVS

Model Number: RIK10342EVS

$3,999.99 - $3,999.99
$3,999.99
$3,999.99 - $3,999.99
$3,999.99

18” BANDSAW 10-342EVS is a variable speed model with many features that professionals will enjoy – including spring-loaded tool-less blade guides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window. 2-1/2 HP variable speed motor provides ample power and for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6” tall rip fence with re-saw bar.

  • Variable Blade Speeds Settings 82 to 3,280 ft/min.
  • 2-1/2 HP Motor is Computer Monitored for Continuous Power and Torque.
  • Digital Readout for Viewing Blade Speed.
  • Resaw Capacity 13”.
  • Spring Loaded Tool-Less Guide System.
  • Machined Cast Iron Table with Miter Gauge ‘T’ Slots •Quick-Release Blade Tension System.
  • Rack and Pinion Upper Guide Adjustments.



SPECIFICATIONS

Motor Horsepower 2.5 HP TEFC
Motor Amps 12.5
Motor Volts 220V, 60Hz, 1Ph
Blade Speed 3,280 FT/MIN
Cutting Capacity Height 13”
Cutting Capacity Width 17-1/2”
Blade Width 1/4” – 1-3/8”
Blade Length 153”
Table Size 21-1/2” x 15-3/4”
Table Left Side Extension 4-3/8” x 15-3/4”
Table Left Tilt -10°
Table Right Tilt 45°
Table Miter Gauge “T” Slot (2) 3/4” x 3/8”
Table Height to Floor 35-1/2”
Table Fence Size 18-3/4” x 1-3/4” x 6”
Wheel Material Cast Iron
Blade Guide Type Tool-less
Table Trunnion Cast Iron
Overall Height 72-7/8”
Overall Width 38-1/2"
Overall Depth 28-1/8”
Overall Base Size 29-5/16” x 18-1/8”
Dust Port 2@4”
Overall Net Weight 324 lbs.
Warranty 5 Years
