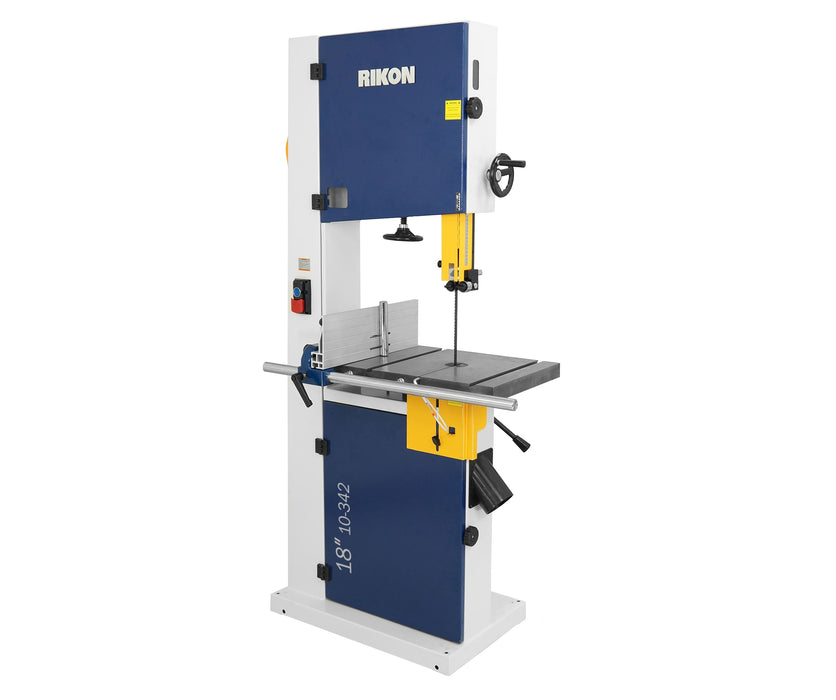

RIKON 18″ Deluxe Band Saw
By Rikon
SKU 10-342
Model Number: RIK10342
Original price
$2,999.99
-
Original price
$2,999.99
Original price
$2,999.99
$2,999.99
-
$2,999.99
Current price
$2,999.99
18” Bandsaw #10-342 is an entry level machine to this larger capacity category. Ample 2 HP motor provides plenty of power behind the single 3,200 ft/min blade speed of the machine. Cast iron table includes a single ‘T’ slot for use with miter gauges (available separately) or other cutting jigs. Includes 120V electrical outlet on rear of machine. Machine requires 4-wire electrical plug.
- 13″ Cutting Capacity.
- Patented – Spring Loaded Tool-less Guide System.
- Patented – Quick Adjust 6″ Tall Fence System.
- Patented – Quick Adjust Trunnion System.
- Quick Release Blade Tension.
- Hinged Blade Guard With Sight Window.
SPECIFICATIONS
| Motor Horsepower | 2 HP TEFC |
| Motor Amps | 7.5 |
| Motor Volts | 220V, 60Hz, 1Ph |
| Blade Speed | 3,280 FT/MIN |
| Cutting Capacity Height | 13” |
| Cutting Capacity Width | 17-1/2” |
| Blade Width | 1/4” – 1-3/8” |
| Blade Length | 153” |
| Table Size | 21-1/2” x 15-3/4” |
| Table Left Side Extension | 4-3/8” x 15-3/4” |
| Table Left Tilt | -10° |
| Table Right Tilt | 45° |
| Table Miter Gauge “T” Slot | (2) 3/4” x 3/8” |
| Table Height to Floor | 35-1/2” |
| Table Fence Size | 18-3/4” x 1-3/4” x 6” |
| Wheel Material | Cast Iron |
| Blade Guide Type | Tool-less |
| Table Trunnion | Cast Iron |
| Overall Height | 72-7/8” |
| Overall Width | 38-1/2" |
| Overall Depth | 28-1/8” |
| Overall Base Size | 29-5/16” x 18-1/8” |
| Dust Port | 2@4” |
| Overall Net Weight | 324 lbs. |
| Warranty | 5 Years |
