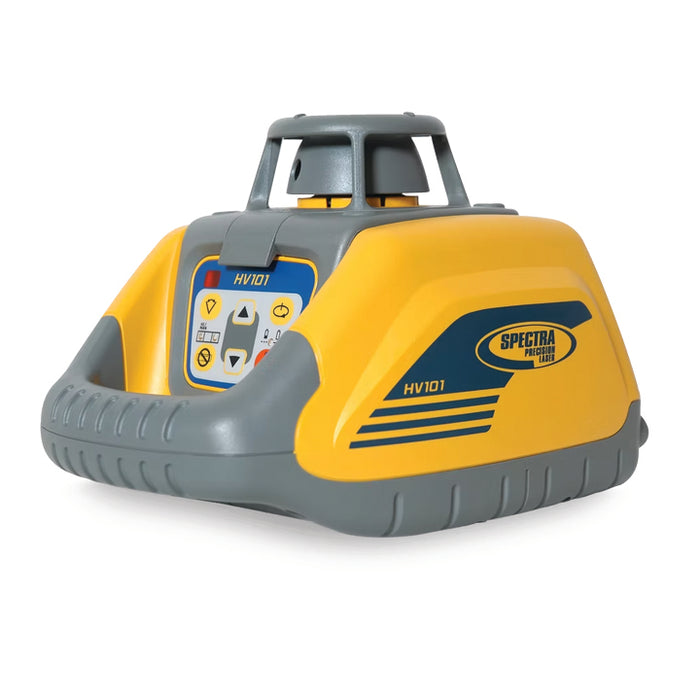

SPECTRA HV101 Interior Laser
Model Number: SPTHV101
SO MUCH POWER IN SUCH A SMALL PACKAGE.
The automatic, self-leveling Spectra Precision® HV101 Interior Laser is a professional tool with an economical price tag. The HV101 laser is capable of handling a wide variety of horizontal, vertical, and plumb applications. It is designed for both interior applications and exterior applications with a receiver.
-
Automatic self-leveling.
-
Accuracy 1/8 inch @ 100 ft (3mm @ 30 m).
-
Working range of 1,150 ft (350 m) diameter.
-
Simple operation for quick start up.
-
Height Of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings.
-
Single axis manual slope mode (with RC601 Remote Control).
-
Rotor cage can be removed for precise 360°coverage.
-
Complete kit available and fits in one case with tripod and grade rod.
-
Extremely durable and portable.
-
2 years warranty.
SPECIFICATIONS
| Laser Source | <5 mW @ 635 nm, Class 3A/3R |
| Laser Accuracy | ±1/8" at 100' (±3 mm at 30 m) |
| Operating Range | 100' (30 m) minimum visual |
| Operating Range | 1,150' (350 m) diameter with receiver |
| Self-Leveling Range | ±5 degrees |
| Compensation Method | Electronic self-leveling |
| Power Source | 2 x “D” Alkaline Batteries |
| Battery Life | 50 hours Alkaline; 45/25 hours user provided Ni-MH/Ni-CD |
| Battery Status LED | Flashing red LED |
| Rotation Speed | Four preset speeds 0, 50, 200, 600 RPM |
| Scan Angles | Five preset angles 3°, 8°, 45°, 90°, 180° |
| Out-Of-Level Warning | Rotor stops, laser shuts off, red out-of-level LED flashes |
| Operating Temperature | 23 °F to 113 °F (-5 °C to 45 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Warranty | 2 Years |
| Water Resistant | Yes, and IP54 sealing |
| Size |
8.5L X 6.7W X 6.0H in (21.6L X 17.1W X 15.2H cm) |
| Weight |
3.3 lbs (1.5 kg) |
