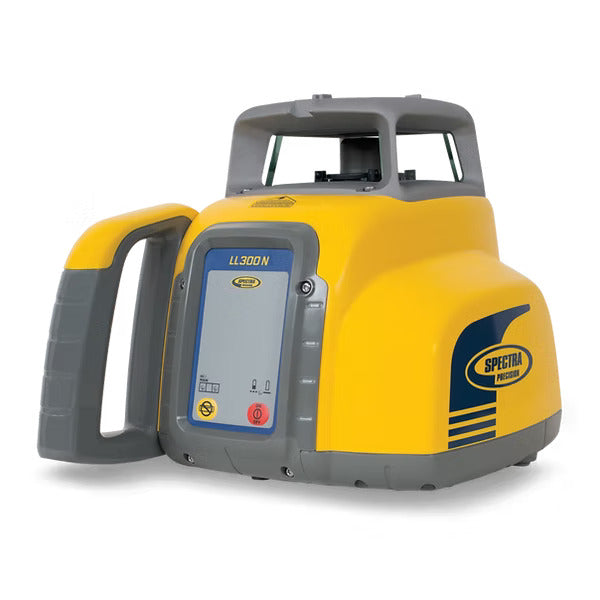

SPECTRA LL300N Laser Level

SKU LL300N

Model Number: SPTLL300N

Original price $0
Original price $903.70 - Original price $903.70
Original price
Current price $903.70
$903.70 - $903.70
Current price $903.70

THE SPECTRA LL300N LASER LEVEL IS BUILT TO PERFORM IN ROUGH ENVIRONMENTS.

The Spectra LL300N Laser Level features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop.

  • INCREASES PRODUCTIVITY with fast setups, fewer mechanical parts, and automatic self-leveling.
  • ONE PERSON ELEVATION CONTROL with 1,650 ft (500 m) diameter range increases productivity.
  • MAINTAINS PERFORMANCE even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating.
  • DURABLE DESIGN reduces downtime due to drops and tripod tip-overs.
  • INCREASES FLEXIBILITY with remote control slope option.
  • COMES STANDARD with HL450 digital readout receiver and other configurations are available.
  • KITS AVAILABLE with system case which contain laser, receiver, tripod and grade rod.



SPECIFICATIONS

Laser Source 650 nm, Class 2, <3,4mW
Laser Accuracy ±3/32" at 100' (±2.2 mm at 30 m)
Compensation Method Electronic self-leveling / ±5 degrees
Operating Range 1,650' (500 m) diameter
Out Of Level Warning Rotor stops, laser shuts off, red out-of-level LED flashes
Rotation Speed 600 RPM
Operating Temperature -4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C)
Battery Life Rechargeable - 45 hours, Alkaline - 90 hours
Size 10.7L X 7.7W X 7.9H in (27.2L X 19.7W X 20.1H cm)
Dust & Waterproof Yes, IP 66
Weight 5.9 lbs (2.7 kg)
Low Voltage Indicator LCD battery indicator
Warranty 5 Years
