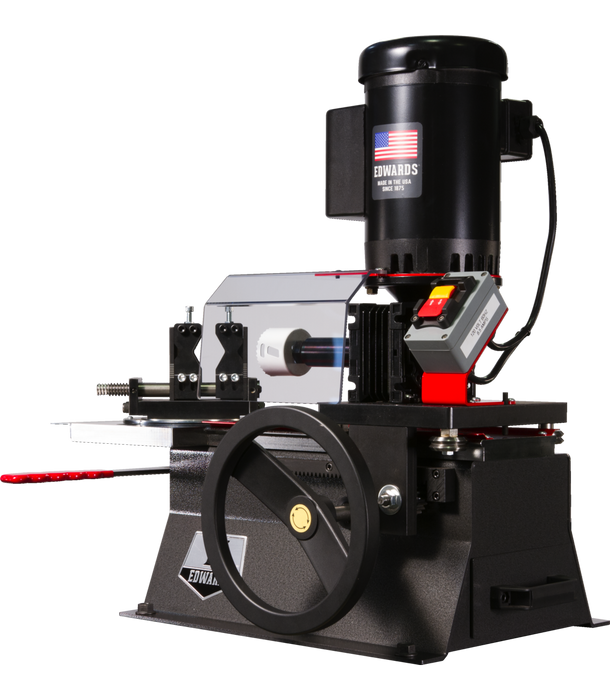

EDWARDS Hole Saw Notcher
By Edwards
SKU HS1000
Model Number: EDWHS1000
Original price
$3,800.99
-
Original price
$3,800.99
Original price
$3,800.99
$3,800.99
-
$3,800.99
Current price
$3,800.99
The Edwards Hole Saw Notcher is designed to take the guess work out of fabricating round tube or pipe. Multiple scales and alignment guides make repeatable notching simple. Made with heavy duty construction, the steel base can be bolted to any work table or our accessory Deluxe Stand. A must have for any fabricator, our Hole Saw Notcher features a large capacity vise, multiple alignment tools and a powerful 3/4 HP motor to handle any notching projects.
- Chip guards and downward gear rack prevent chip interference.
- Compatible with most commercially available hole saws.
- Integrated base plate guide rails provide smooth travel.
- Integrated drawer is perfect for tool storage or extra Hole Saws.
- Multi-positional vice provides 360° rotation for maximum notching range.
- Safety guarding protects all moving parts.
- Safety Locking ON/OFF Switch.
- Vertical motor orientation reduces vibration.
- Vice capable of offset notching with up to 3/4" of vertical movement.
| Amps | 7 |
|---|---|
| Angle Adjustment | 180.0000 |
| Cutting RPM | 233.0000 |
| Gross Weight (Lbs) | 220 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Net Weight (Lbs.) | 220 |
| Offset Notching Range (In.) | 3/4 |
| Overall Dimensions (L x W x H) (In.) | 31 x 21 x 34 |
| Product Dimensions (In.) | 29 x 19 x 28-1/2 |
| Sch. 40 Pipe Notching Capacity (In.) | 3/8 - 2-1/2 |
| Tube Notching Capacity OD (In.) | 5/8 x 3 |
| Weight (Lbs.) | 220 |
