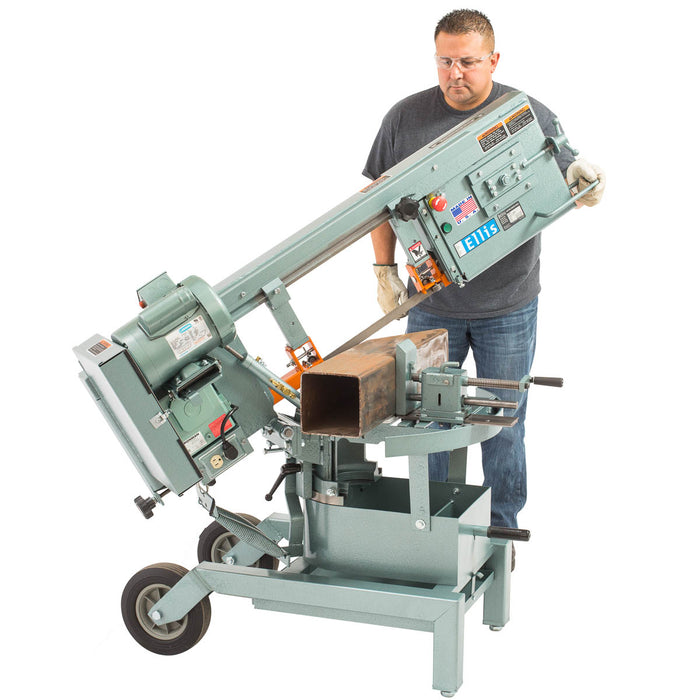

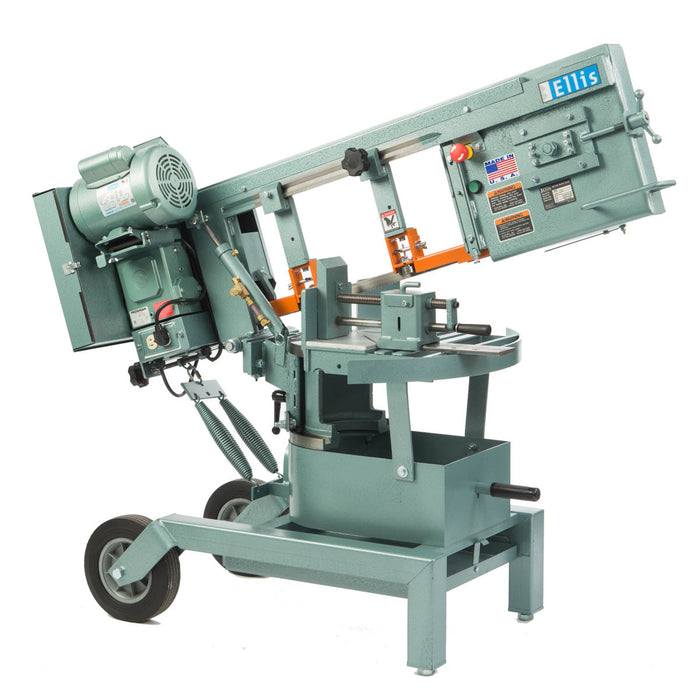

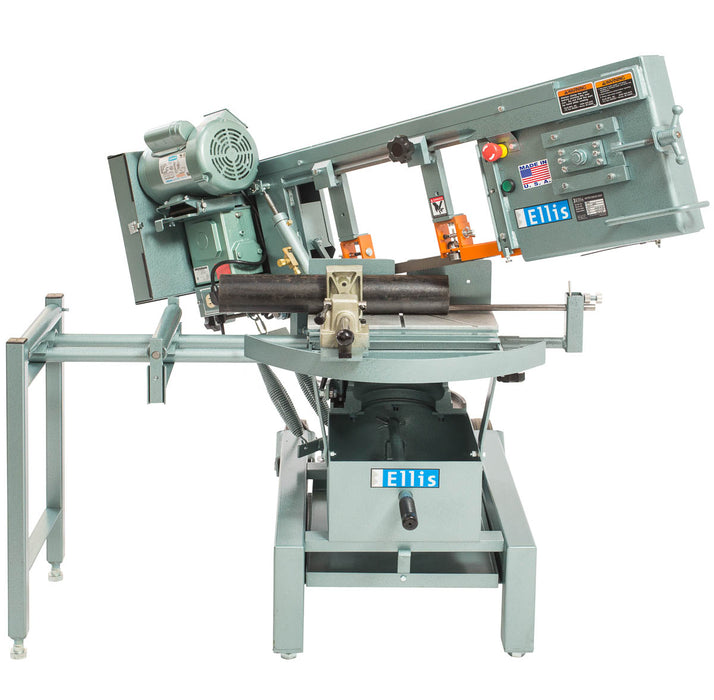

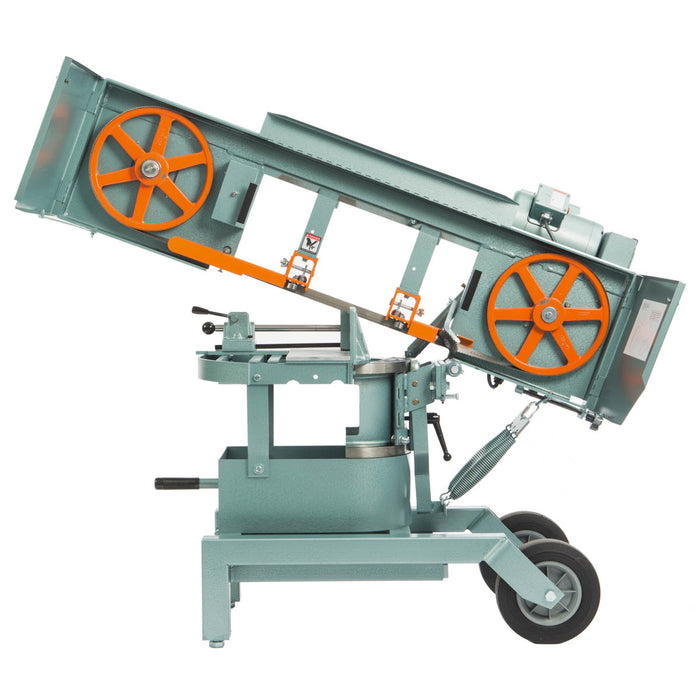

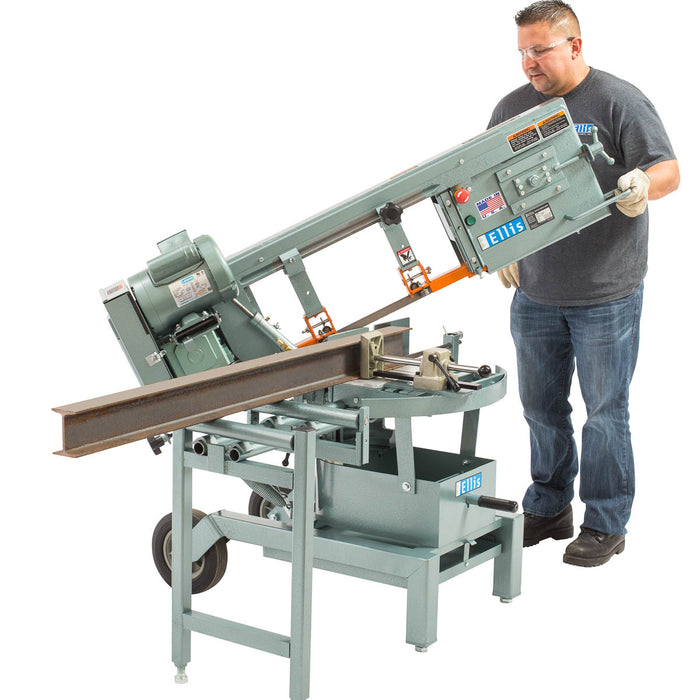

ELLIS 1600 Mitre Band Saw
By Ellis
SKU 1600
Model Number: ELL1600
Original price
$4,050.00
-
Original price
$4,050.00
Original price
$4,050.00
$4,050.00
-
$4,050.00
Current price
$4,050.00
- Head of band saw moves left or right for angle cutting.
- Built-in protractor for fast and accurate selection of angles.

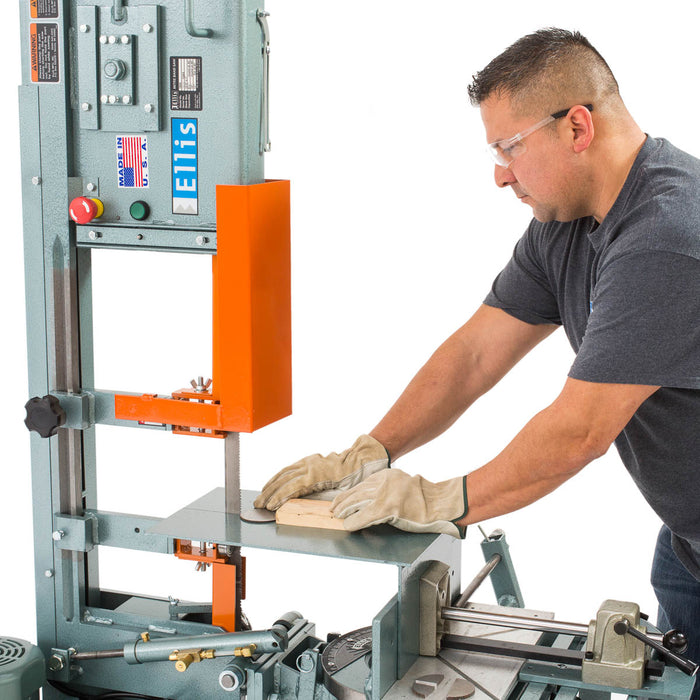

- One-step conversion from horizontal to vertical band saw.
- Stock remains in one position for all cuts.
- Portable-this band saw moves easily to the job site.
| Capacity (90° & 45°) |
10” Round at 90° 8” Pipe at 90° 11” Flat at 90° 6-7/8” Round at 45° 6” Pipe at 45° 7-1/4” Flat at 45° 10” H x 8” W at 90° 8” H x 6” W at 45° |
| Blade Speeds (3) | 55-115-230 FPM |
| Blade Size | 10’0” x 1” |
| Feed Control | Hydraulic Adjusting |
| Vise | Quick Adjusting Camlock |
| Shut Off | Automatic |
| Motor – Standard | 1 H.P. 110/220 Volt Single Phase |
| Optional | 3 PH 220-440-460-480-575 |
| Portable | 10” Wheels-Standard |
| Shipping Weight | 525 lbs. |
| Size | Table Height 27” Length 59” Width 24-3/4” Height 47” |
| Sealed Oil Bath Worm Gear | Standard |
| Removable Chip Tray | Standard |
| Construction | Heavy Steel; Welded & Machined for Accuracy & Durability |
