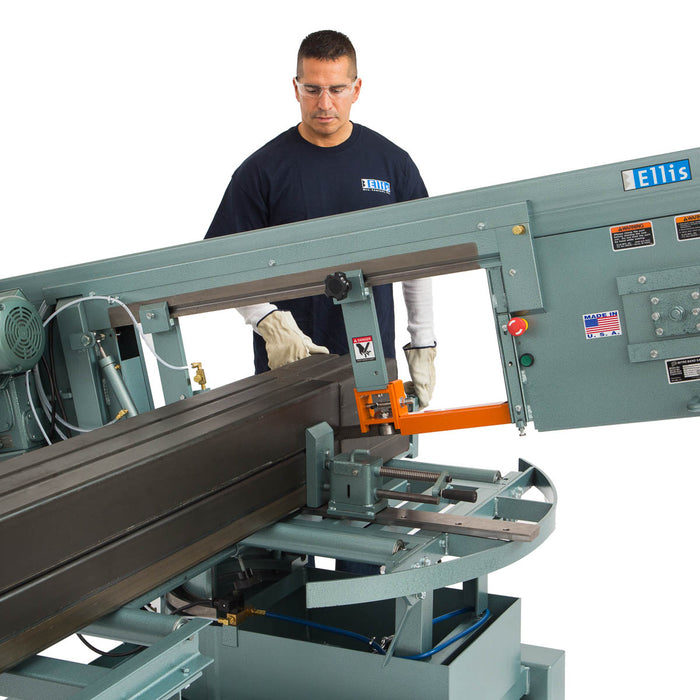

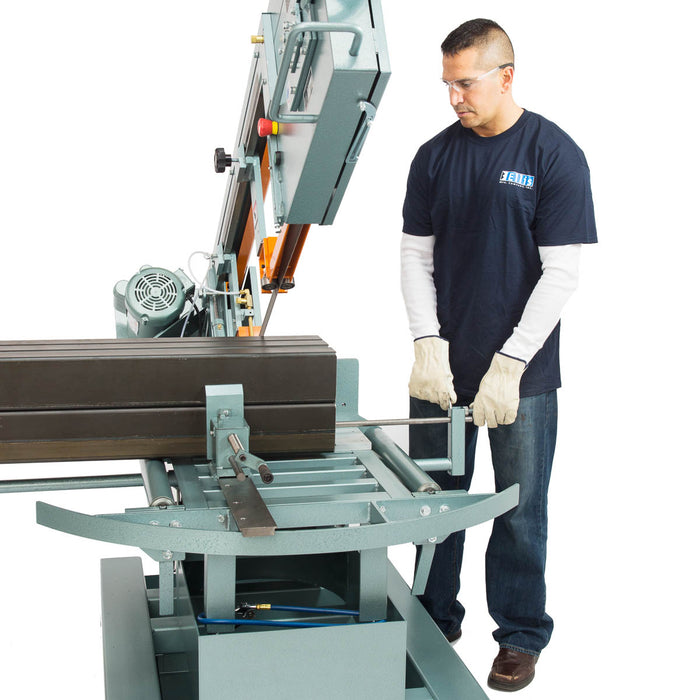

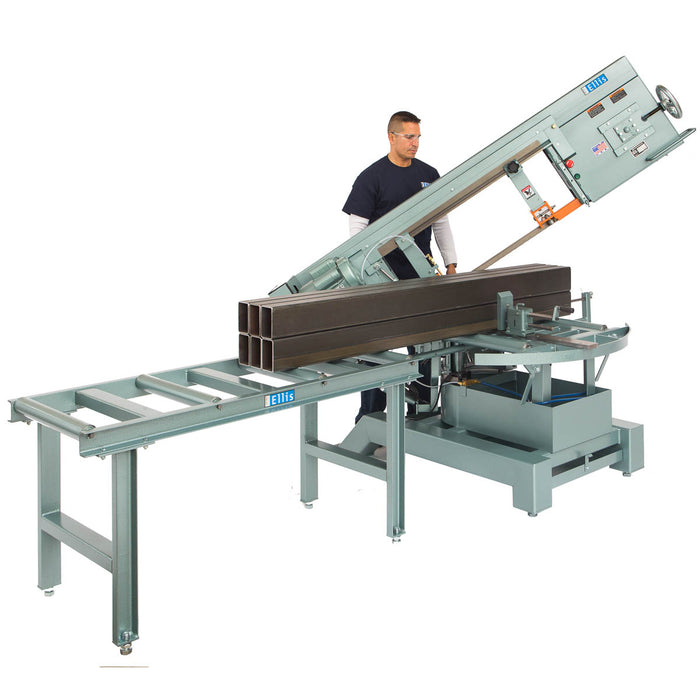

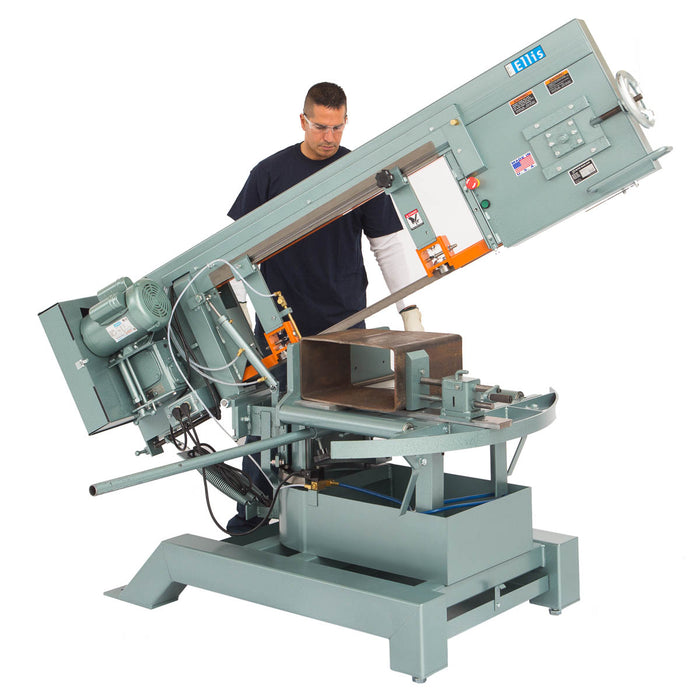

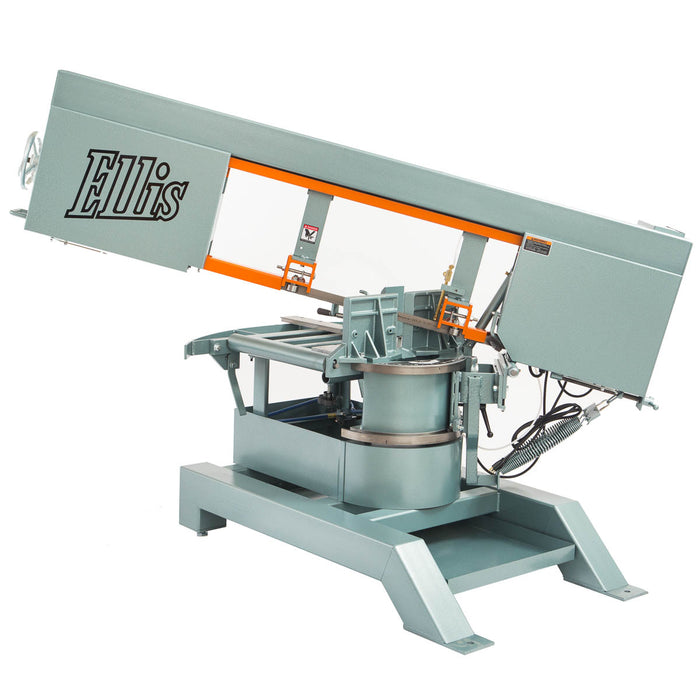

ELLIS 4000 Mitre Band Saw
By Ellis
SKU 4000
Model Number: ELL4000
Original price
$7,299.99
-
Original price
$7,299.99
Original price
$7,299.99
$7,299.99
-
$7,299.99
Current price
$7,299.99
- Head of band saw moves left or right for angle cutting.
- Built-in Protractor for fast and accurate selection of angles.
- Stock remains in one position for all cuts.
| Capacity (90° & 45°) |
13-1/2” Round at 90° 12” Pipe at 90° 22” Flat at 90° 13” H x 16” W Tube at 90° 13-1/2” Round at 45° 12” Pipe at 45° 14” Flat at 45° 13” Square Tube at 45° |
| Blade Speeds (variable) | 60-180 FPM |
| Blade Size | 15’0” x 1-1/4” |
| Feed Control | Hydraulic Adjusting |
| Vise | Quick Adjusting Screw Type |
| Shut Off | Automatic |
| Motor – Standard | 2 H.P. 220 Volt Single Phase |
| Optional | 3 PH 220-440-460-480-575 |
| Shipping Weight | 1250 lbs. |
| Size | Table Height 29-3/8” Length 90” Width 43-1/4” Height 50” |
| Construction | Heavy Steel; Welded & Machined for Accuracy & Durability |
| Sealed Oil Bath Worm Gear | Standard |
| Removable Chip Tray | Standard |
| Air System | Standard |
| Table Back 7-1/4” | Standard |
