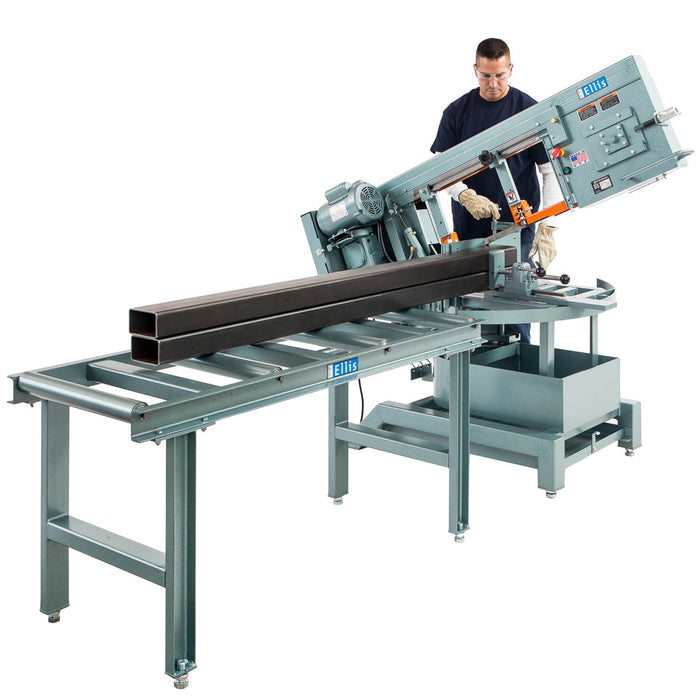

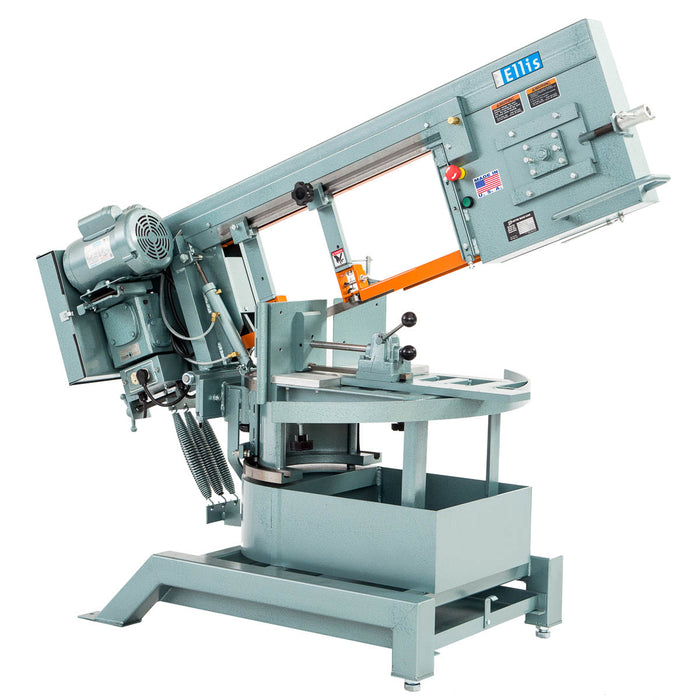

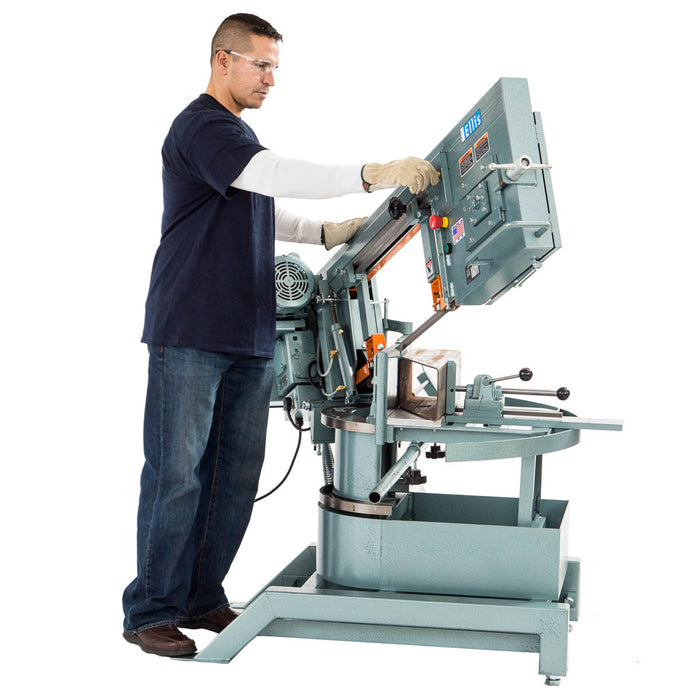

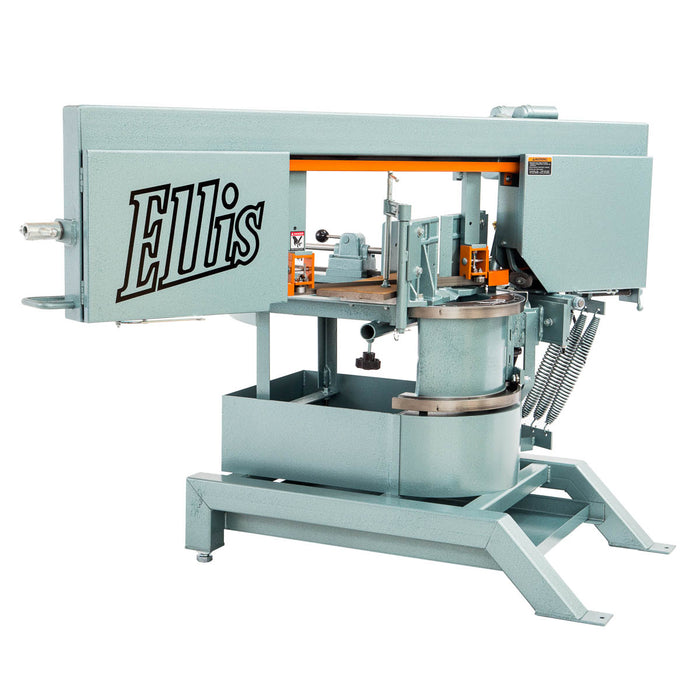

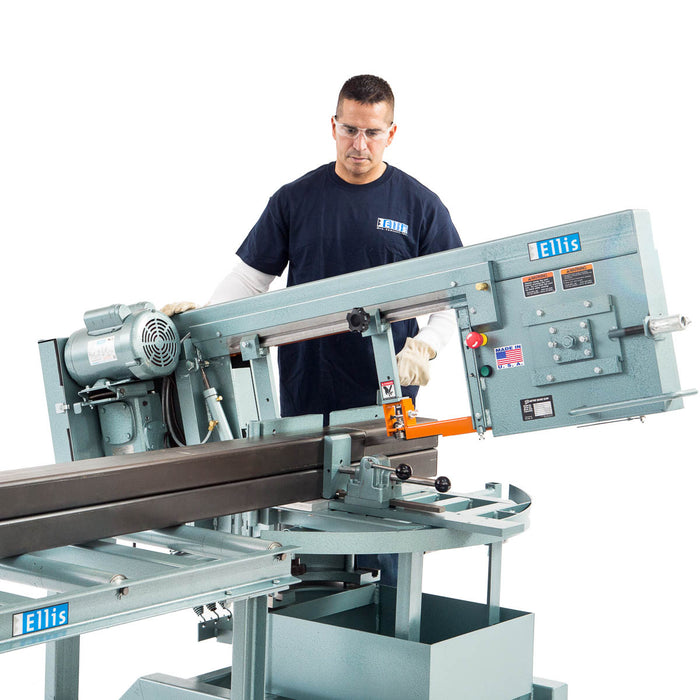

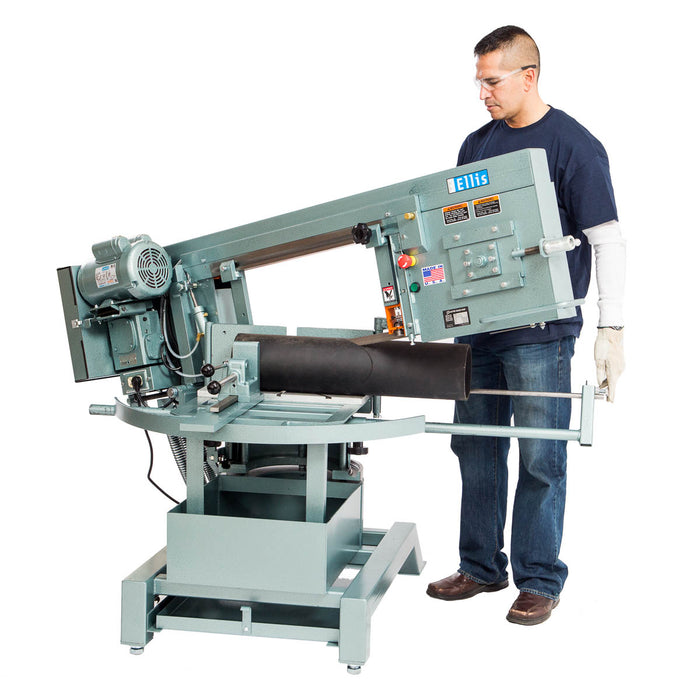

ELLIS 2000 Mitre Band Saw
By Ellis
SKU 2000
Model Number: ELL2000
Availability Notice:
Availability to purchase does not guarantee immediate stock. Our site displays items we stock along with items we have the access to source for our customers. Some items may have extended lead times. Questions about availability? Contact our team before ordering.
- Head of band saw moves left or right for angle cutting.

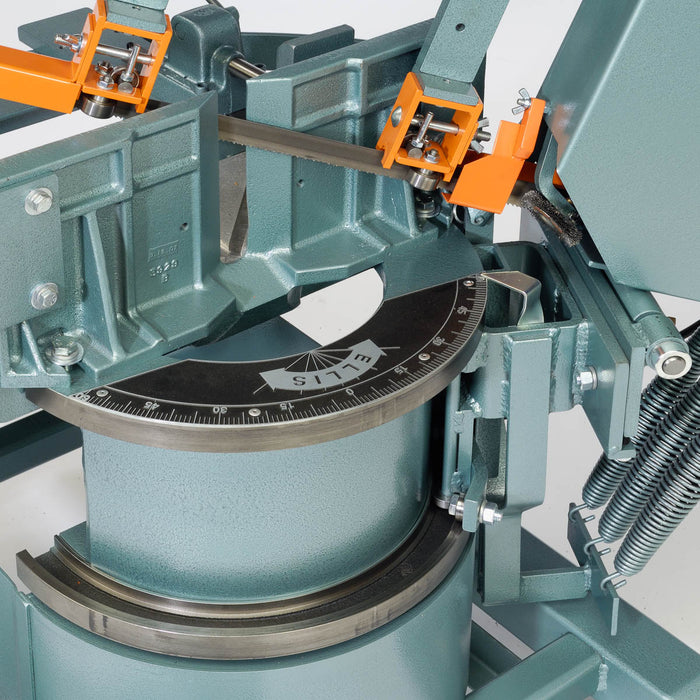

- Built-in Protractor for fast and accurate selection of angles.
- Stock remains in one position for all cuts.
- Mitres 60° both ways.
| Capacity (90° & 45°) |
11” Round at 90° 10” Pipe at 90° 17” Flat at 90° 11” H x 13” W at 90° 11” Round at 45° 10” Pipe at 45° 11” Flat at 45° 9” H x 11” W at 45° |
| Capacity (60°) | “6” W x 9” H at 60° 6” Square at 60° 7” wide x 2” thick – Flat Stock at 60° 6” pipe (6-7/8” O.D.) at 60° |
| Blade Speeds (3) | 60-115-230 FPM |
| Blade Size | 12’0” x 1” |
| Feed Control | Hydraulic Adjusting |
| Vise | Quick Adjusting Camlock |
| Shut Off | Automatic |
| Motor – Standard | 1-1/2 H.P. 220 Volt Single Phase |
| Optional | 3 PH 220-440-460-480-575 |
| Shipping Weight | 800 lbs. |
| Size | Table Height 28-1/8” Length 72” Width 38-1/4” Height 47” |
| Sealed Oil Bath Worm Gear | Standard |
| Removable Chip Tray | Standard |
| Construction | Heavy Steel; Welded & Machined for Accuracy & Durability |
