DEWALT 20V MAX* Hydraulic Knockout Tool Kit with 1/2'' - 4'' Punches and Dies

DEWALT DCE600D1K4 20V MAX* Hydraulic Knockout Tool Kit: 1/2"-4" Precision Punching

By DeWalt
SKU DCE600D1K4

Model Number: DEWDCE600D1K4

$2,649.00 - $2,649.00
$2,649.00
$2,649.00 - $2,649.00
$2,649.00

Master Conduit Runs with the DEWALT 20V MAX* Hydraulic Knockout Kit DCE600D1K4

Electricians and contractors know that clean, accurate knockouts are crucial for efficient and compliant electrical installations. The DEWALT 20V MAX* Hydraulic Knockout Tool Kit (DCE600D1K4) redefines precision and power on the job site, delivering up to 11 tons of force to punch through mild and stainless steel with ease. Engineered for versatility in the tightest spaces, this kit provides a complete solution from 1/2-inch to 4-inch conduit, ensuring every hole is perfectly aligned and finished, reducing rework and boosting productivity.

  • /11 Tons of Force Output: Effortlessly tackle heavy-duty applications in up to 10 gauge mild steel and 12 gauge stainless steel, ensuring robust performance for demanding tasks.
  • /Magnetic Die Retention: Embedded magnets in the dies securely attach to mild steel, providing superior punch alignment and reducing the chance of off-center cuts.
  • /Optimal Maneuverability: The inline body and 180° rotatable head allow for maximum clearance and easy access in confined work environments, crucial for complex installations.
  • /Threadless Draw Stud Connection: Simplifies punch and die setup, allowing for quick and easy tool preparation without the added weight of the main unit.
  • /Integrated Jobsite Illumination: A bright LED ring illuminates the work area, enhancing visibility and accuracy even in poorly lit conditions.
TECHNICAL SPECIFICATIONS
Tool Type Hydraulic Knockout Tool
Power Source 20V MAX*
Max Force Output 11 Tons
Punch Capacity 1/2" - 4"
Material Capacity (Mild Steel) Up to 10 Gauge
Material Capacity (Stainless Steel) Up to 12 Gauge
Head Rotation 180°
Tool Connect™ Compatible Yes (Chip included in kit)

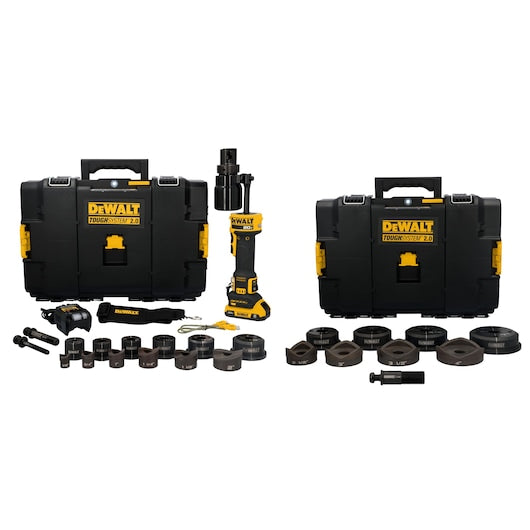

WHAT'S IN THE BOX

This comprehensive kit comes packed with everything you need to get the job done right, including the powerful DEWALT 20V MAX* Hydraulic Knockout Tool, a 2.0Ah Li-Ion battery, and charger to keep you powered up. You'll find a complete set of 1/2-inch to 4-inch knockout punches and dies, along with essential draw studs, a shoulder strap for easy portability, a USB-C cable, and a Tool Connect™ Chip for jobsite management. Everything is organized and protected within two durable TOUGHSYSTEM® 2.0 Cases.

  • /(1) 20V MAX* Hydraulic Knockout Tool (DCE600)
  • /(1) DCB203 2Ah Li-Ion Battery
  • /(1) Charger
  • /(1) 7/16" Knockout Draw Stud (DCE600DS716)
  • /(1) 3/4” Knockout Draw Stud (DCE600DS34)
  • /(1) 1-1/8” Knockout Draw Stud (DCE600DS118)
  • /(1) Shoulder Strap
  • /(1) USB-C Cable
  • /(1) Tool Connect™ Chip
  • /(2) TOUGHSYSTEM® 2.0 Cases
  • /(1) 1/2” Knockout Punch (DCE600012P)
  • /(1) 1/2” Knockout Die (DCE600012D)
  • /(1) 3/4” Knockout Punch (DCE600034P)
  • /(1) 3/4” Knockout Die (DCE600034D)
  • /(1) 1” Knockout Punch (DCE600100P)
  • /(1) 1” Knockout Die (DCE600100D)
  • /(1) 1-1/4” Knockout Punch (DCE600114P)
  • /(1) 1-1/4” Knockout Die (DCE600114D)
  • /(1) 1-1/2” Knockout Punch (DCE600112P)
  • /(1) 1-1/2” Knockout Die (DCE600112D)
  • /(1) 2” Knockout Punch (DCE600200P)
  • /(1) 2” Knockout Die (DCE600200D)
  • /(1) 2-1/2” Knockout Punch (DCE600212P)
  • /(1) 2-1/2” Knockout Die (DCE600212D)
  • /(1) 3” Knockout Punch (DCE600300P)
  • /(1) 3” Knockout Die (DCE600300D)
  • /(1) 3-1/2” Knockout Punch (DCE600312P)
  • /(1) 3-1/2” Knockout Die (DCE600312D)
  • /(1) 4” Knockout Punch (DCE600400P)
  • /(1) 4” Knockout Die (DCE600400D)
